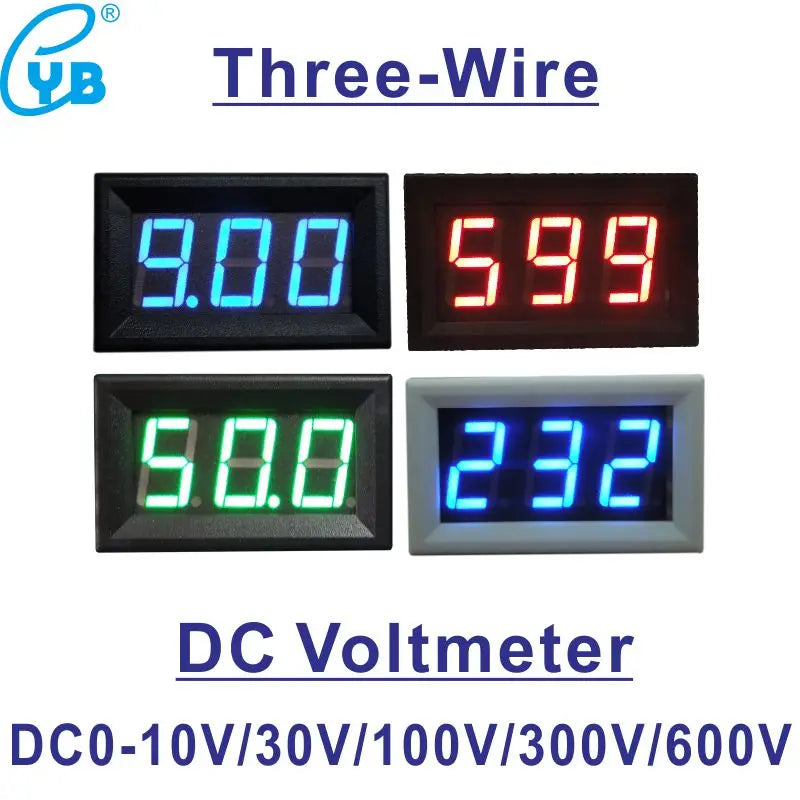

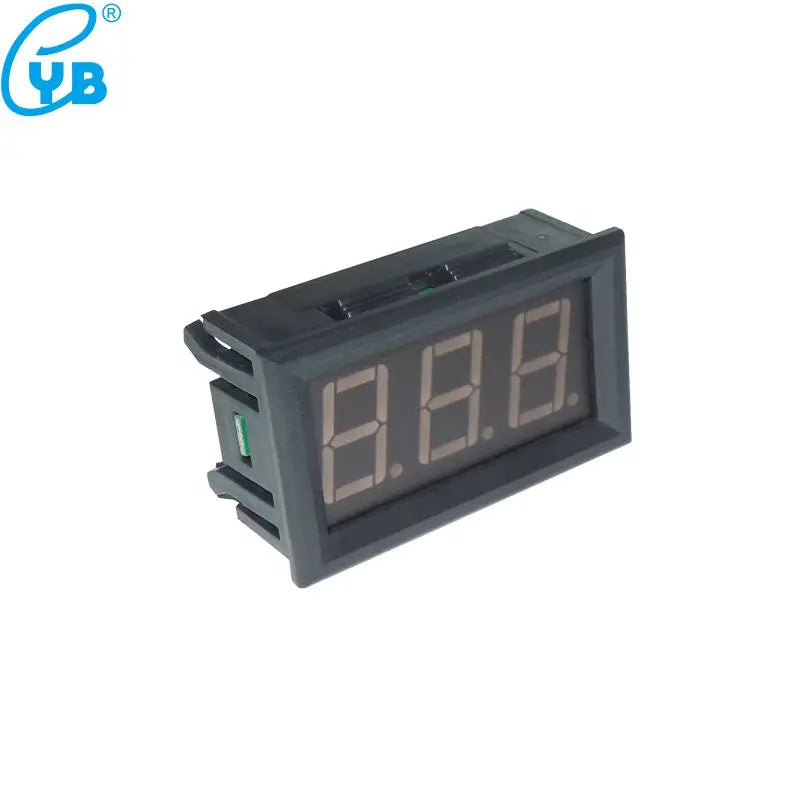

YB27 Three Wires LED Digital Voltage Meter Voltmeter DC 0-10V 0-30V 0-100V 0-300V 0-600V Voltage Detector Volt Panel MeterTester

€17,99 EUR

~~€0,00 EUR~~ €17,99 EUR

Sale Sold out

Taxes included.

Quantity

SPECIFICATIONS

Brand Name: YB

Hign-concerned Chemical: none

DIY Supplies: ELECTRICAL

Origin: Mainland China

Dimensions: 48*29*21mm

Operating Temperature: -10~50 degree

Accuracy Class: 1%+/-2 digits

Display Type: Digital Only

Power Supply: DC

Certification: none

Model Number: YB27

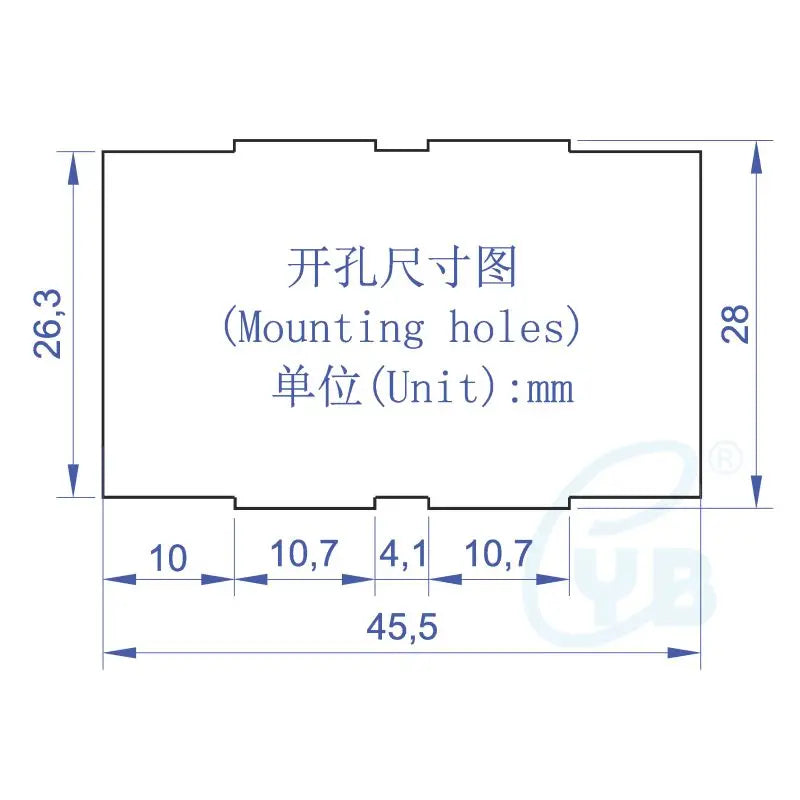

Mounting holes: 45.5*26.5mm

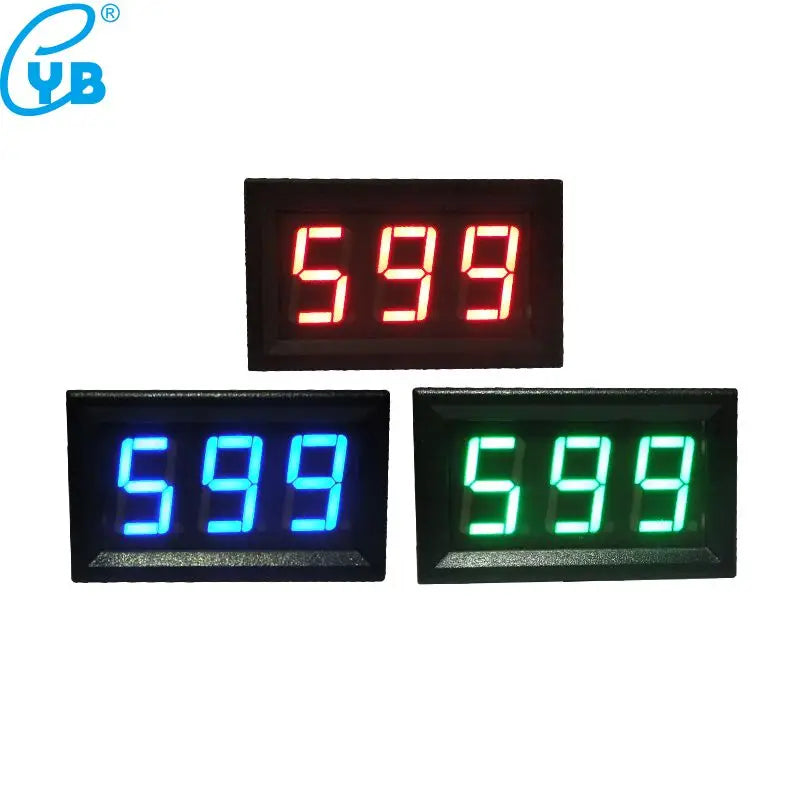

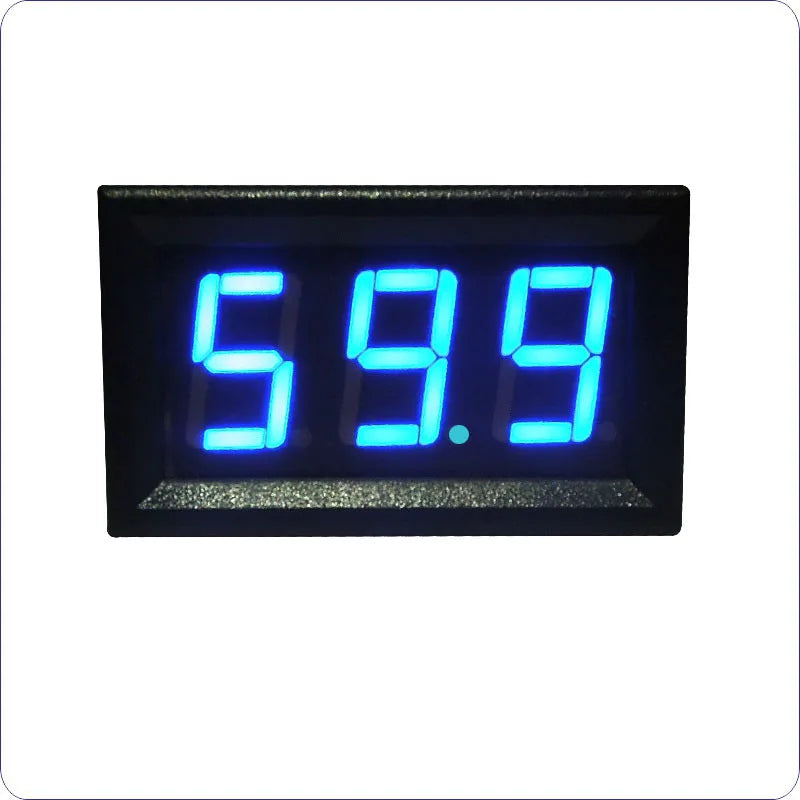

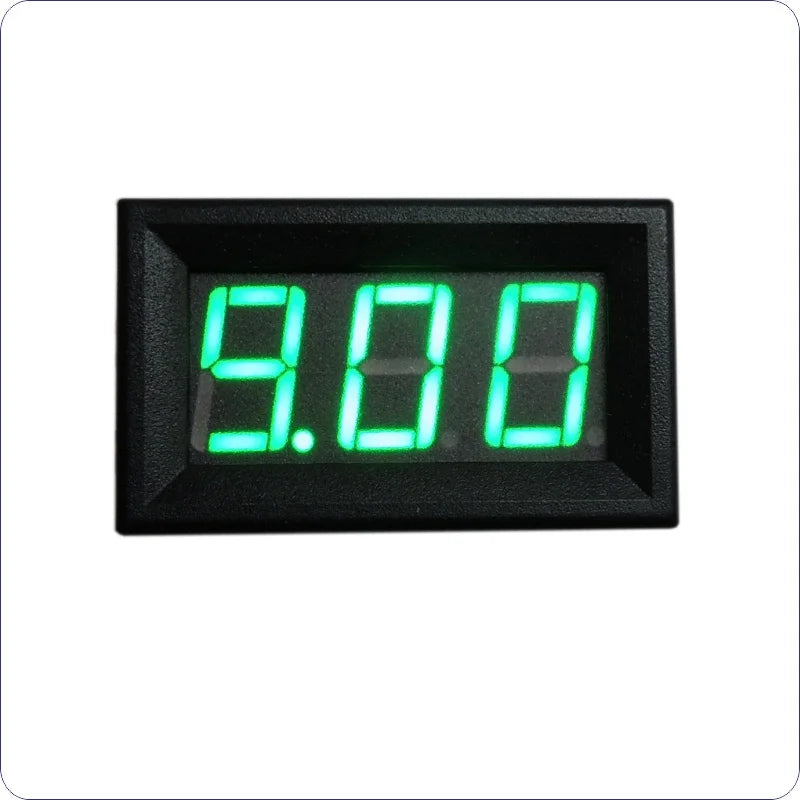

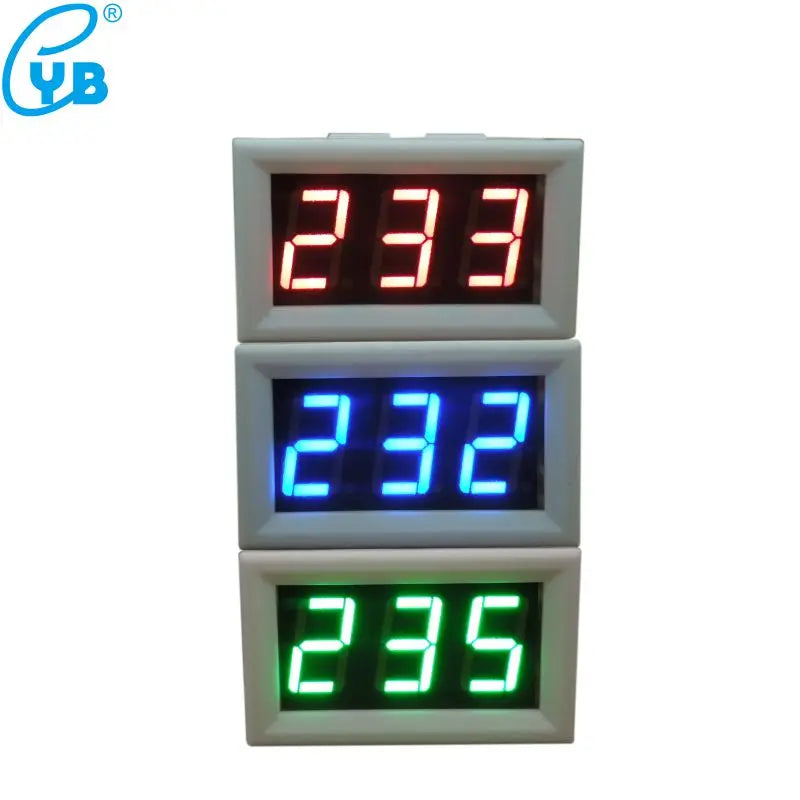

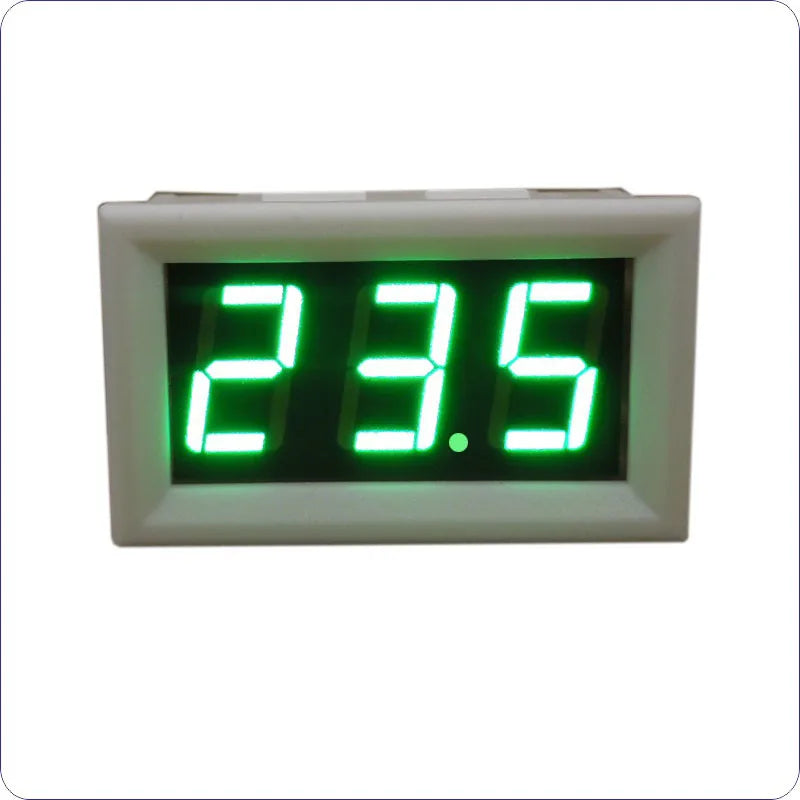

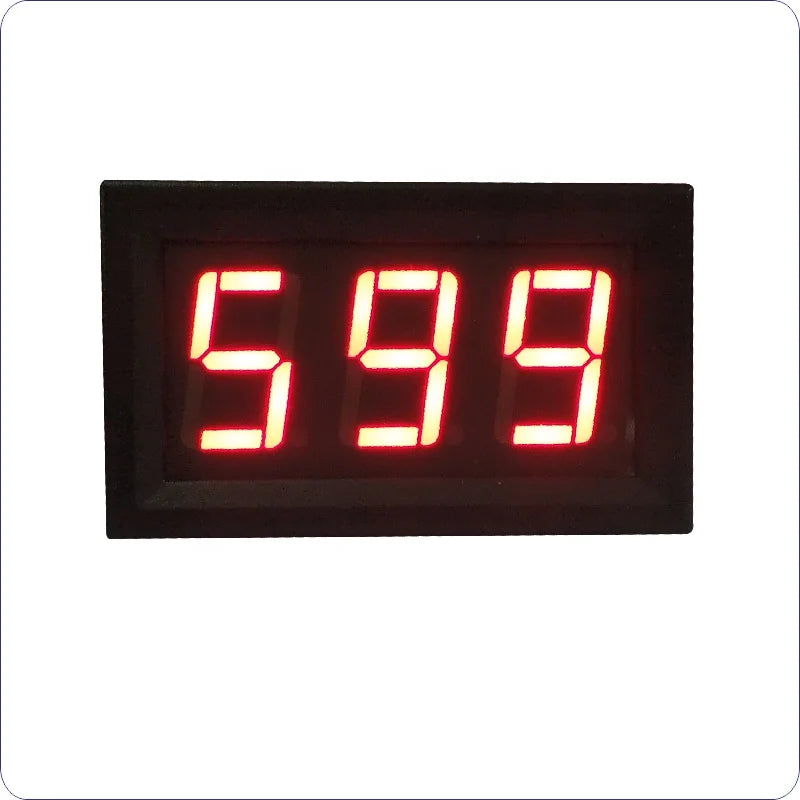

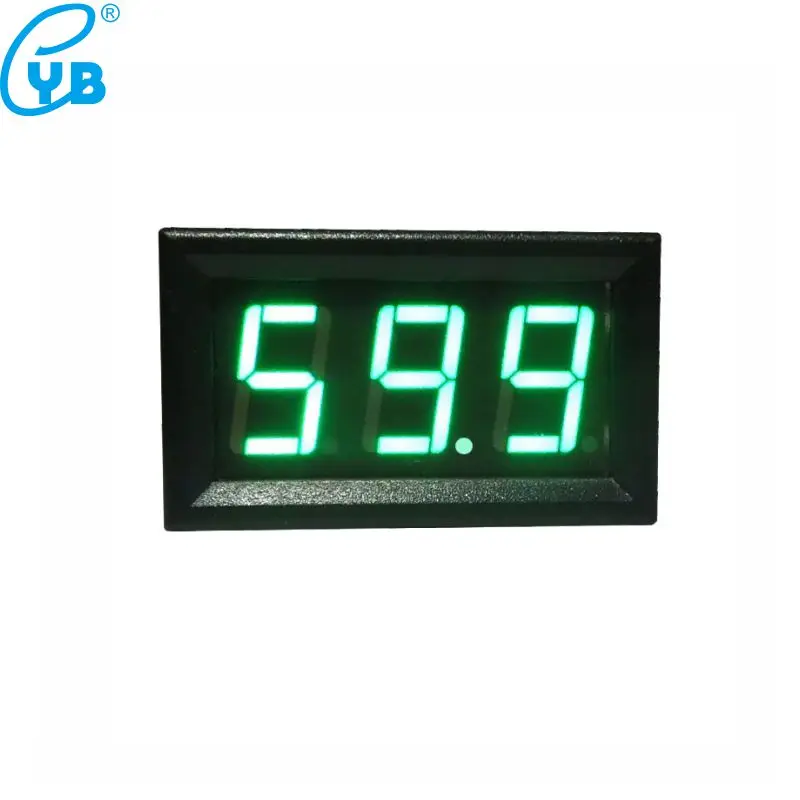

Display type: 0.56''LED with red/blue/green

Range: DC0-10V/30V/100V/300V/600V/1000V

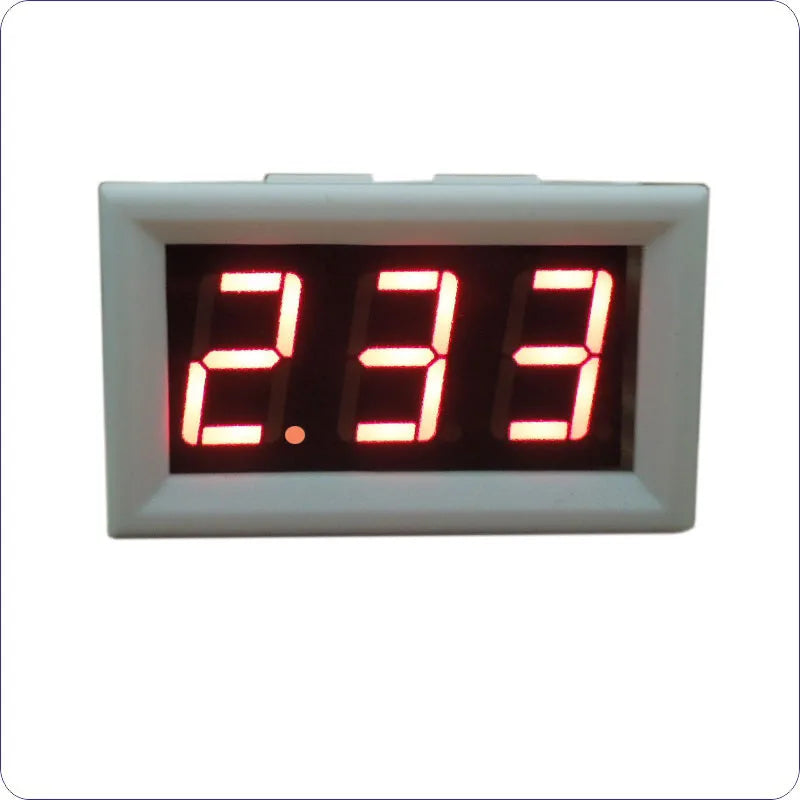

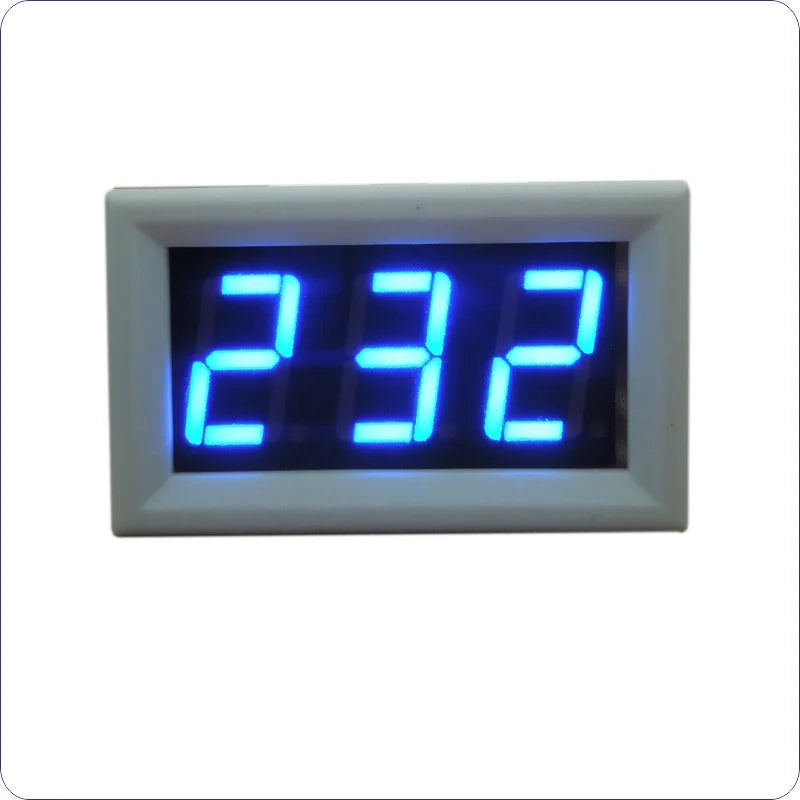

Cover color: Black/White

Working humidity: 10 ~ 80%

Working pressure: 80 ~ 106kPa

Feature: Three wires

YB27 Three Wires LED Digital Voltage Meter Voltmeter DC 0-10V 0-30V 0-100V 0-300V 0-600V 1000V Voltage Detector Volt Panel MeterTester

Attention:

The power supply voltage of the instrument should not exceed 30V, and enough safety voltage space should be reserved;
Due to the limited space of the sticker, some infrequent ranges will be manually rewritten on the sticker, please do not order if you mind it.
DC0- 100V, DC0-300V: When the measured value is less than 9.9V, only two digits will be displayed; when the measured value is greater than 9.9V, only three digits will be displayed.
DC0-600V: When the measured value is less than 99V, only two digits are displayed; when the measured value is greater than 99V, only three digits are displayed.

Technical Parameters:

Features:

With three wires,the wiring is simple, the installation is convenient.
When there is a small tolerance, you can calibrate by the potentiometer on the circuit board.
With polarity protection function for meter power supply.

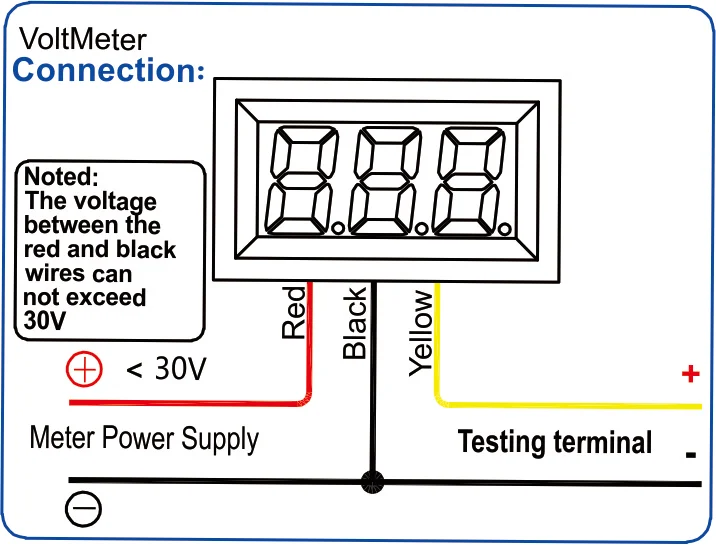

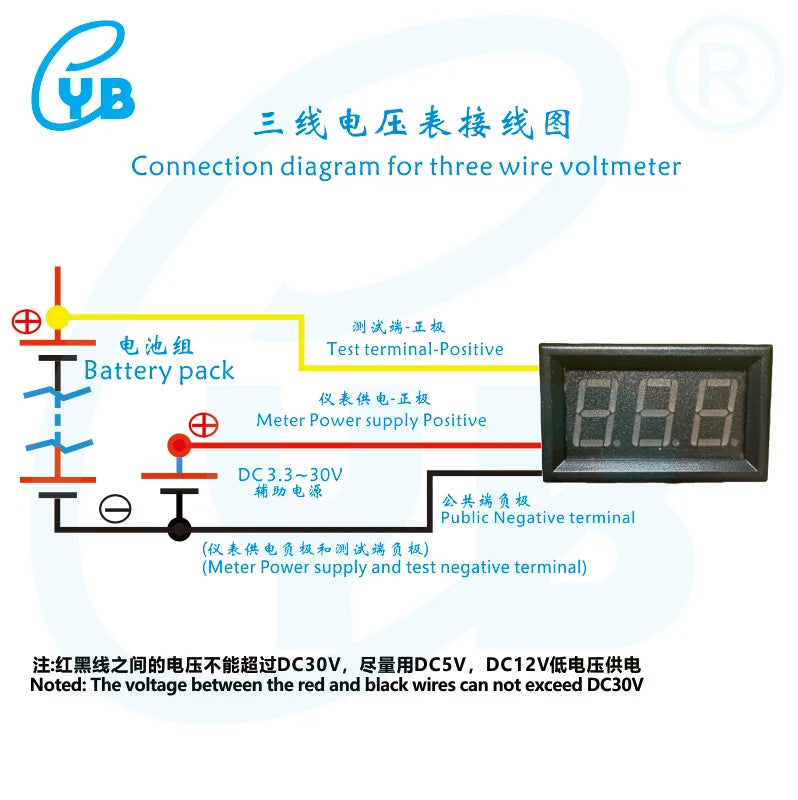

Connection Method:

With three wires, can be connected to cars,e-bikes or motorcycles.
Red wire: Power supply Positive terminal

Black wire: Public Negative terminal（Power supply and test negative terminal）

Yellow wire: Testing terminal

Working conditions:
