SPECIFICATIONS

Brand Name: NEW BAIGO

Origin: Mainland China

Model Number: Soda Terra DUO Art

Type: Air Systems

Material: Copper

Weight: 360G

Big Bottle Connector: W21.8-14 or CGA320 G3/4

Choice: yes

semi_Choice: yes

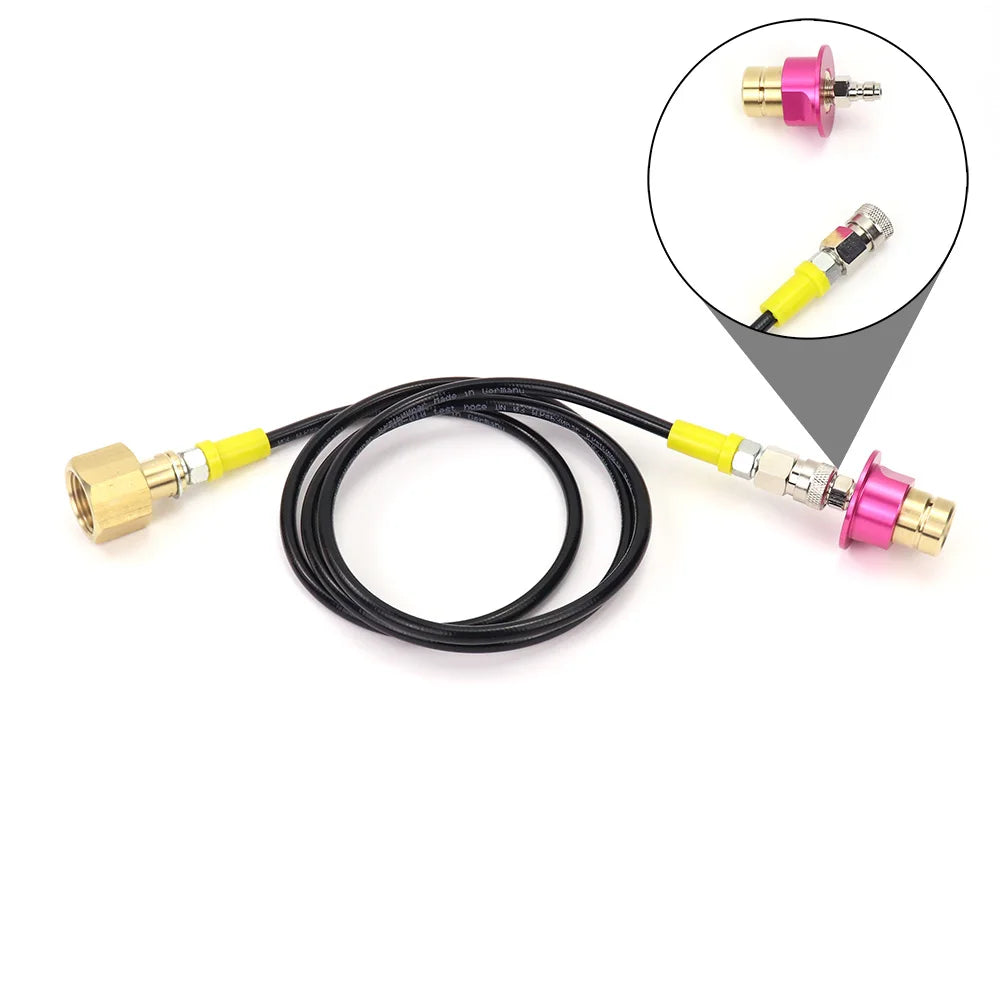

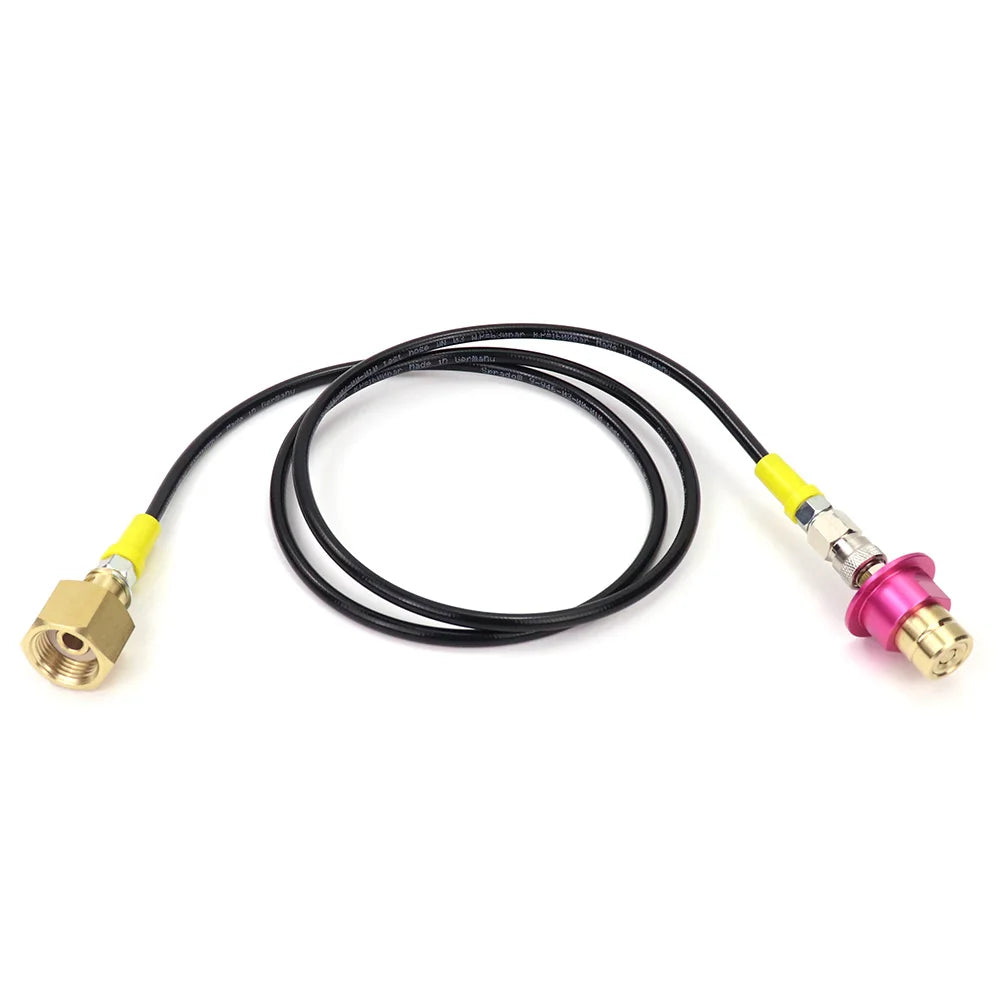

Soda Quick Connect Terra DUO Art to External Co2 Tank Adapter Hose

• Use For Soda Terra DUO Art Quick Connect Type Machines.

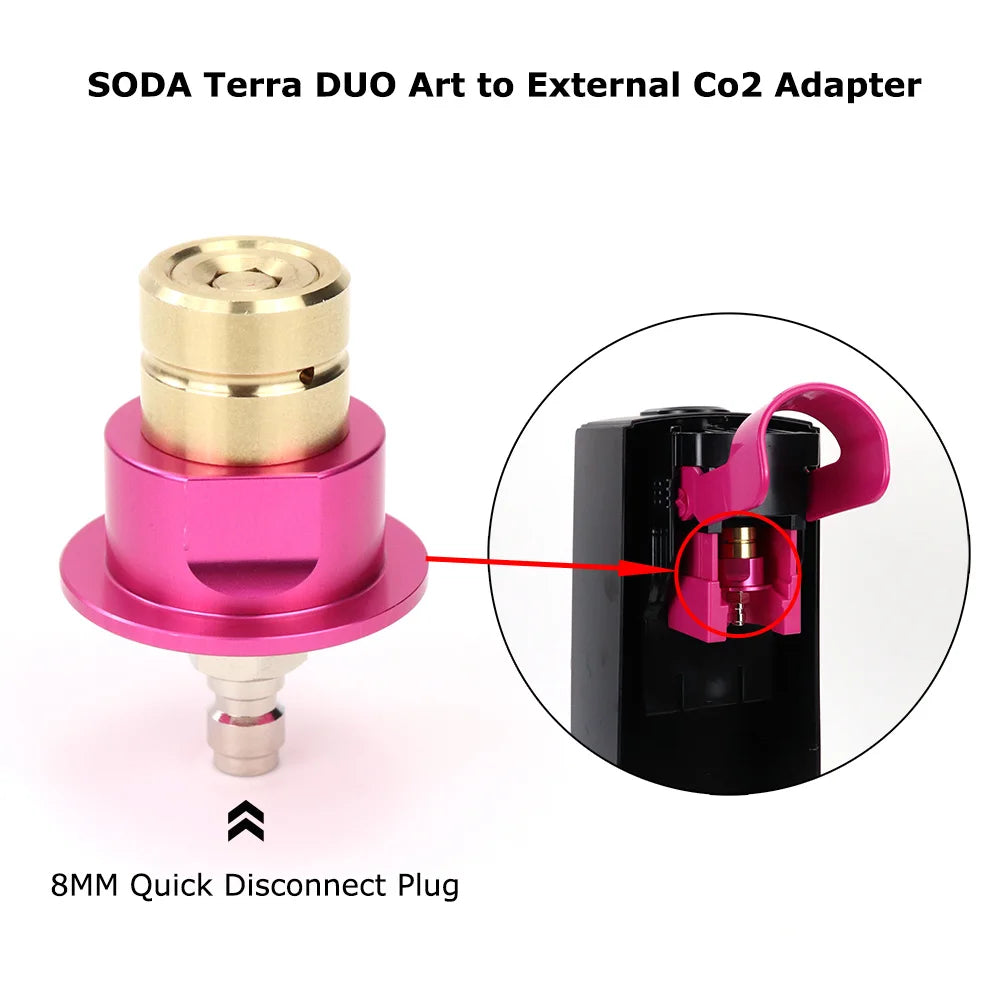

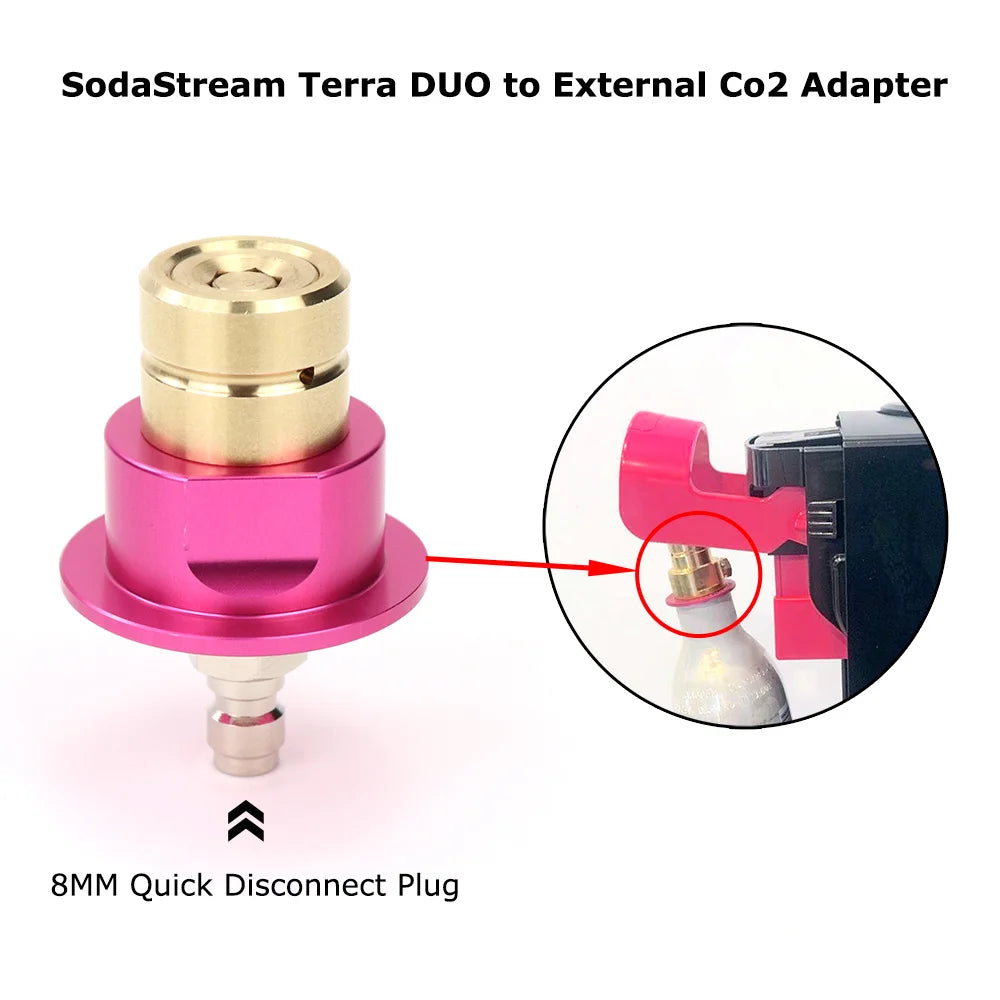

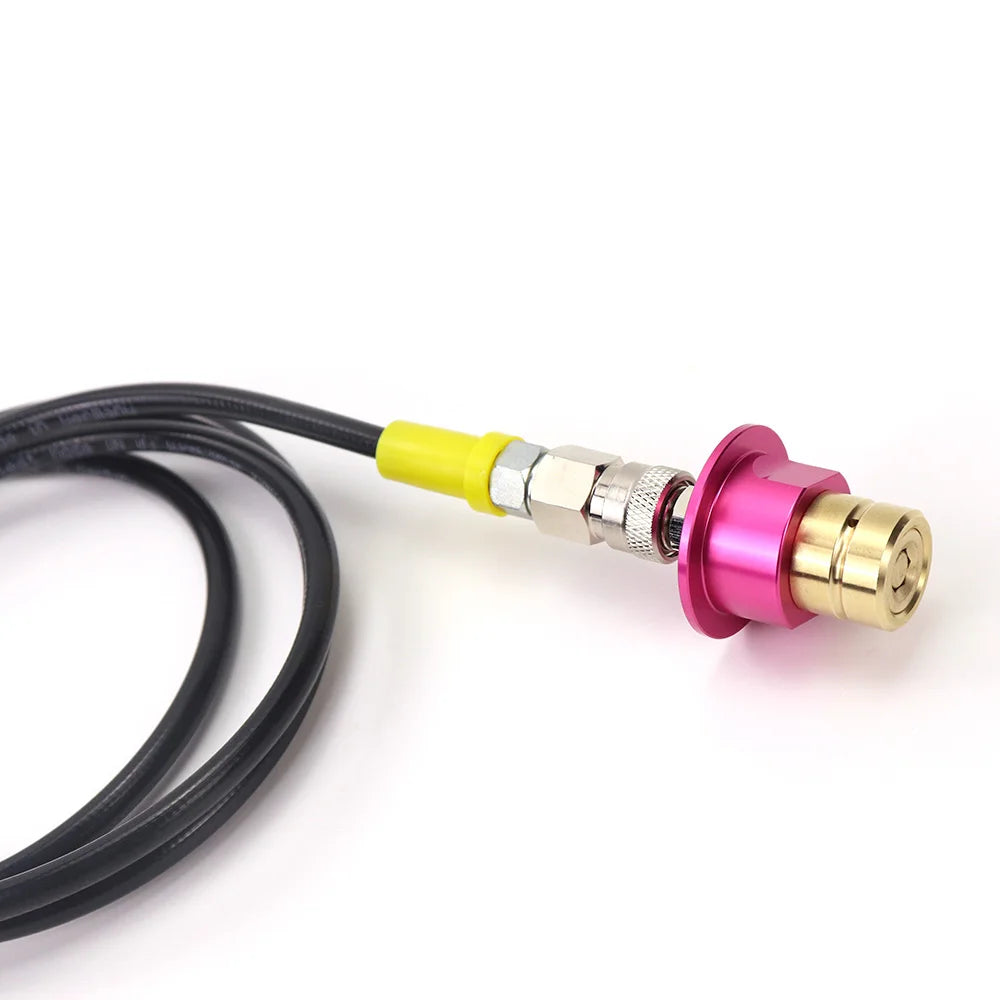

• With Quick Disconnect coupler.

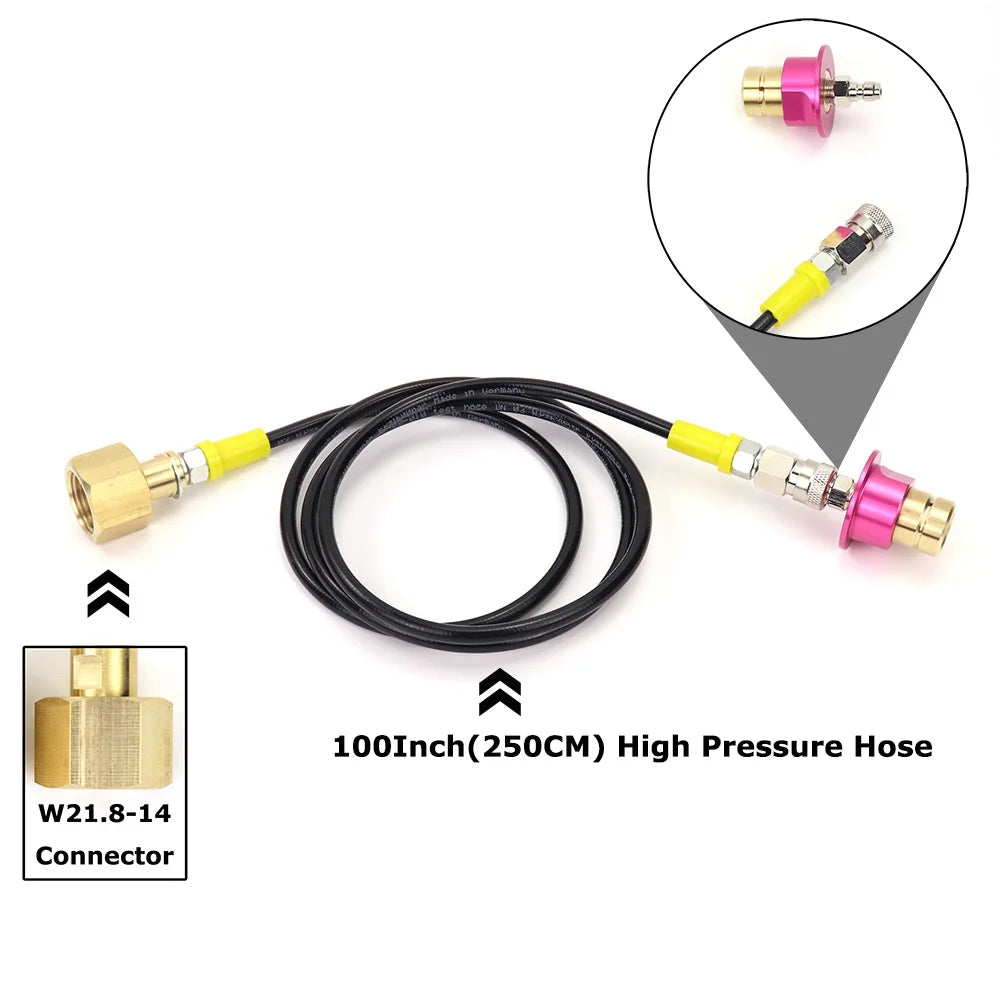

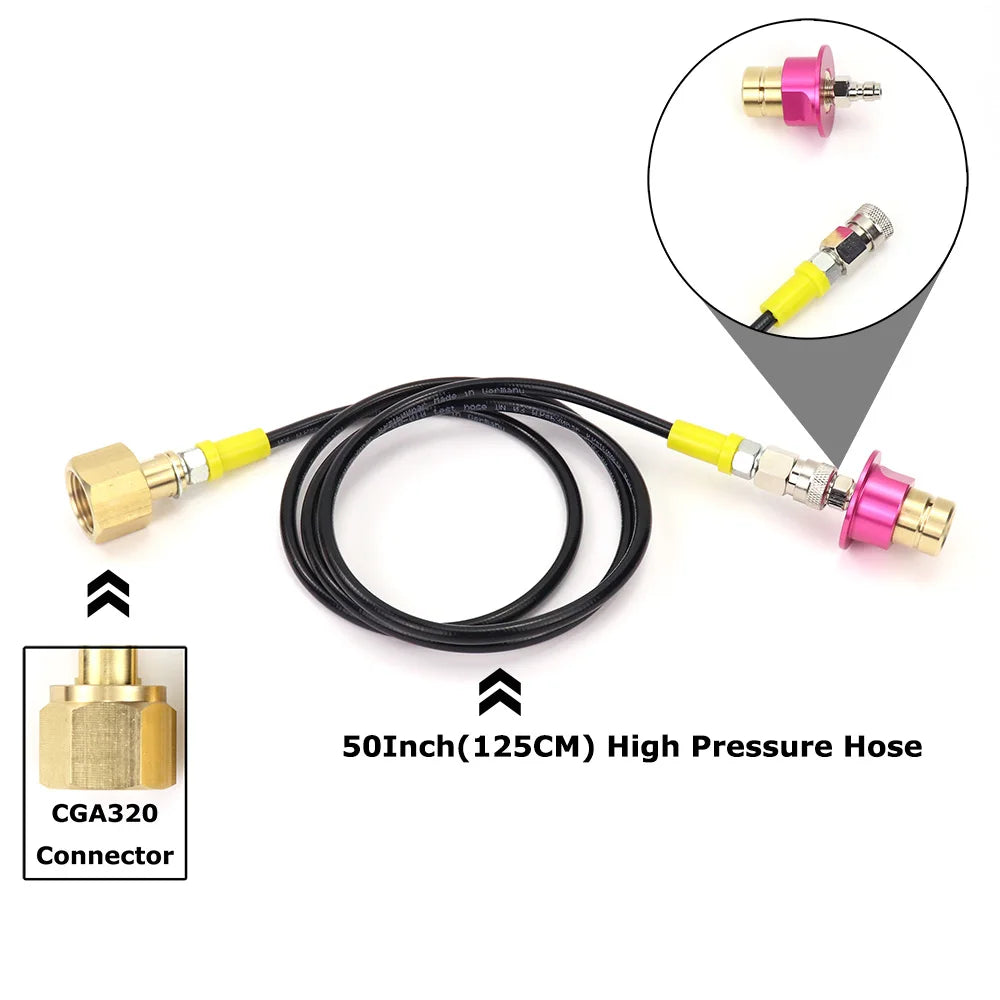

• Hose Lenght 50Inch(125cm) Or 100Inch(250cm), Soft and Durable.

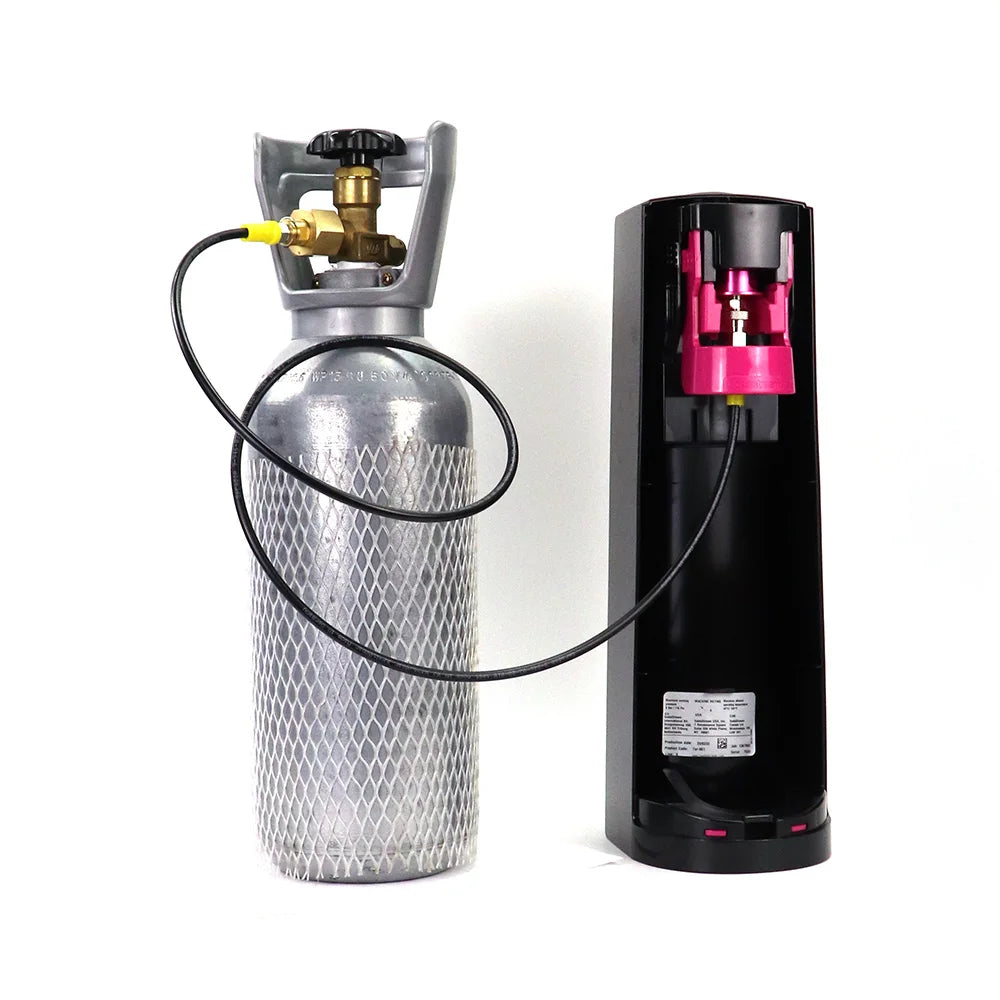

• This Item Use For Soda Terra DUO Art To External Tank Cyclinder Connect.Like 5lb, 20LB or 50lb commercial CO2 tanks.

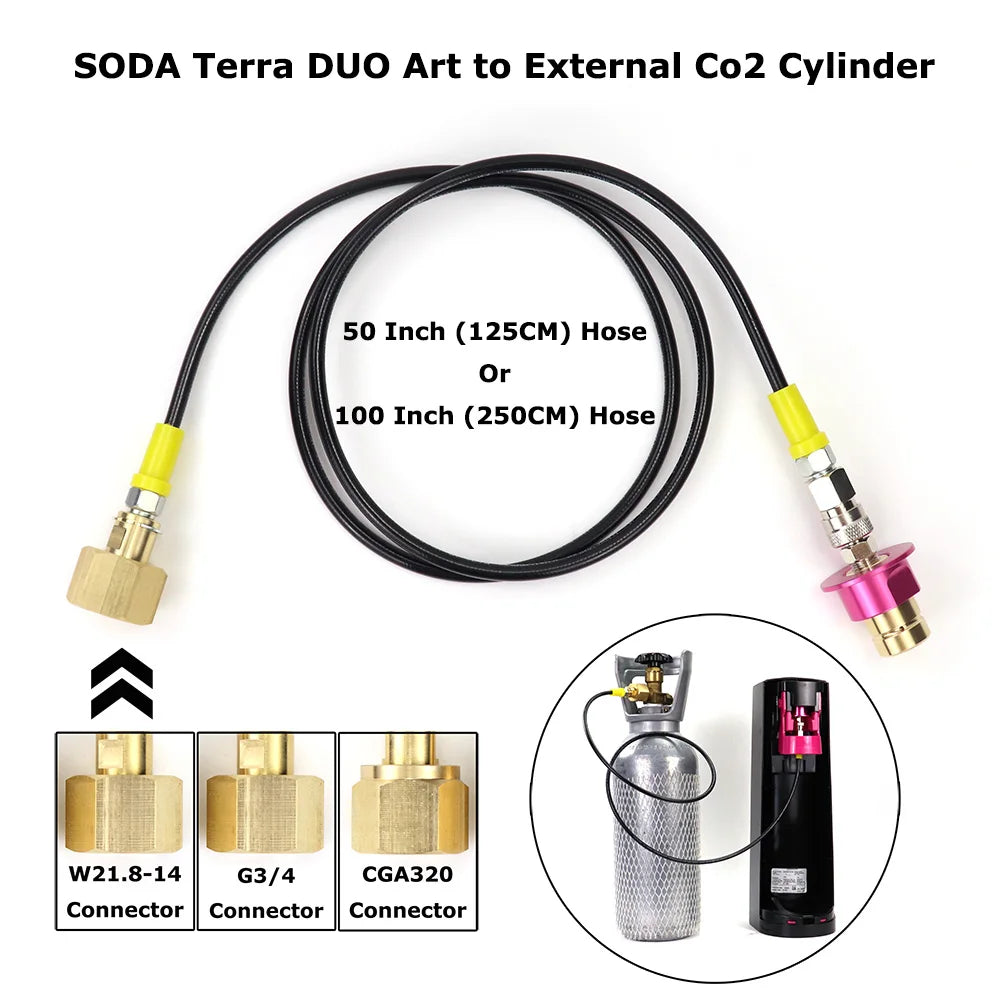

• Allows External Tank Cyclinder Valve Connector Thread W21.8-14 Or CGA320.
• CGA320 connector CO2 Tank Common in USA, CAN, Brazil, Colombia, Philippines.
• W21.8-14(DIN 477) connector Compatible With JIS M22-14, Common in KOR, JP, UK, Germany, France, Poland, Norway, Switzerland, Russia, Ukraine, South Africa, Sweden, Chile, Czech Republic, Singapore.
• This item works with GAS CO2 only, not liquid CO2.It can't use siphon tube Co2 Tanks!!
• Please don't disconnect the quick disconnect under pressure, it will be blowed out the o ring in quick disconnect(female QD),suggest  drain residual pressure on Sodastream Machines.

How it works:

1. Screw the Nut to CO2 gas cylinder and tighten it by wrench.
2. CQC adaptor connect the quick coupler.
3. CQC External adaptor connect into Soda machine.
4. Open the valve of the large gas bottle.
5. Done,you can use your Soda machine.

if you want to unscrew the item from the machine:

1. Close valve of the large gas bottle.
2. Press button of Soda machine to drain residual Co2(if you don’t follow this guide to disconnect the coupler, the o ring of quick coupler will be blowed out)
3. Unscrew CQC adaptor from Soda machin and unscrew Nut from CO2 gas cylinder
