SPECIFICATIONS

Type: Air Systems

Material: Copper And Stainless Steel

Thread To Big Bottle: W21.8-14 or CGA320

Soda Thread: TR21-4

Weight: 300G

Brand Name: NEW BAIGO

Model Number: Soda

Origin: Mainland China

Choice: yes

semi_Choice: yes

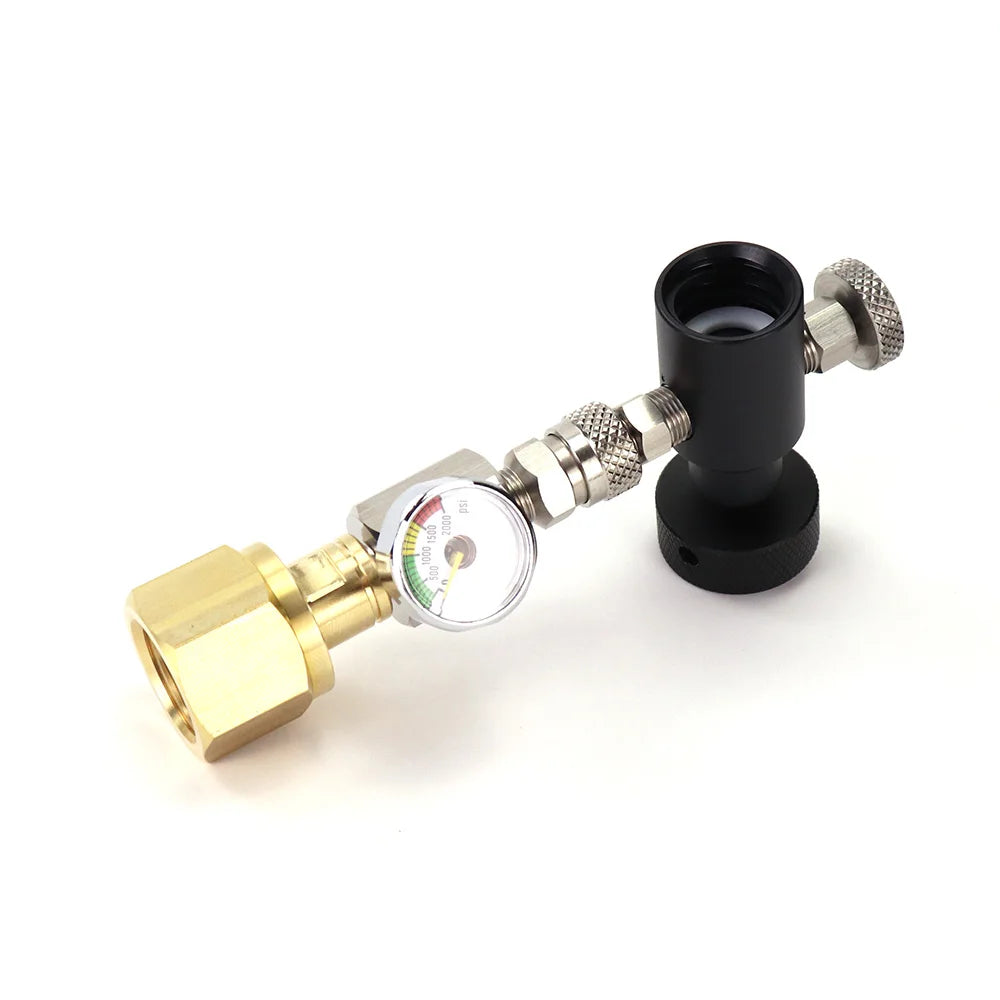

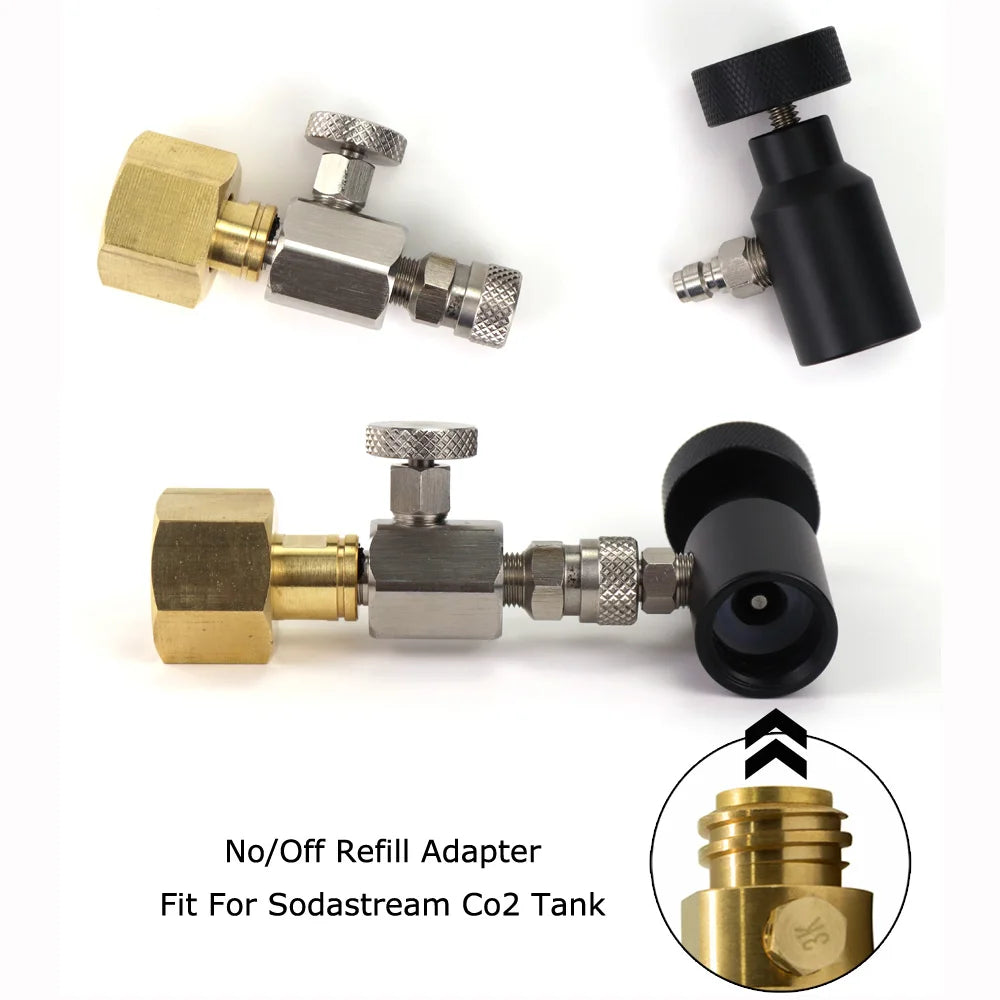

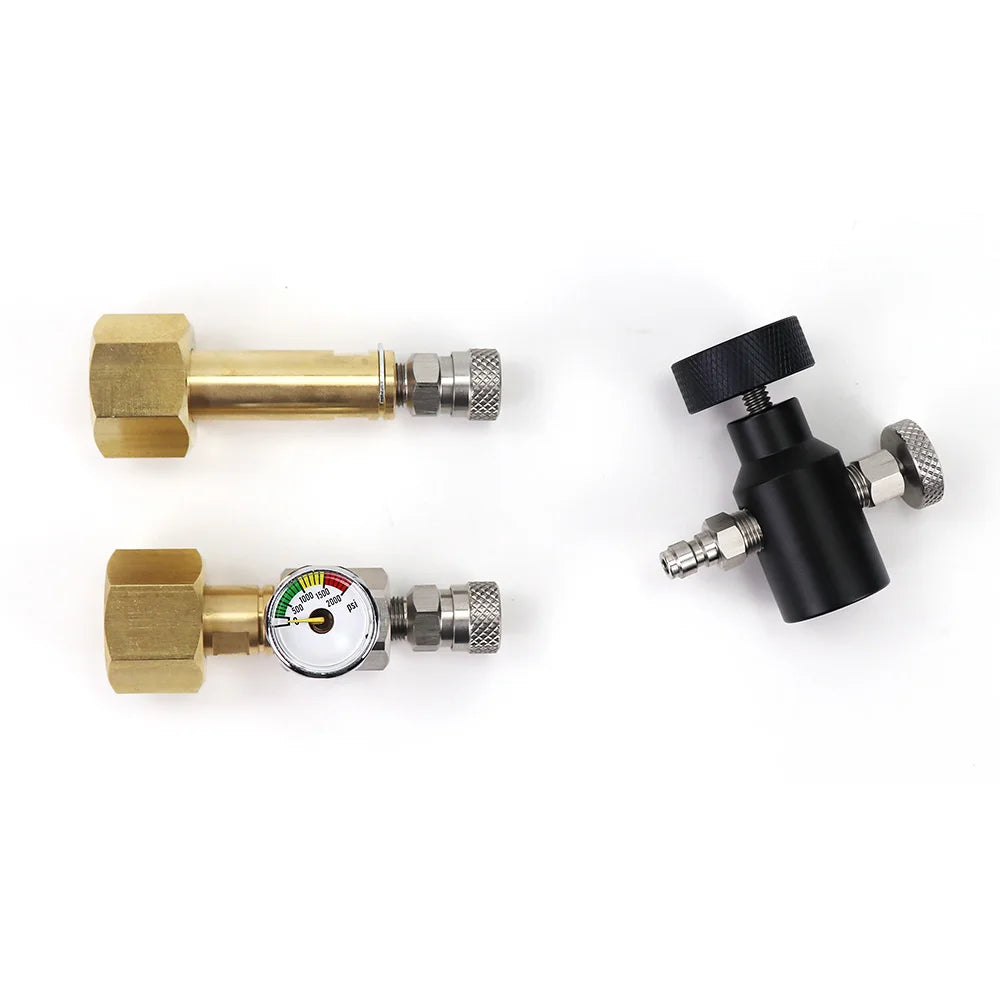

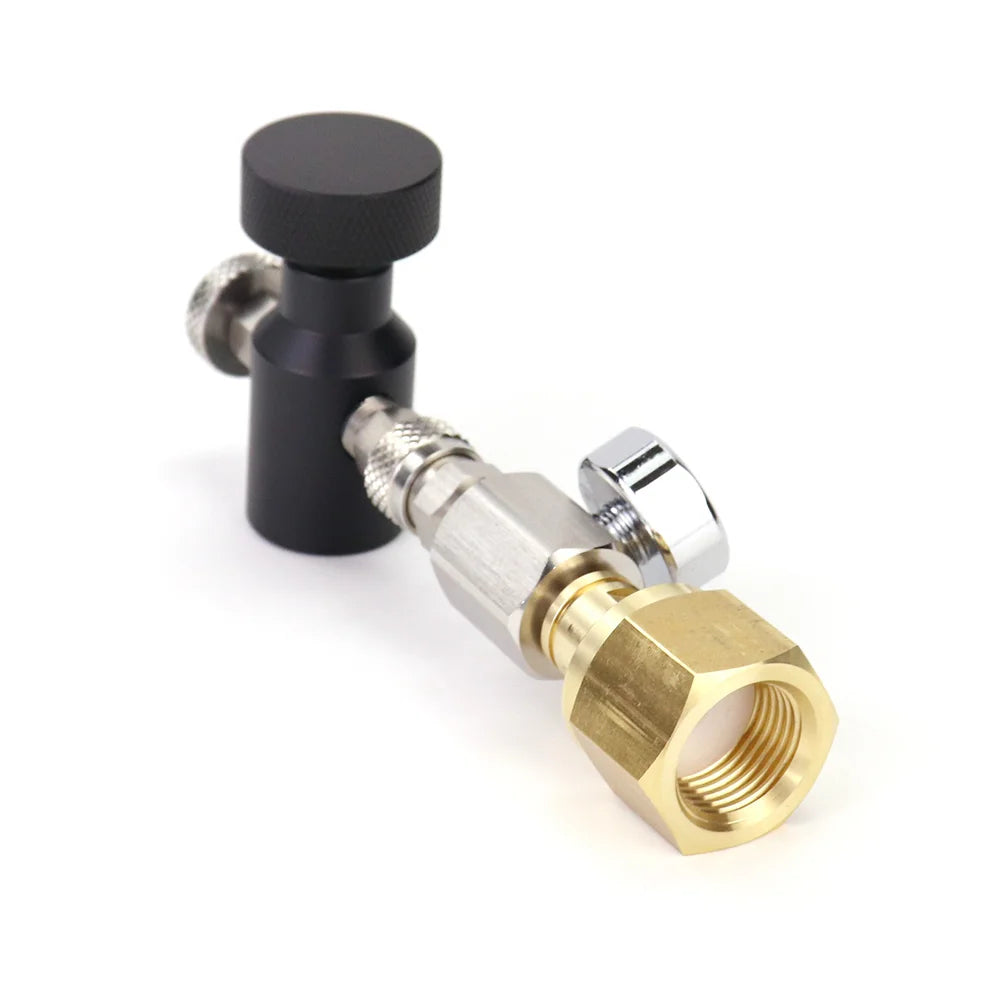

Soda CO2 Cylinder Tank Refill Adapter Fill Station

• Fit for Sodastream Blue CO2 Cylinder(Tr21-4 Thread), Tr21-4 Thread Allows to use most CO2 Cylinder.
• With Quick Disconnect Connector.
• This Item Use For Soda CO2 Cylinder filling from Big Tank Cyclinder.Like 5lb, 20LB or 50lb commercial CO2 tanks.

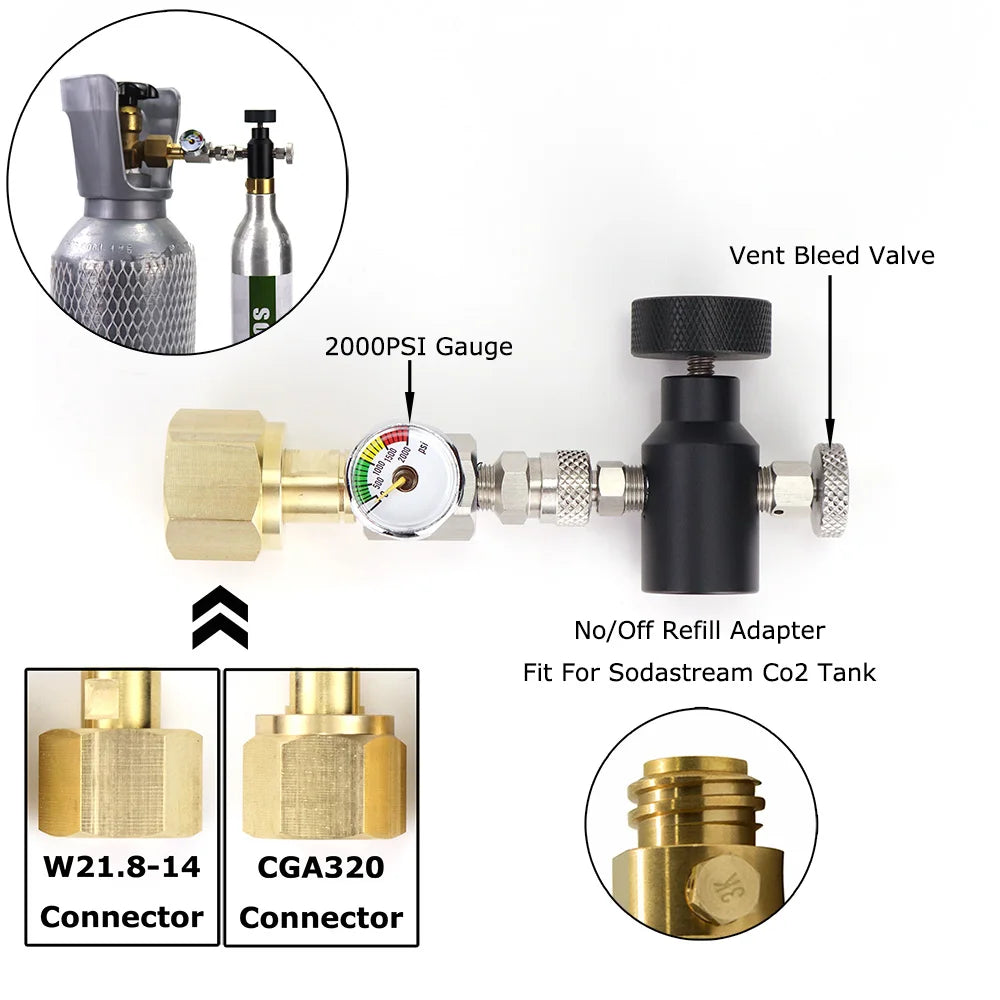

• Allows External Tank Cyclinder Valve Connector Thread W21.8-14 G3/4 Or CGA320.

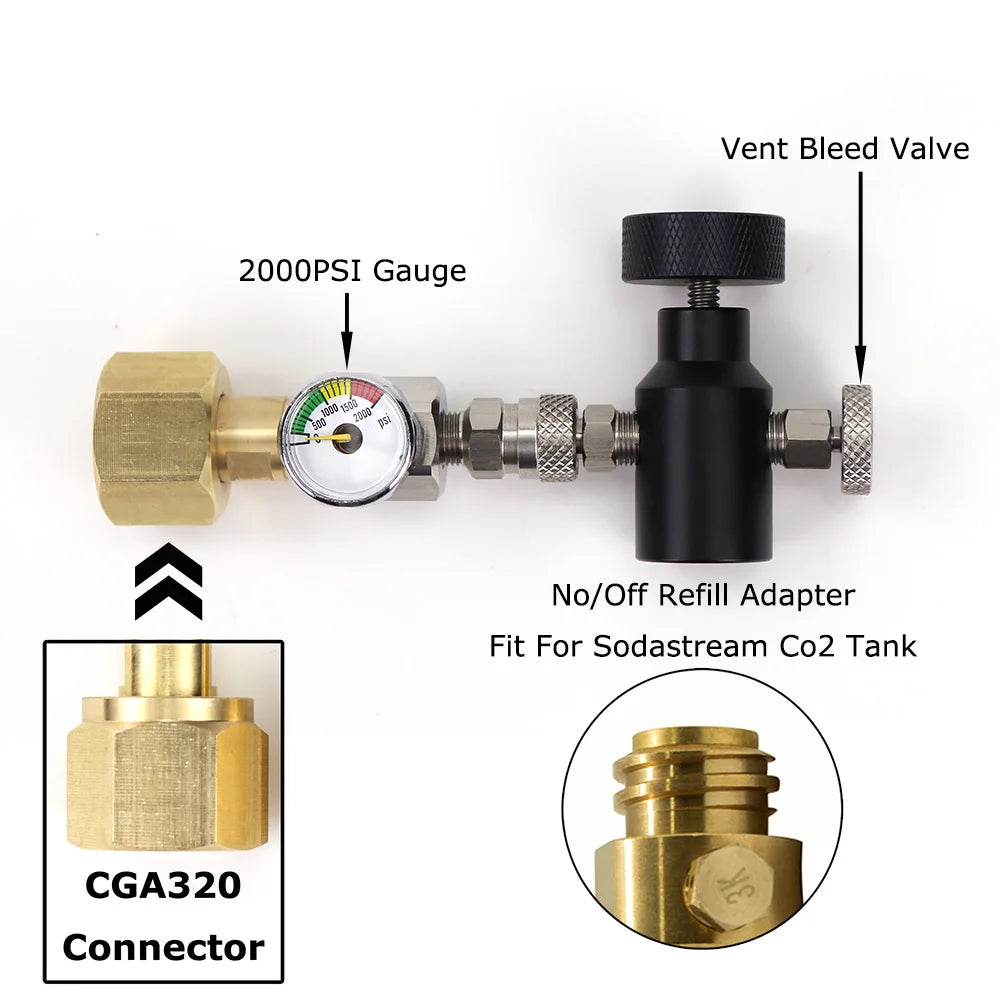

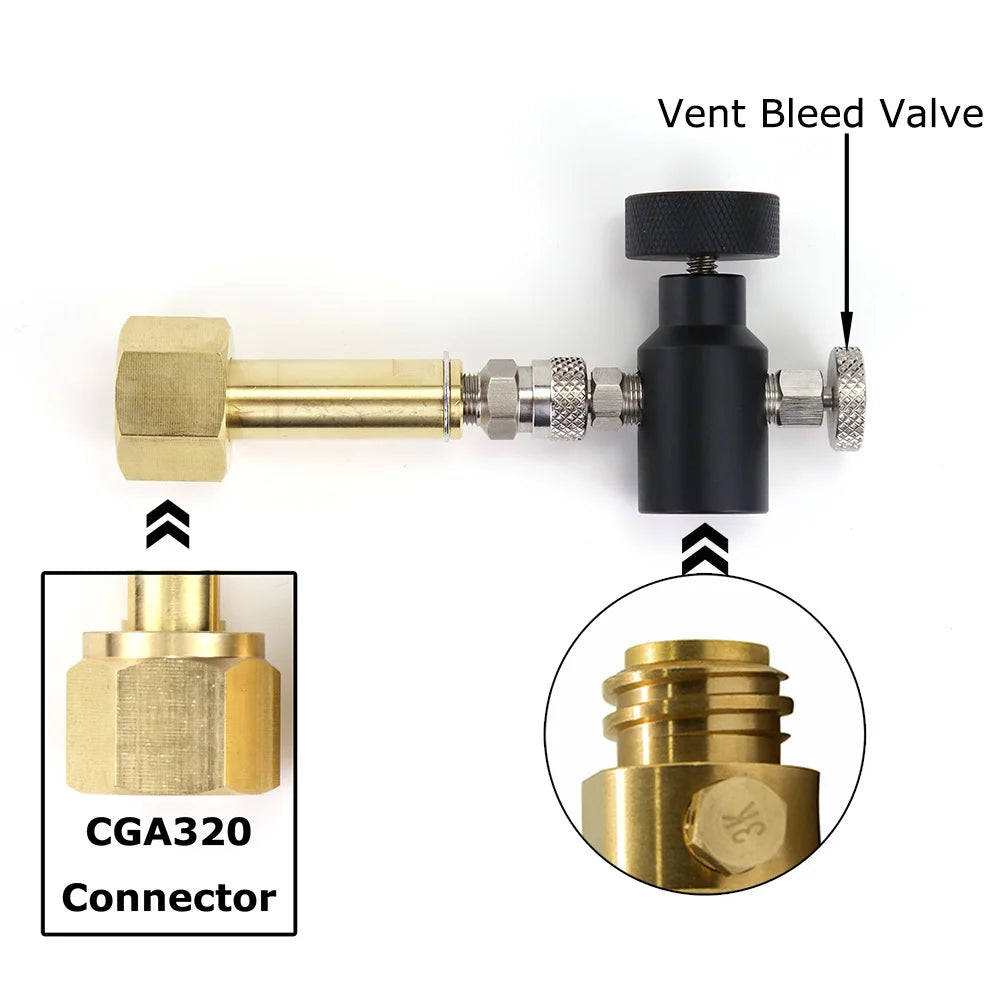

• CGA320 connector CO2 Tank Common in USA, CAN, Brazil, Colombia, Philippines.

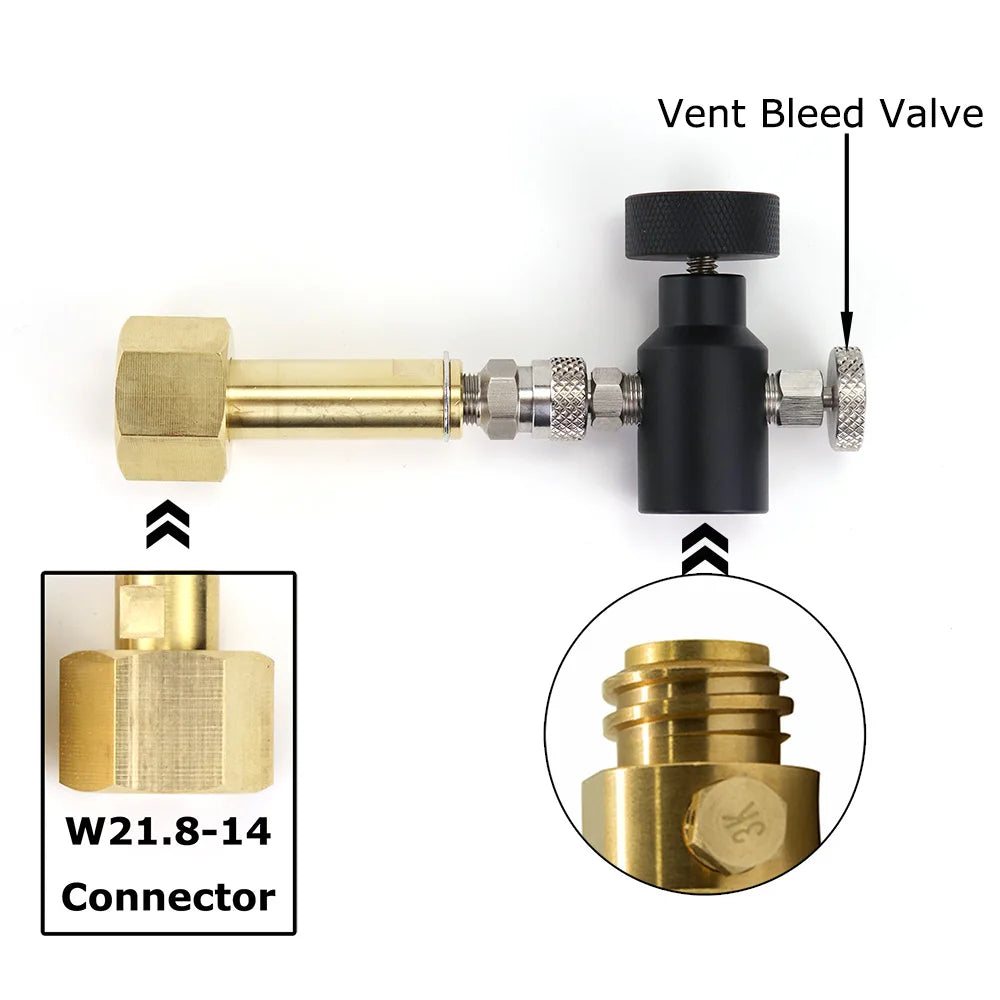

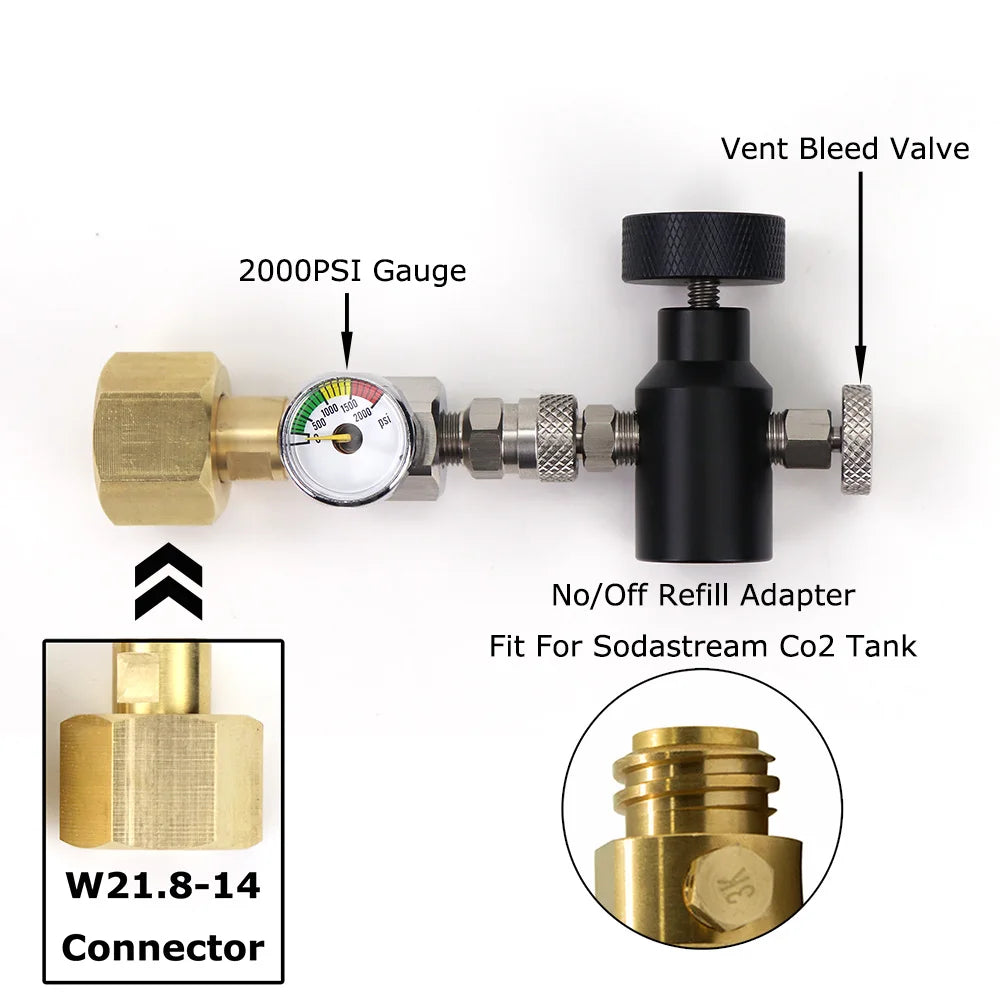

• W21.8-14(DIN 477) connector Compatible With JIS M22-14, Common in KOR, JP, UK, Germany, France, Poland, Norway, Switzerland, Russia, Ukraine, South Africa, Sweden, Chile, Czech Republic, Singapore.

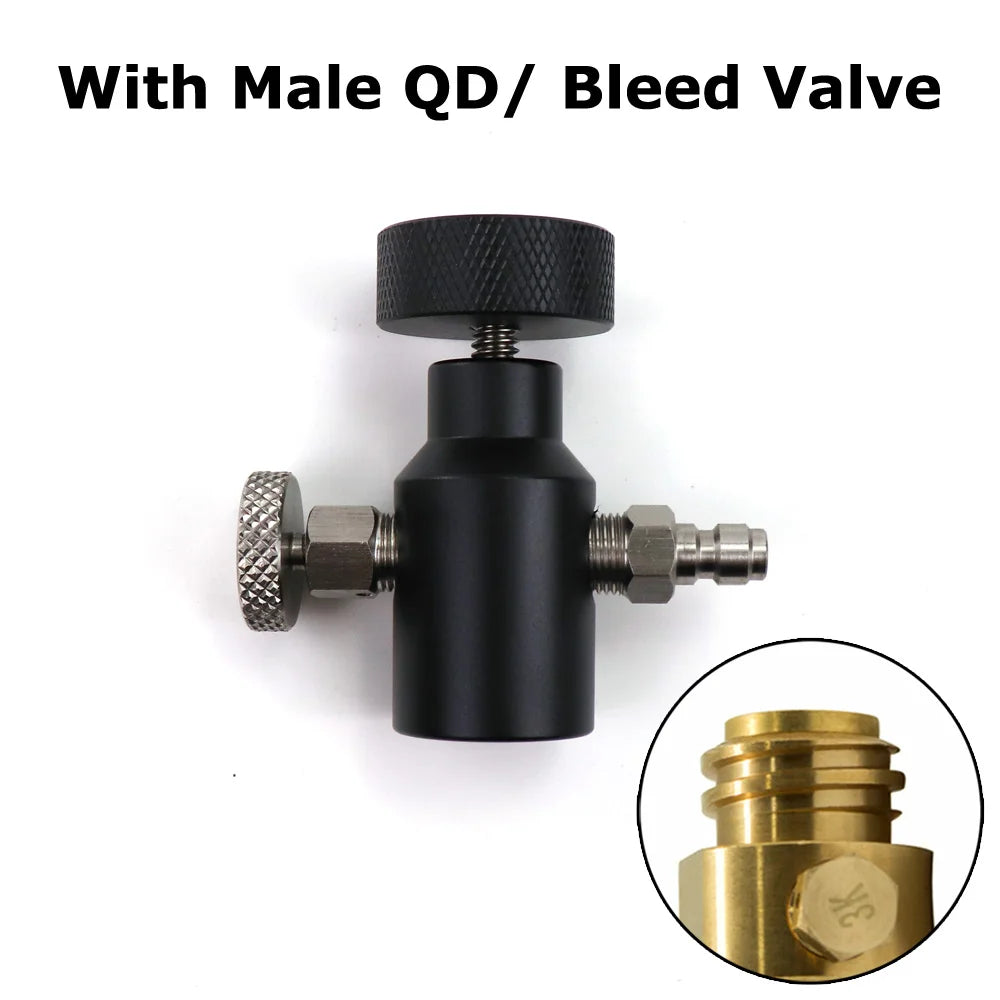

• Please don't disconnect the quick disconnect under pressure, it will be blowed out the o ring in quick disconnect(female QD),Use bleed valve drain residual pressure.

1.Our Adapter Don't Work Residual Pressure Valve (RPV valve),please check before ordering.

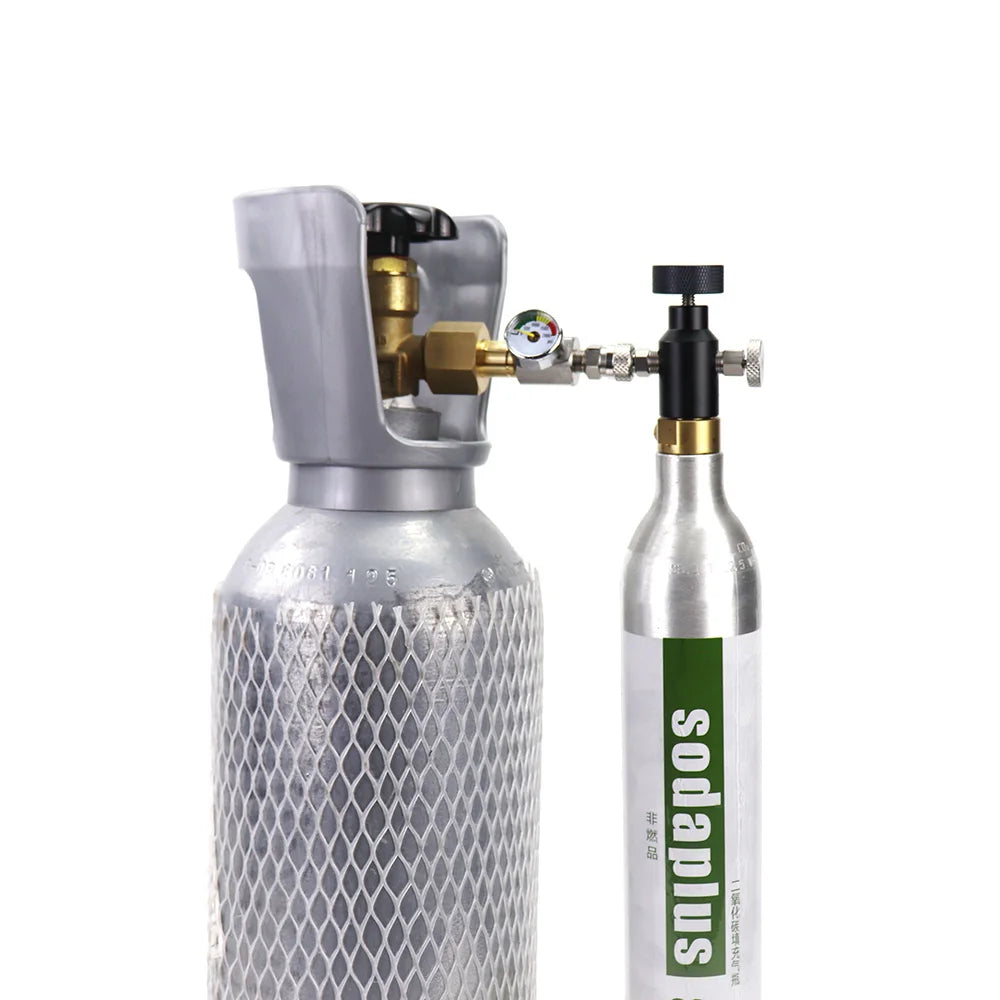

How it works:

1. Screw the adapter to a larger CO2 gas cylinder.
2. The empty SodaStream cylinder is screwed into the fill adapter.
3. Connect quick disconnect.
4. Open the valve of the large gas bottle.
5. Wait for the cylinder is completely fill,  about 30 sec.
6. Close valve of the large gas bottle.
7. Opening the Vent bleed valve screw to drain residue remaining gas.
8. Unscrew the CO2 cartridge – done.
