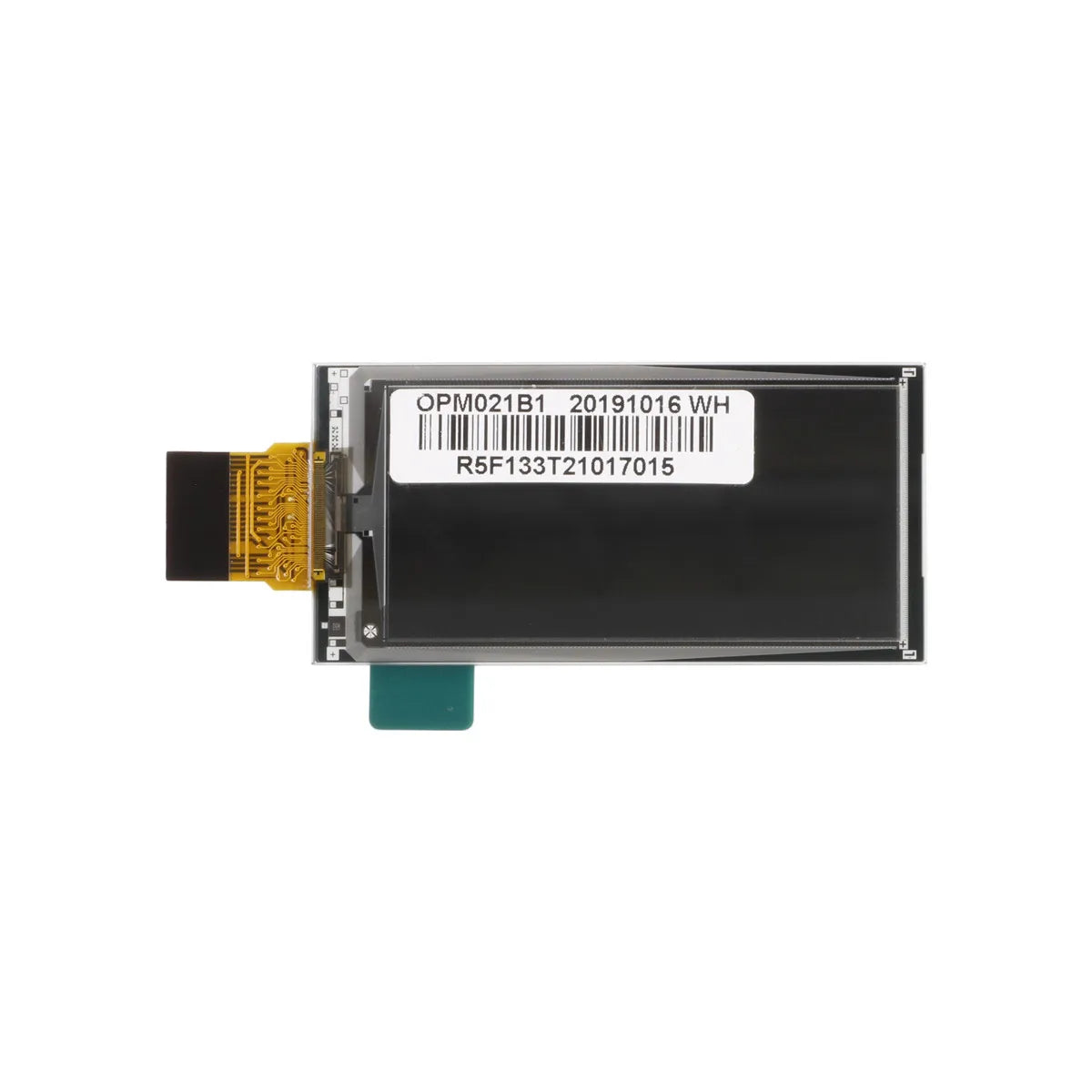

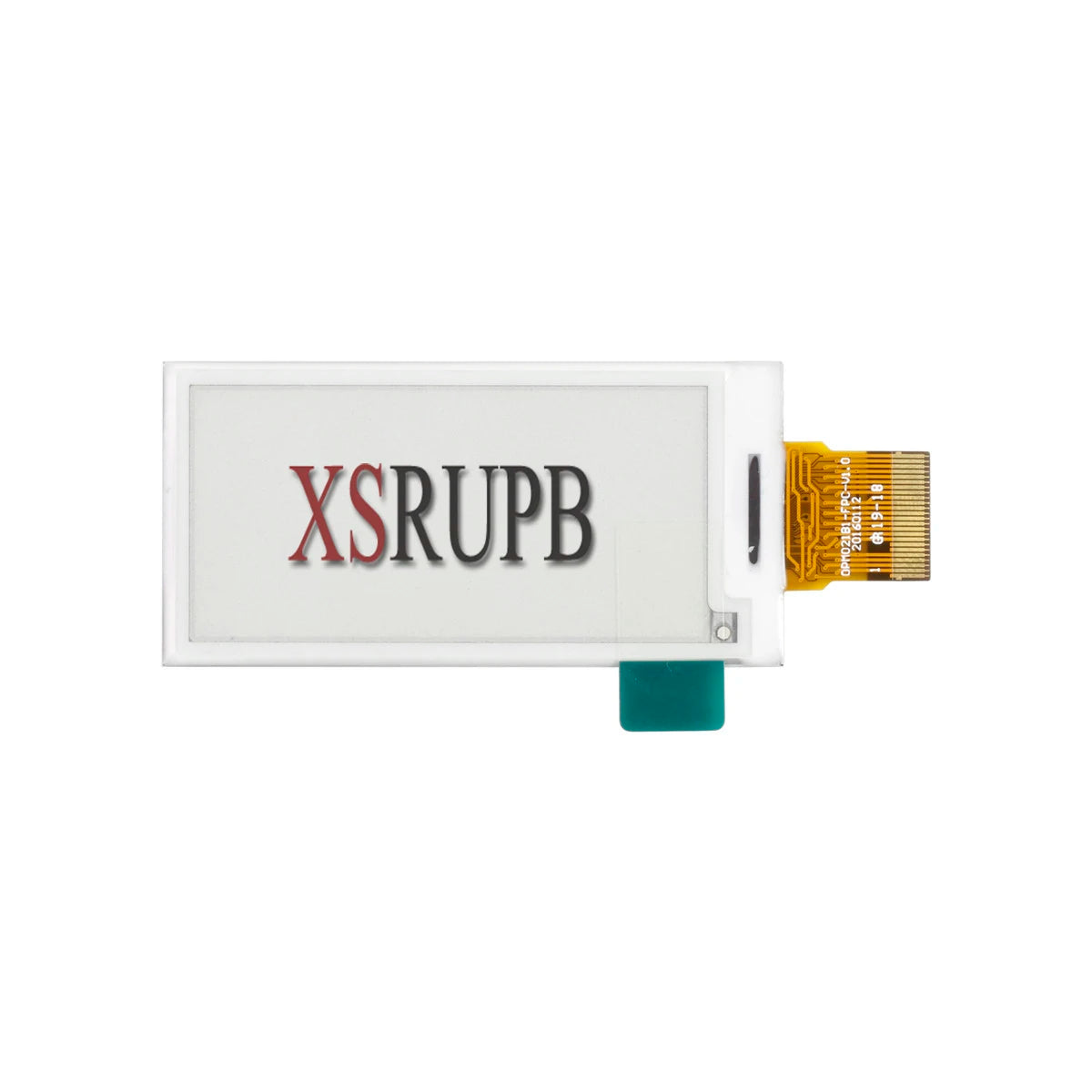

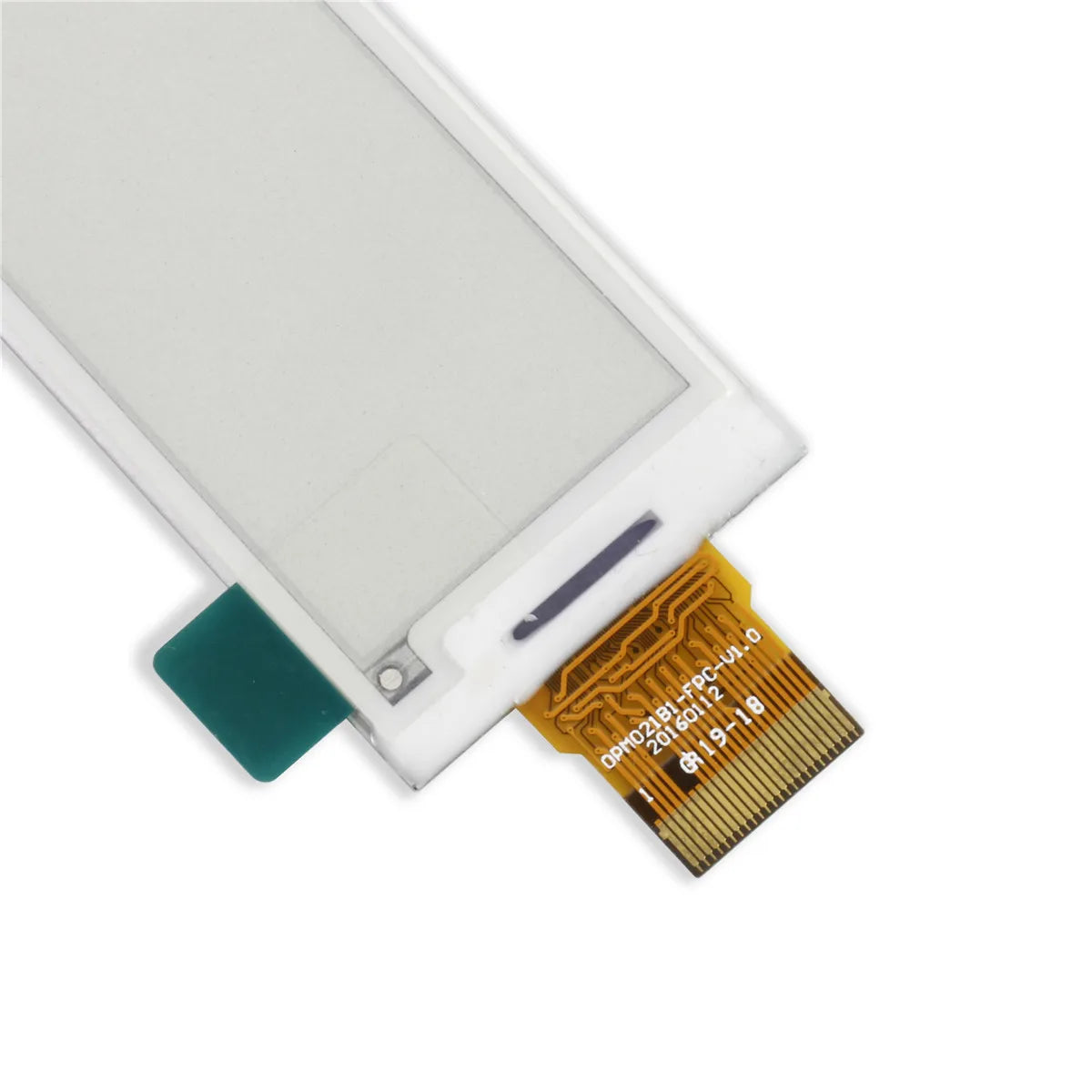

OPM021B1 2.13 inch 122x250 LCD Display screen For Electronic label Electronic paper screen

€34,99 EUR

~~€0,00 EUR~~ €34,99 EUR

Sale Sold out

Taxes included.

Quantity

SPECIFICATIONS

Brand Name: XSRUPB

Product Type: Tablet LCD

Origin: Mainland China

Hign-concerned Chemical: none

Model Number: OPM021B1

Compatible Brand: Universal

Display Size: 2.13 inch

Certification: none

Screen Type: EPD

Size: 2.13

Choice: yes

semi_Choice: yes

compatible

model	OPM021B1
size	2.13 inch

type	Graphic lattice
Display Resolution	122(H)*250(V)
Overall dimension(mm)	29.2x59.2x1.0
View size(mm)	23.67*48.5mm
Point spacing(mm)	0.1943x0.1942
working temperature	0℃~50℃
Storage temperature	-25℃~70℃
Connector	24 Pin FPC
Maximum grayscale	4
colour	black and white
Refresh power consumption(mW)	10.5
standby power(mW)	0.003
Full brush time(s)	3
Local brush time(s)	0.4
Interface	SPI

Please do not perform the wrong operations in the video below

For normal installation, disassemble the casing, disassemble the frame, unbuckle the motherboard, and connect the screen, then it will work normally!
