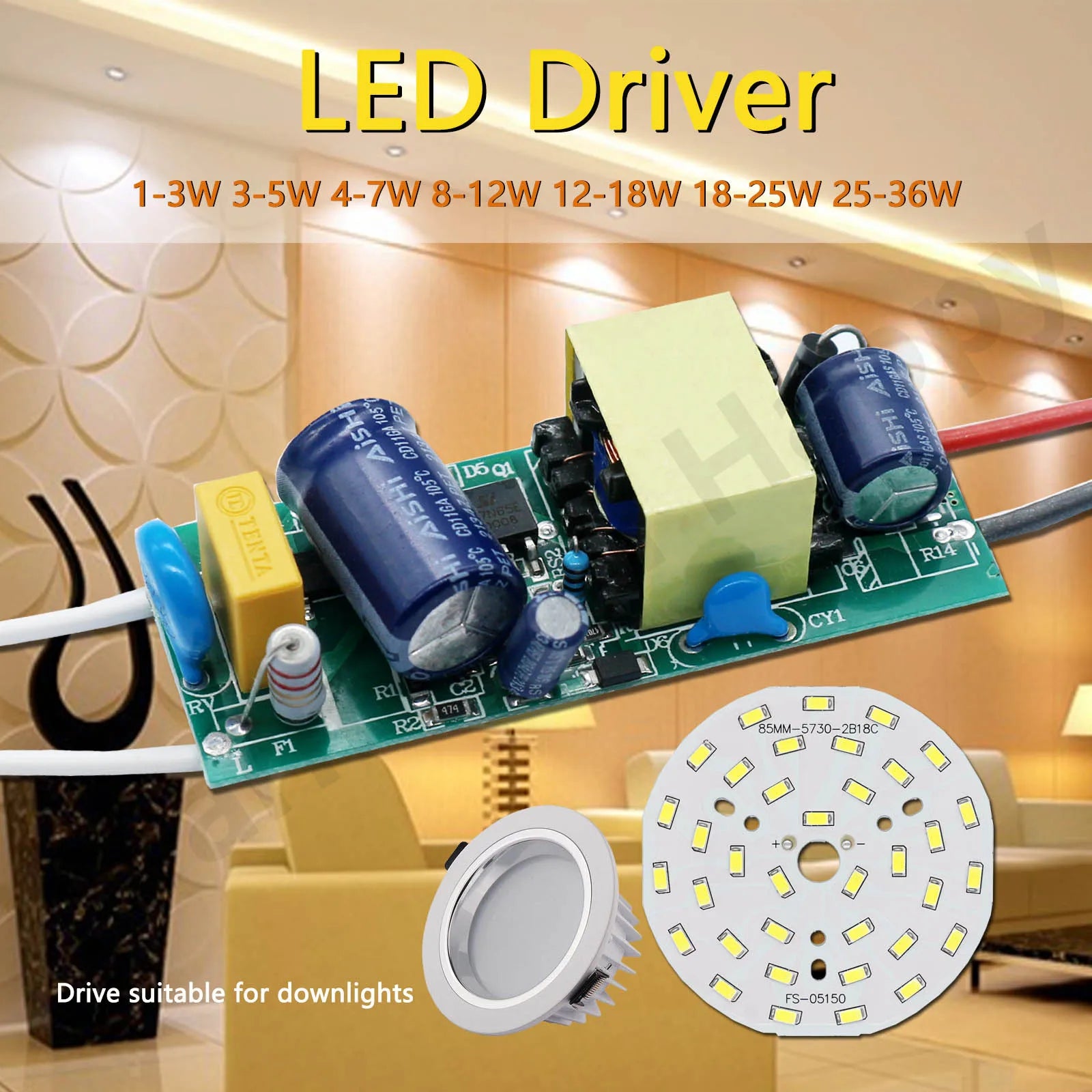

LED Driver 220V LED Power Supply 1-3W 4-7W 8-12W 15W 18W 24W 25W 30W 36W 300mA with Built-In Transformer Module LED Driver Board
LED Driver 220V LED Power Supply 1-3W 4-7W 8-12W 15W 18W 24W 25W 30W 36W 300mA with Built-In Transformer Module LED Driver Board
Couldn't load pickup availability
SPECIFICATIONS
1-3W Output Voltage: DC3-12V Load status
12-18W Output Voltage: DC36-65V Load status
18-25W Output Voltage: DC54-87V Load status
25-36W Output Voltage: DC75-135V Load status
3-5W Output Voltage: DC9-18V Load status
4-7W Output Voltage: DC12-26V Load status
8-12W Output Voltage: DC24-46V Load status
Application Place 1: LED Spotlight / LED Bulb / LED Corn Light
Application Place 2: LED Strip Light / LED Tube Light / LED Table Lamp
Application Place 3: LED track light / LED bulb
Application Place 4: LED panel light / LED chandelier / living room lamp
Application Place 5: LED adapter, electrical adapter, electronic adapter
Brand Name: warm and happy
Certification: CCC,ce,CQC,ROHS
Feature: Smart IC Driver PCB
Feature 1: The voltage is automatically balanced based on lamp performance
Feature 2: Current stability
Feature 3: Dark Energy LED Driver
Feature 4: intelligent led driver
Feature 5: led driver for chandelier
Feature 6: Grow light LED driver
Feature 7: LED constant current driver
Features: All Isolated driver
Hign-concerned Chemical: None
Input Signal: AC
Input Voltage: AC85V-265V
Item Type: Lighting Transformers
Material: Plastic Alloy+Smart chip
Model Number: TD65985
Note: No-load test is prohibited
Origin: Mainland China
Output Current: LED Driver 200MA/250MA/300mA
Output Signal: DC
Output Voltage: 3-11V/9-18V/12-26V/24-46V/36-65V/54-87V/75-135V
Plug Type: None
Power: 1-3W/3-5W/4-7W/8-12W/12-18W/18-25W/25-36W
Smart IC Driver: Automatically balance bulb voltage, constant current output
Warning: Not suitable for light strips for DC12V
Warranty: 3 years
Weight: 10
Specification
Tip 1: How to choose the right driver for the LED?
I met a lot of buyers and didn't know how to choose the right LED driver.
First, you need to determine the lamp's input voltage and input current by 100%, then select the matching voltage and current of the LED driver.
Example: We detected a bulb voltage of 40V and a current of 290mA.
So we should choose the 8-12W 280-300mA option.
Tip 2: Dear buyer, if you need a full power LED driver, please choose 280-300 current product, this is a full power LED driver.
Tip 3: The no-load test is forbidden. The voltage is too large and the data is inaccurate, so be sure to enter the bulb load test.

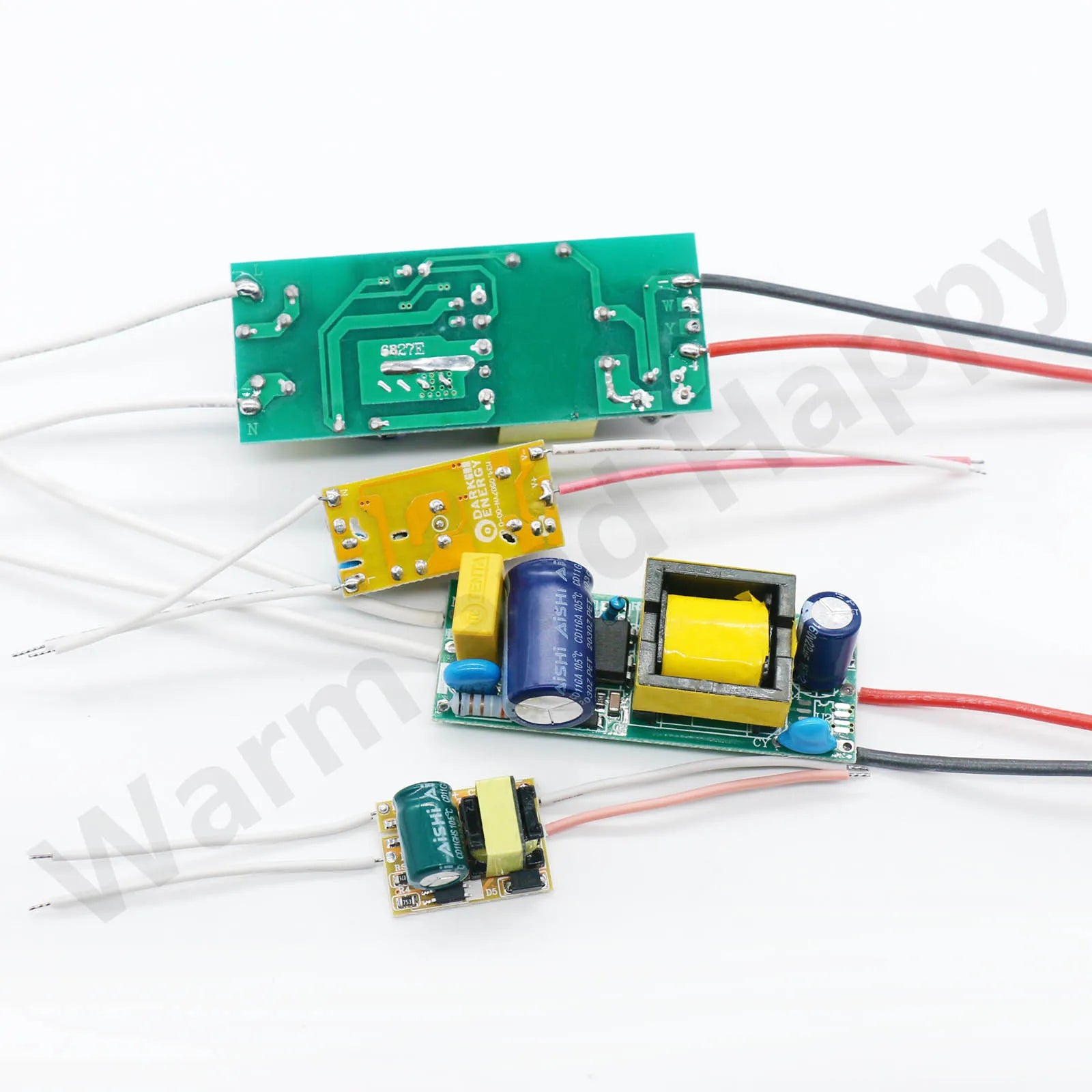

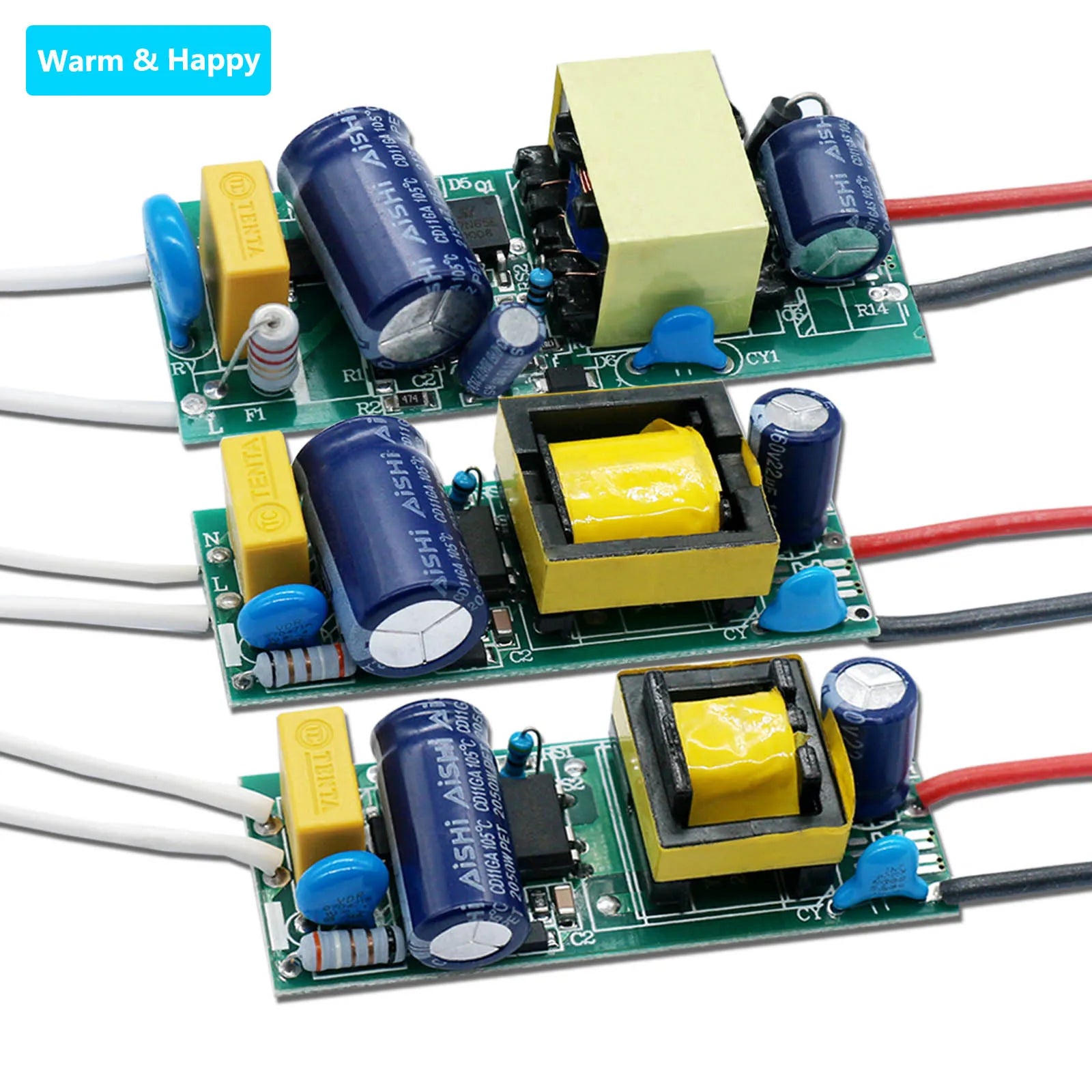

All Isolated Driver
Feature
The LED Driver will automatically lit by balancing the voltage according to the lamp performance.

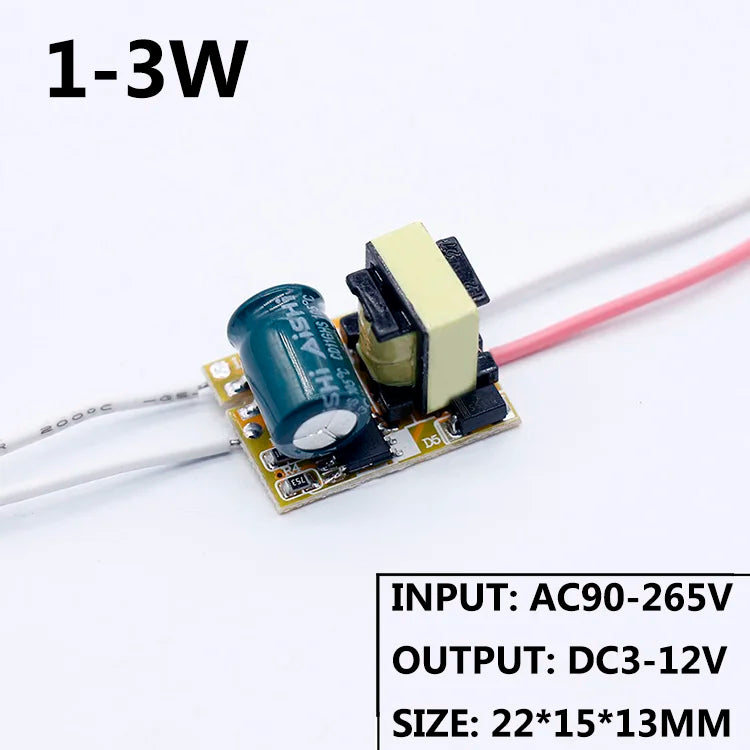

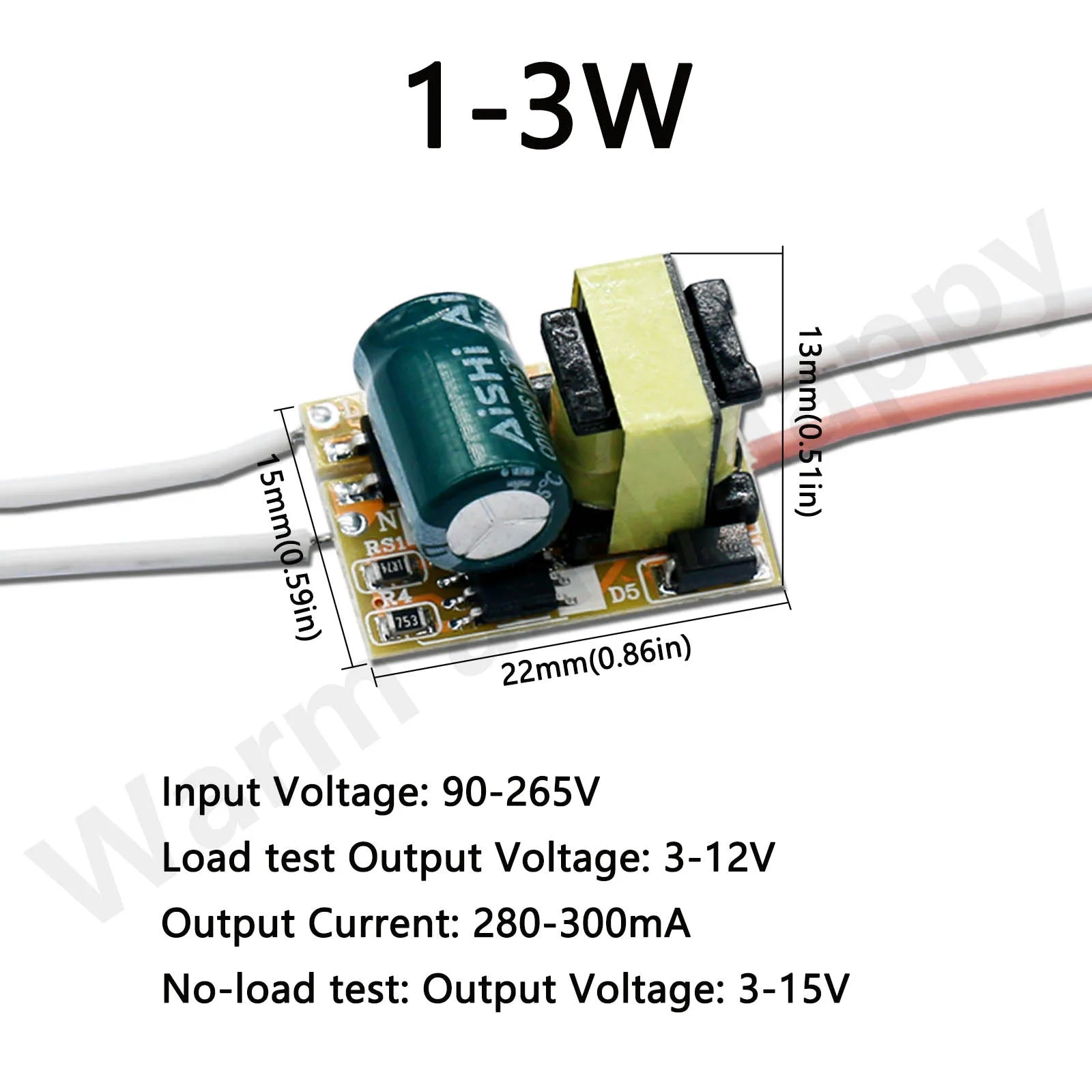

1-3W
1-3W LED Driver (Use 3 years)
Input Voltage: AC90-265V
Load test Output Voltage: DC3-12V
Output Current: 280-300mA
No-load test: Output Voltage: DC19V
(Danger! No-load testing is forbidden, and the test data is inaccurate.)

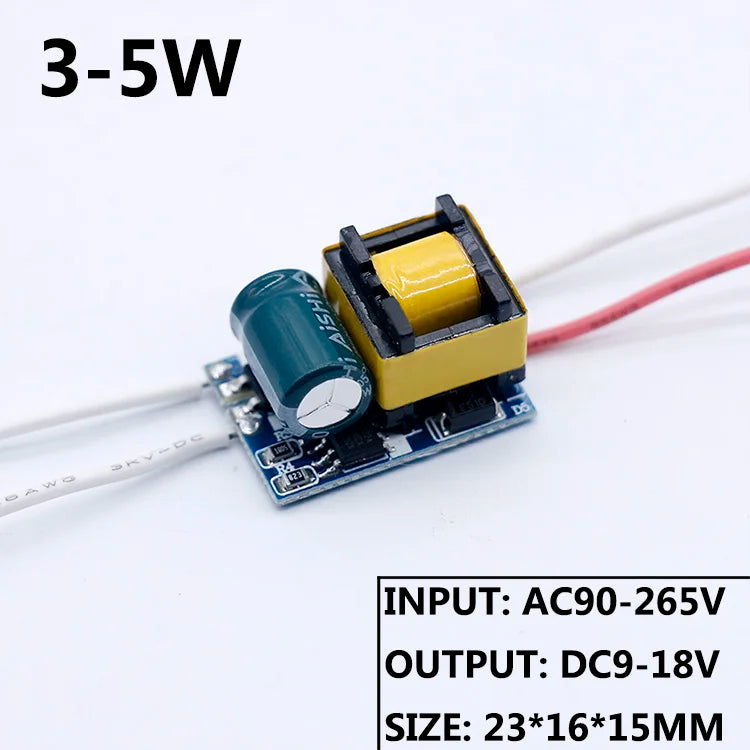

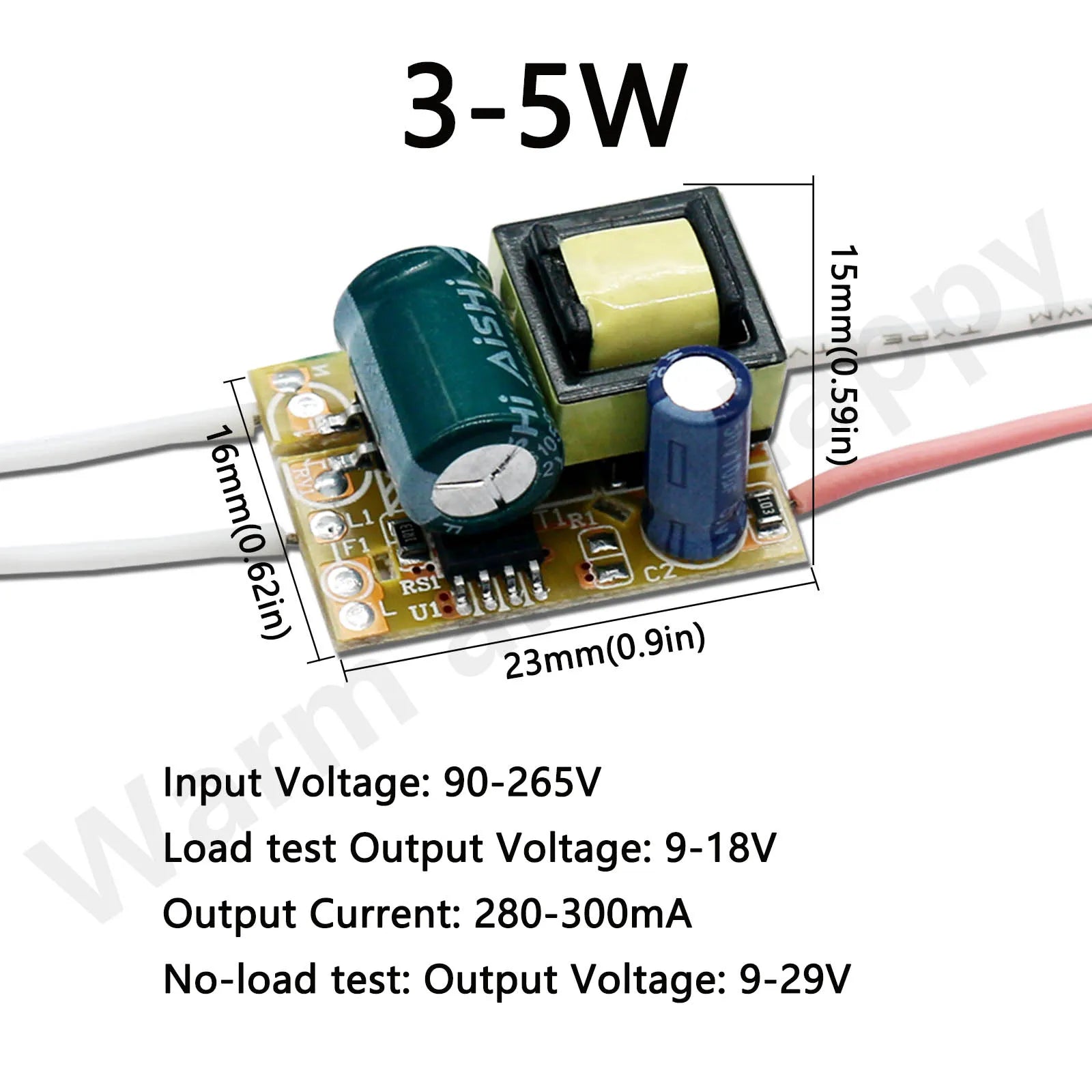

3-5W
3-5W LED Driver (Use 3 years)
Input Voltage: AC90-265V
Load test Output Voltage: DC9-18V
Output Current: 280-300mA
No-load test: Output Voltage: DC29V
(Danger! No-load testing is forbidden, and the test data is inaccurate.)

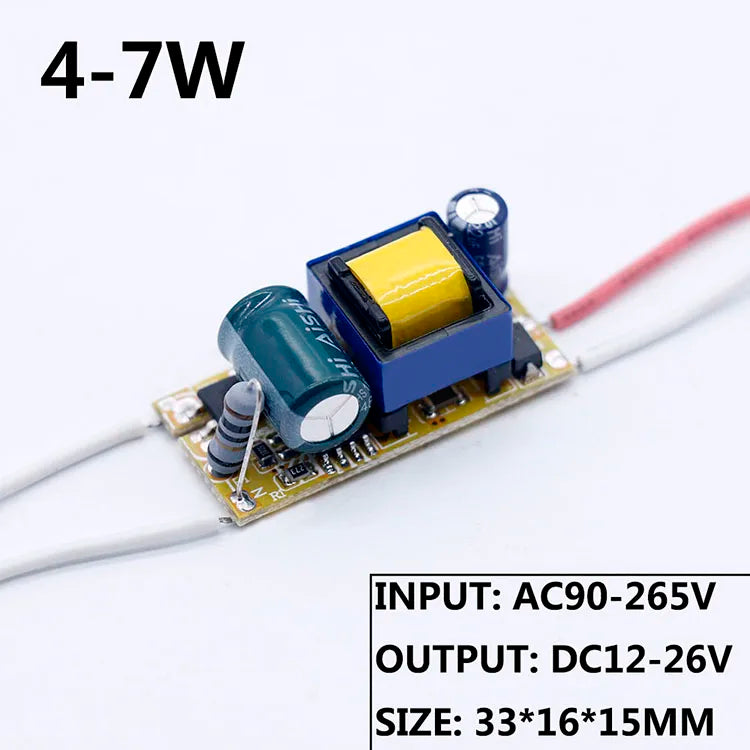

4-7W
4-7W LED Driver (Use 3 years)
Input Voltage: AC90-265V
Load test Output Voltage: DC12-26V
Output Current: 280-300mA
No-load test: Output Voltage: DC32V
(Danger! No-load testing is forbidden, and the test data is inaccurate.)

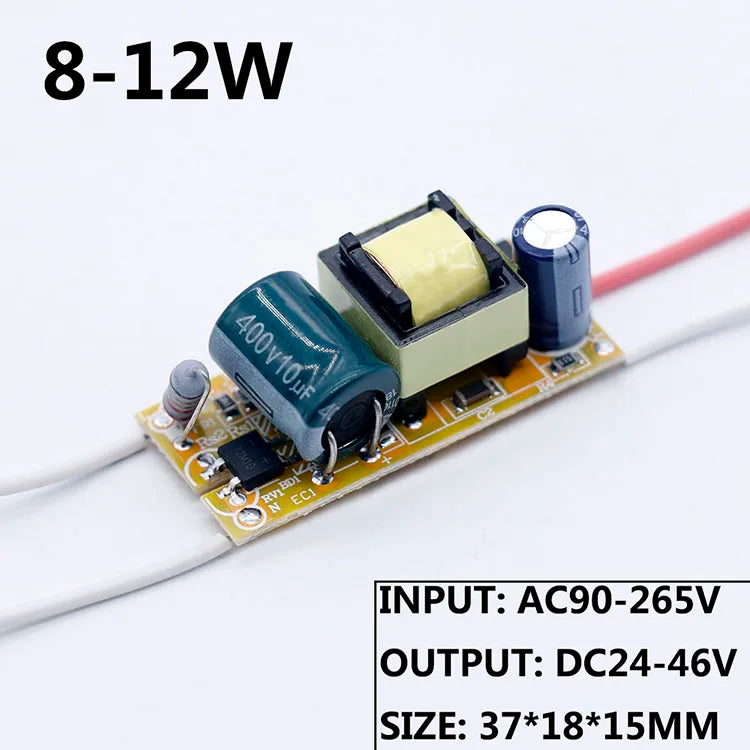

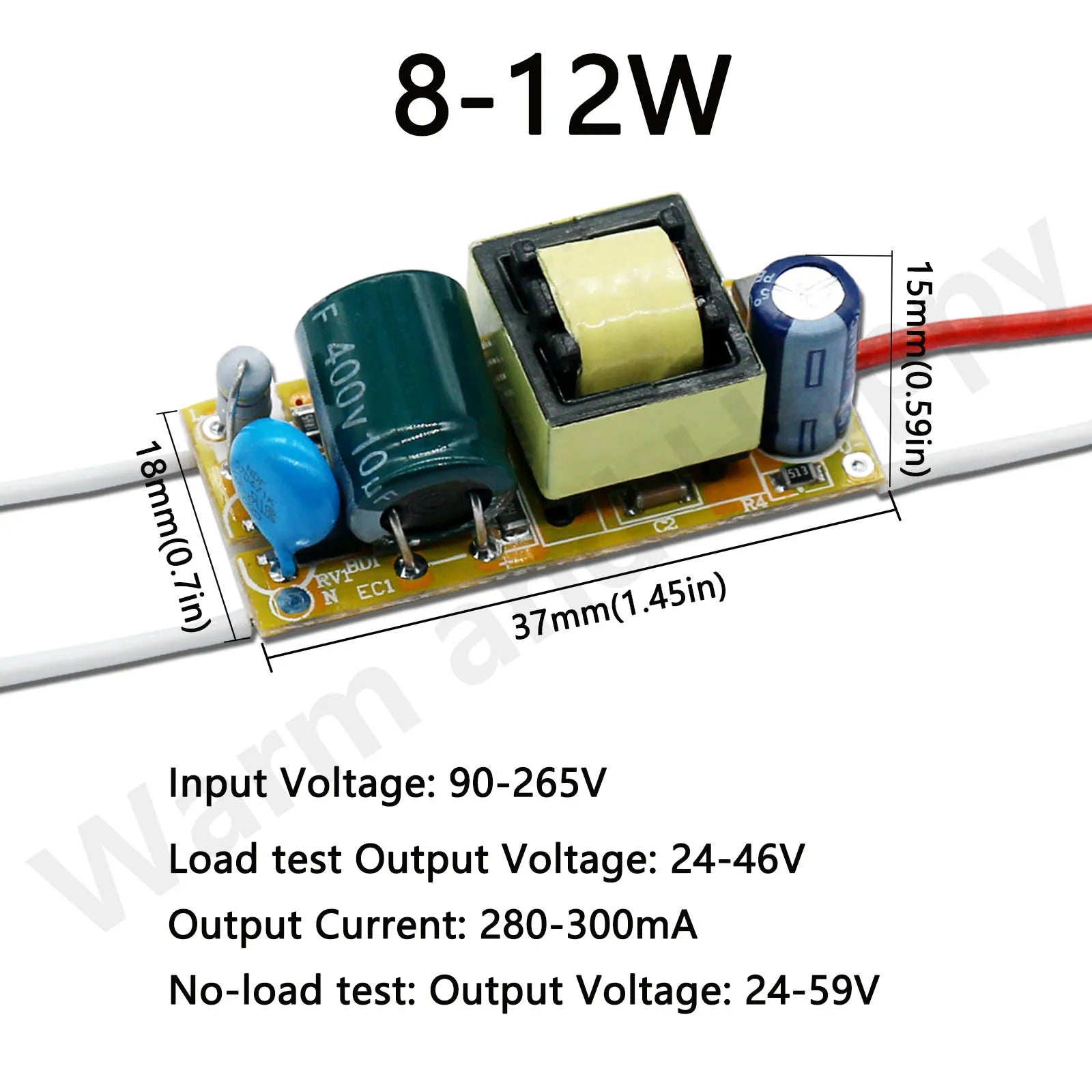

8-12W
8-12W LED Driver (Use 3 years)
Input Voltage: AC90-265V
Load test Output Voltage: DC24-46V
Output Current: 280-300mA
No-load test: Output Voltage: DC59V
(Danger! No-load testing is forbidden, and the test data is inaccurate.)

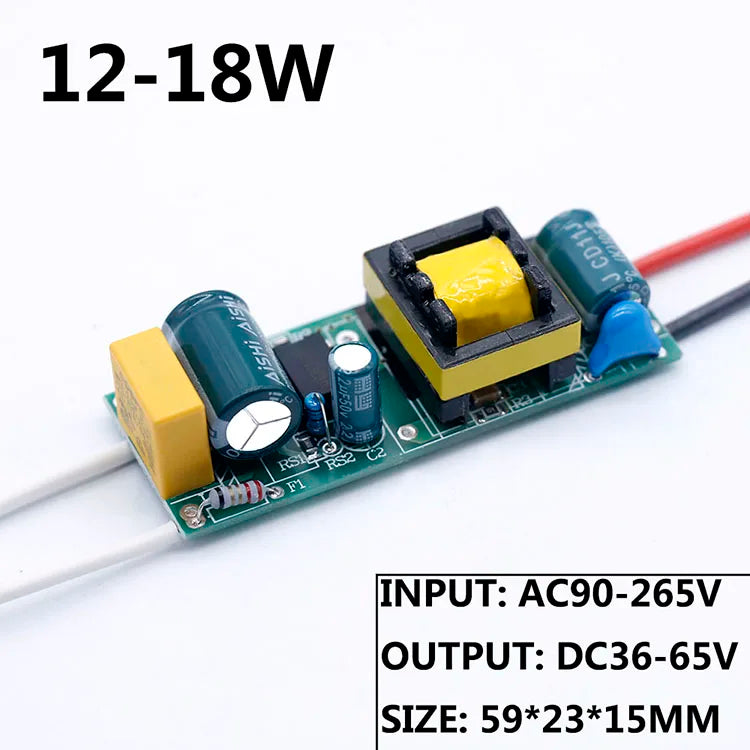

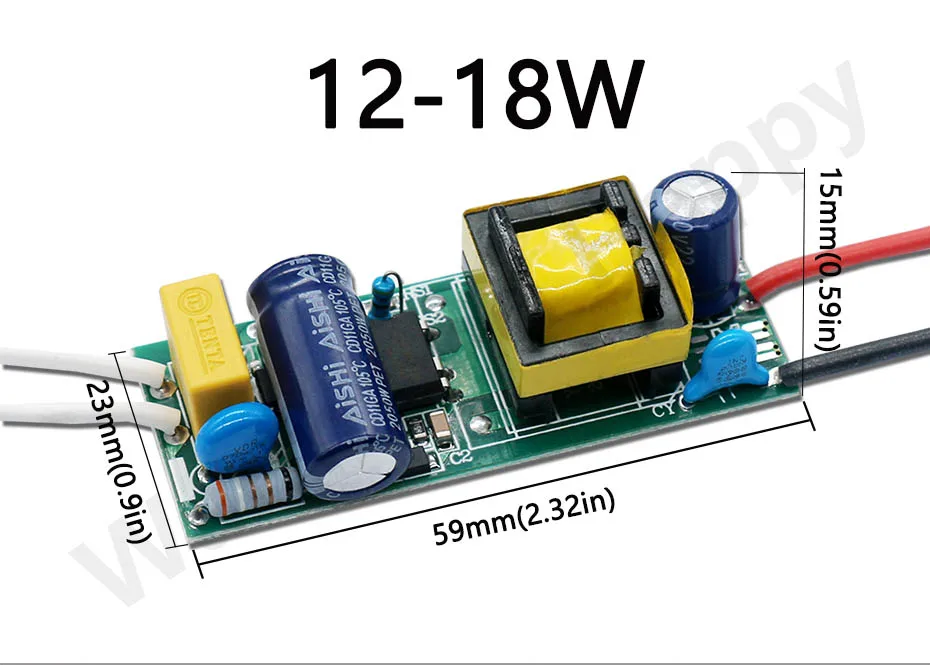

12-18W
12-18W LED Driver (Use 3 years)
Input Voltage: AC90-265V
Load test Output Voltage: DC36-65V
Output Current: 280-300mA
No-load test: Output Voltage: DC90V
(Danger! No-load testing is forbidden, and the test data is inaccurate.)

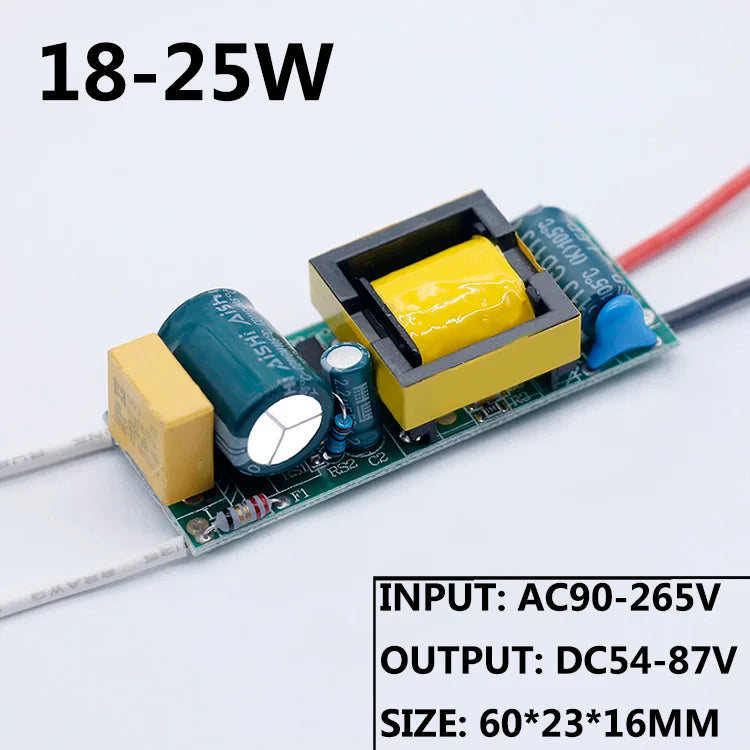

18-25W
18-25W LED Driver (Use 3 years)
Input Voltage: AC90-265V
Load test Output Voltage: DC54-87V
Output Current: 280-300mA
No-load test: Output Voltage: DC135V
(Danger! No-load testing is forbidden, and the test data is inaccurate.)

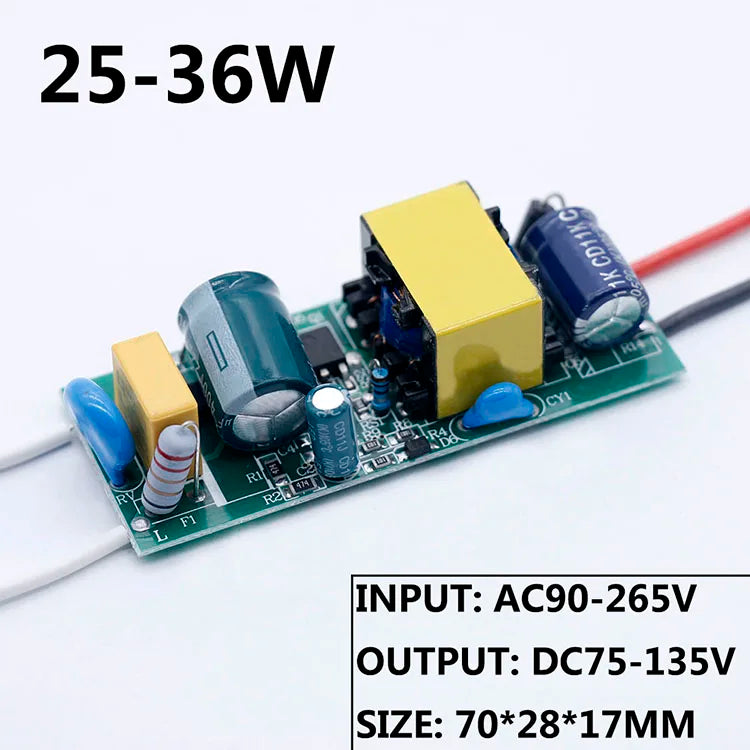

25-36W
25-36W LED Driver (Use 3 years)
Input Voltage: AC90-265V
Load test Output Voltage: DC75-135V
Output Current: 280-300mA
No-load test: Output Voltage: DC135V
(Danger! No-load testing is forbidden, and the test data is inaccurate.)
Advantage
1-Transformer
Bold copper wire
Power is sufficient and temperature is low.
2-Chip
Adopting the first-line brand IC-Aishi
High quality intelligent constant current
Overvoltage protection, overload protection,
overheat protection, short circuit protection
No flicker
3-Electrolytic Capacitor
High frequency low resistance capacitor
In theory, if the LED driver is used for 8 hours a day, it can be used for 3 years. If the LED driver uses a temperature below 70 ° C, it can even be as long as 5 years.
4-Processing Technology
All use mechanized patches, efficient and stable. Eliminate manual soldering and lead to poor contact of electronic components.
5-Application Place
LED track light / LED bulb
LED Spotlight / LED Bulb / LED Corn Light
LED Strip Light / LED Tube Light / LED Table Lamp
LED panel light / LED chandelier / living room lamp
