Heltec WiFi LoRa32 V3 Node Arduino Board LoRa 32 SX1262 ESP32-S3 Wifi BLE SMA Antenna IPEX for Meshtastic IoT Tracker
Heltec WiFi LoRa32 V3 Node Arduino Board LoRa 32 SX1262 ESP32-S3 Wifi BLE SMA Antenna IPEX for Meshtastic IoT Tracker
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Hign-concerned Chemical: none
Model Number: WiFi LoRa 32 V3
Intergrated Feature: WiFi 802.11b/g/n,bluetooth
Demo Board Type: RISC-V
Origin: Mainland China
Certification: CE,FCC

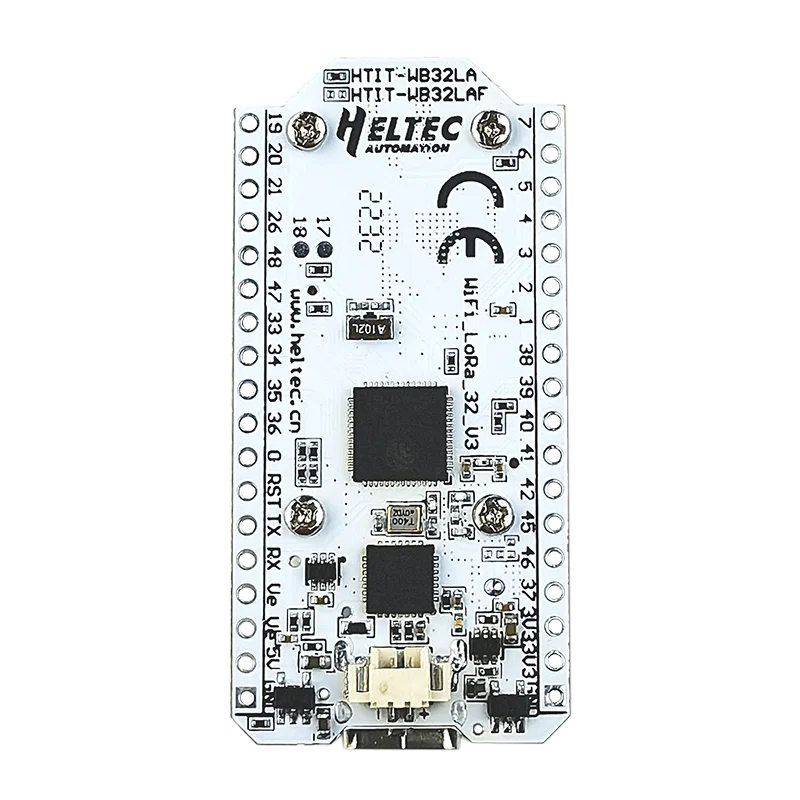

Master Chip: ESP32 S3FN8 (Xtensa 32 bit lx7 dual core processor)
LoRa Node Chip: SX1262
USB to Serial Chip: CP2102
Frequency: 470~510MHz, 863~928MHz
Max. TX Power: 20±2dBm
Max. Receiving sensitivity: -136dBm@SF12 BW=125KHz
Wi-Fi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth 5 (LE)
Battery: 3.7V lithium battery power supply and charging
Function: ESP32 LoRa WiFi BLE
Dimensions: 50.2 * 25.5* 10.2 mm

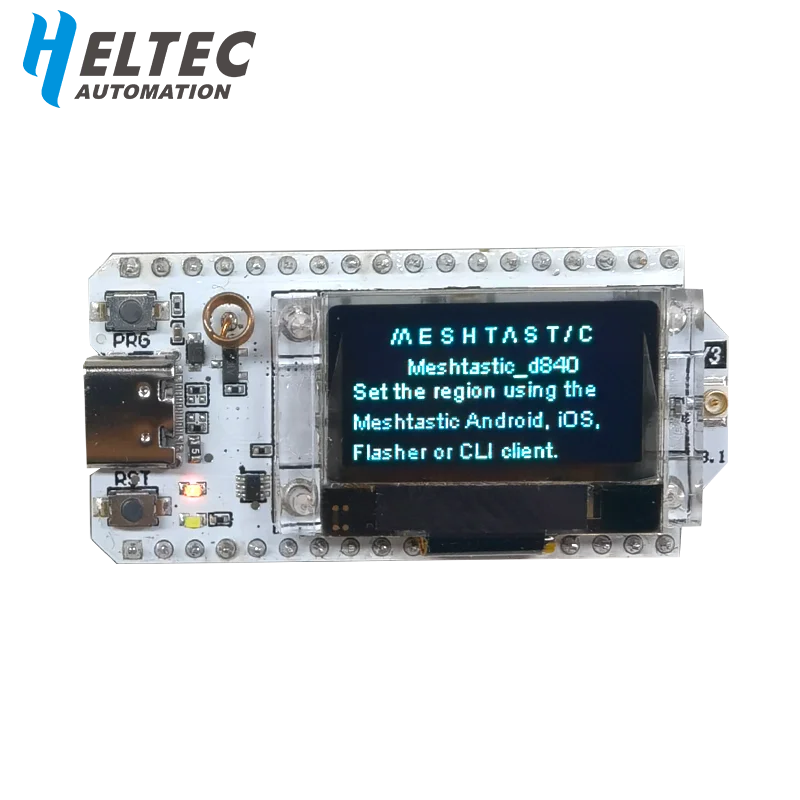

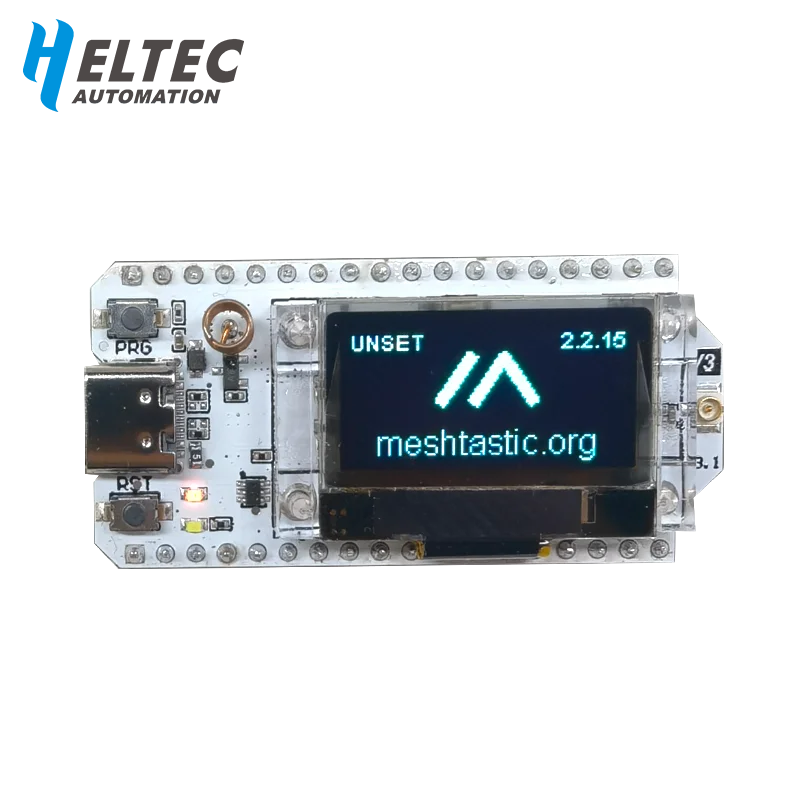

Supported: meshstatic
Description
Why do we need Maker series products?
Summary

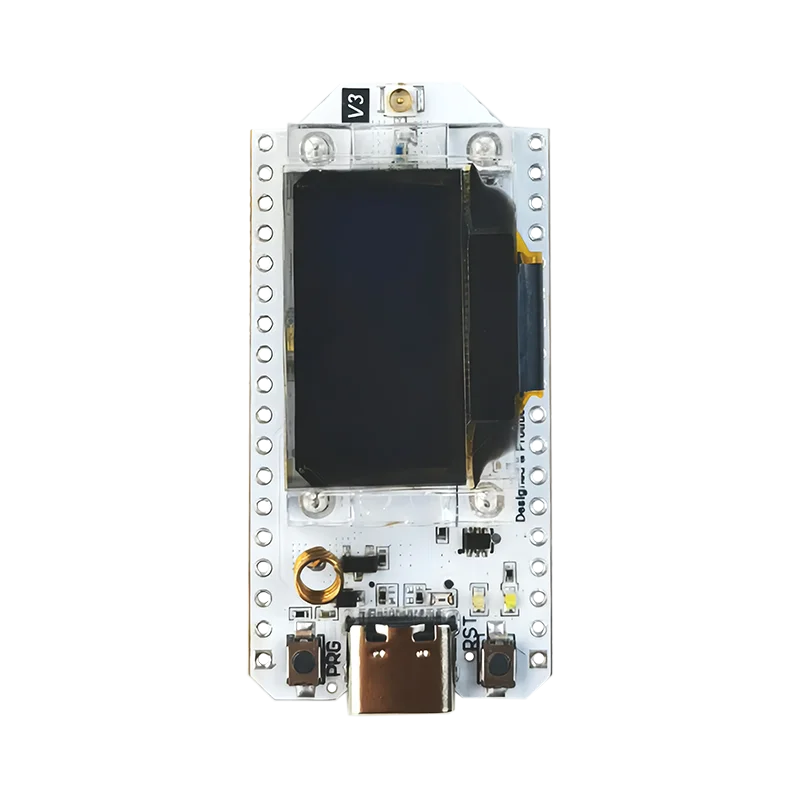

WiFi LoRa 32 (V3) is a classic IoT dev board designed & produced by Heltec Automation. Since its launch in 2017, it has been loved by developers and makers. Widely used in numerous excellent open-source projects and directly made into products for LoRa/LoRaWAN features.
The newly launched V3 version has the same pin sequence as the V2 version and retains Wi-Fi, BLE, LoRa, OLED display, and other functions.
WiFi LoRa 32 (V3) supports the following development methods:
Compared to WiFi LoRa 32 (V2), V3 has made the following upgrades:
WiFi LoRa 32 is compatible with the following open-source projects:
We also provide a standard ESP32 Arduino LoRaWAN library:
This library is already included in the Heltec ESP32 Arduino Framework by default.
Resource
Heltec ESP32 Arduino Framework(Include ESP32 Arduino LoRaWAN library)
More info about Heltec products:
Company Overview
●Chengdu Heltec Automation Technology Co., Ltd. ( English abbreviation Heltec Automation).
●At present, The company's research and development and production include OLED dot matrix screen, electronic ink screen, IoT series products, LoRa supporting solutions and high-precision temperature controllers with automatic control algorithms as the core.
●At present, there is a strong technical research and development team, a scientific production and manufacturing platform and a strict quality management system.
Our Services& Strengths
Stable performance, cost-effective products, high-quality and superior service, our products have not only gained a good reputation in the country, but also received high-quality evaluation in France, Germany, Russia, the United States, South Korea and other countries.
1). Rigorous quality assurance system.
2). High level of service awareness.
3). High quality team.
4). Components use well-known brands.
5). Quick response customer program.
6). Self-owned processing plant, rapid production, equipped with automatic SMT placement machine, automatic screen printing machine and reflow oven.
