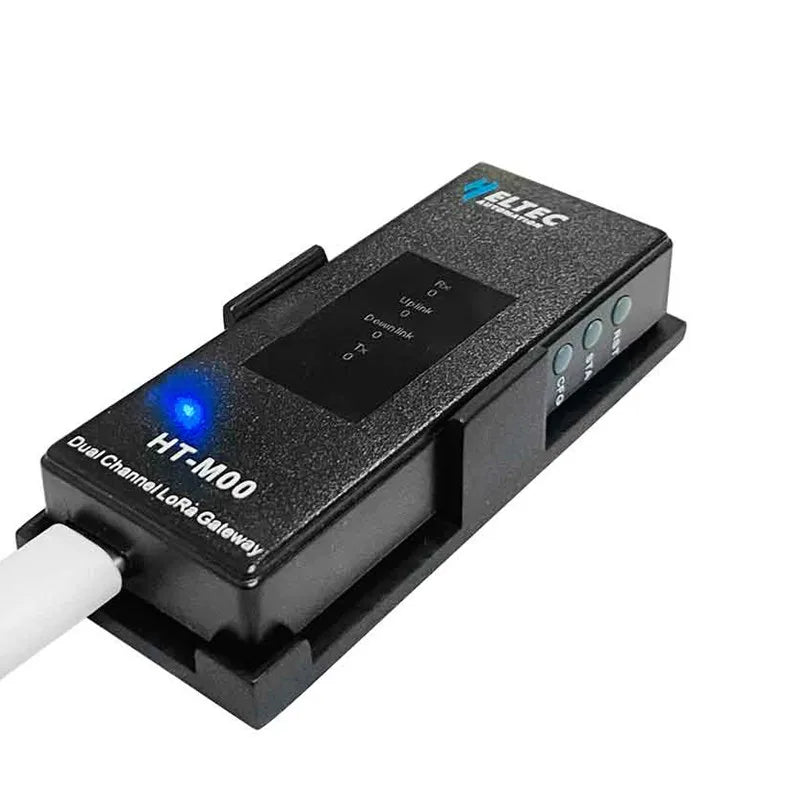

HT-M00 Dual Channel LoRa Gateway:

Note:

Low-cost dual-channel LoRaWAN gateway Free experience cloud server for a limited time

When using the HT-M00 gateway, using nodes other than the company's CubeCell series, you need to change the node's transmit preamble length to 16 (the default is 8).

If the preamble length is not modified to 16, only SF7 can be received.

Over View

CE Certificate

ESP32 + SX1276

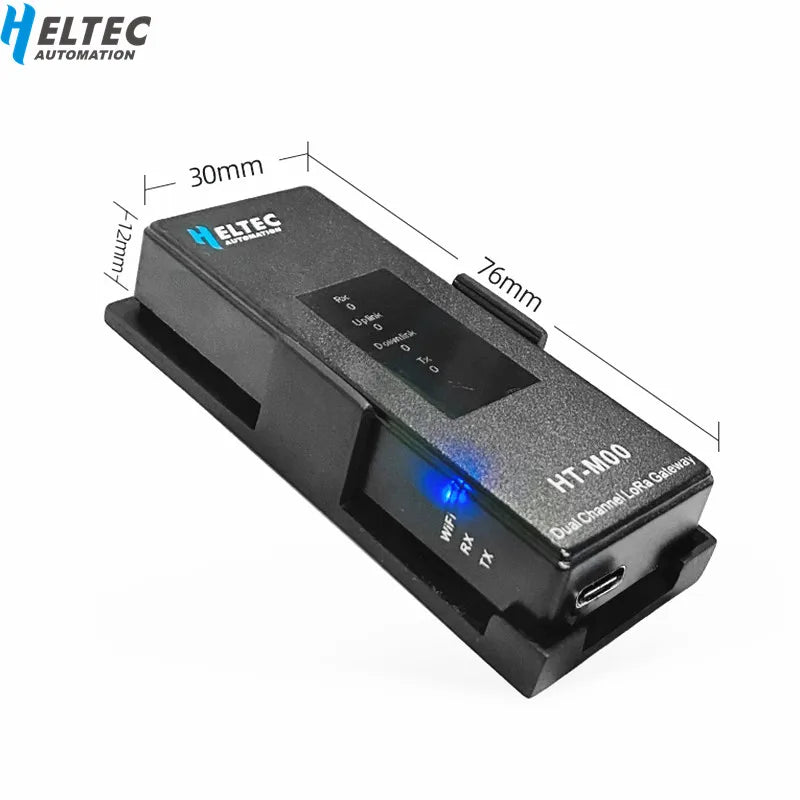

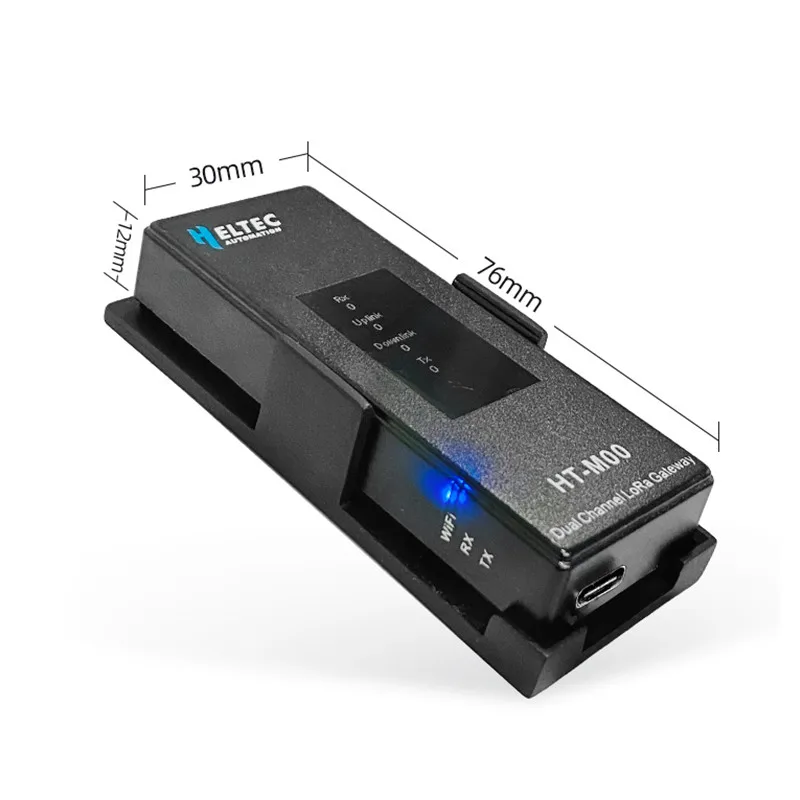

Size: 75 x 30 x 13mm

Emulates LoRa demodulators

Automatic adaptive spread spectrum factor, SF7 to SF12 for each channel is optional

Maximum output: 18 ± 1dBm

Communication interface Type-C USB

The power supply voltage:5V

Support for LoRaWAN Class A, Class C protocols

Frequency range:

Europe – 868MHz ISM band (863MHz to 870MHz range)
Europe – 433MHz ISM band
USA/Australia – 915MHz ISM band (902MHz to 928MHz range)
China – 470MHz ISM band (470MHz to 510MHz range)

Technical Parameters

Main control chip:esp32

LoRa RF chip :SX1276

Working Band (optional):EU_433, CN_470_510, EU_863_870, US_902_928

LoRa maximum output power:18dB ± 1dB

Receiving sensitivity

Interface:USB Type-C x 1

USB to Serial chip:CP2102

size :75 x 30 x 13mm

Working temperature: -40 ~ 80 ℃

Test Information

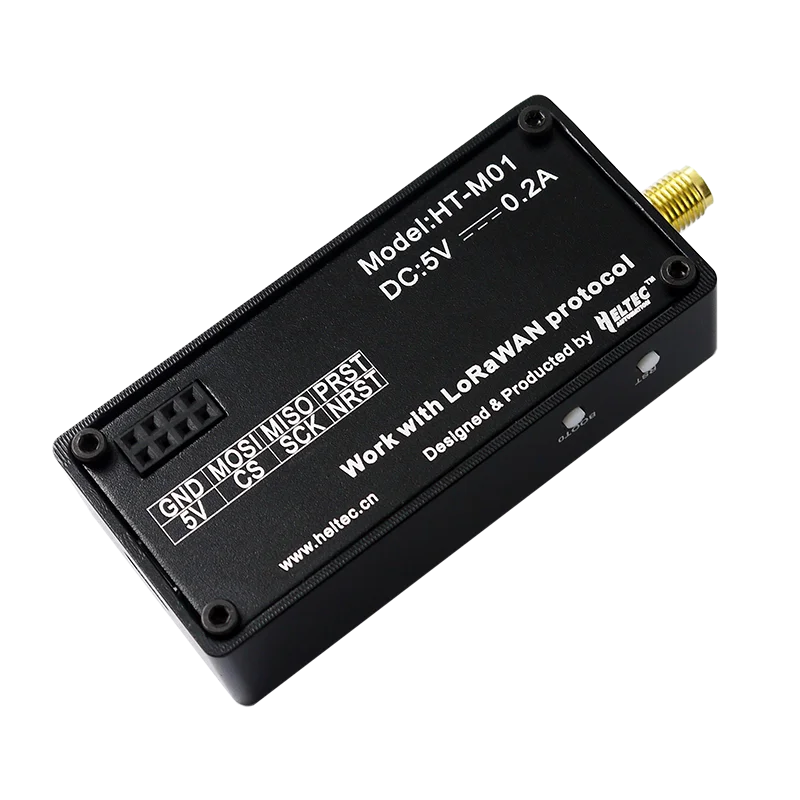

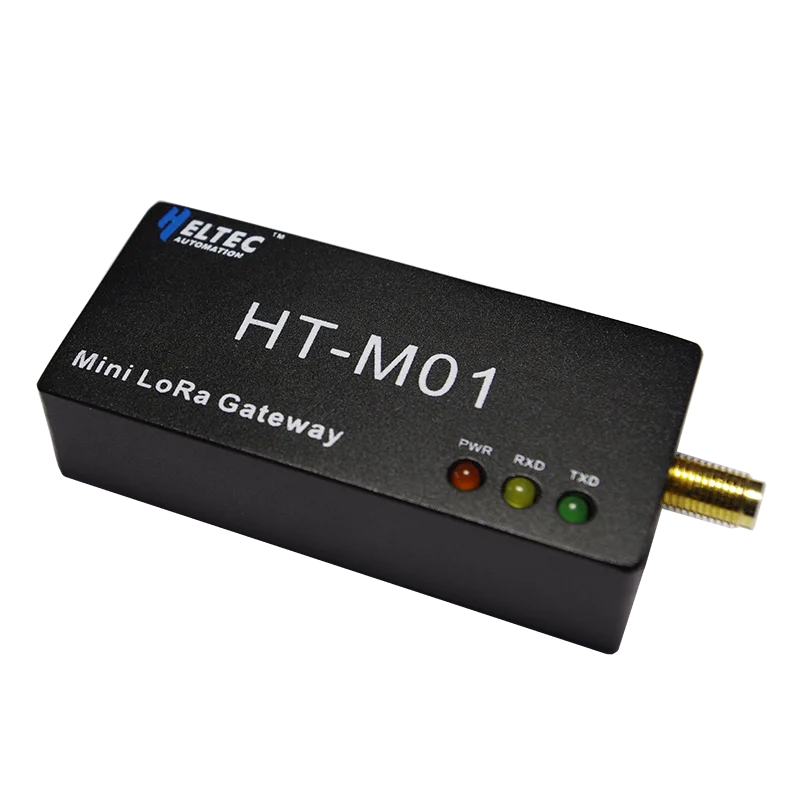

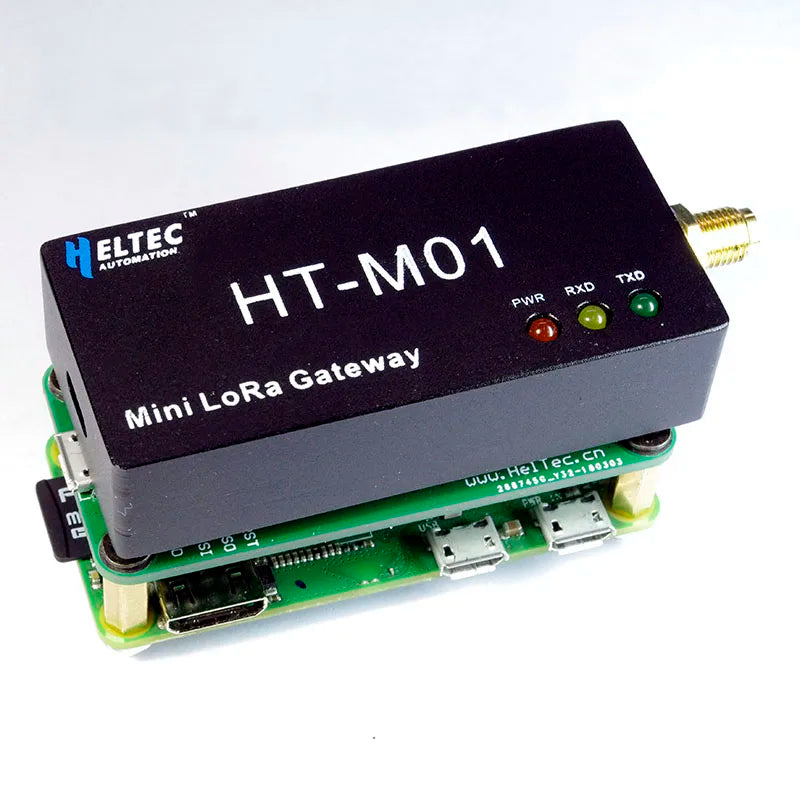

HT-M01 Mini LoRa Gateway:

HT-M01 is a picocell LoRa gateway based SX1308 baseband chip, it’s must work with other operating systems (Windows® or Linux), when we designed it, we define this product positioning is convenient user authentication LoRa communication scheme. HT-M01 support both SPI and USB interface can work with Windows® (7, 8, 10 or higher) or Linux (Raspberry Pi®). With well-designed structure, the great heat from SX1308 can be transfer to the Aluminum shell, makes HT-M01 works more stable than other products of the same type.

CE Certificate

SX1308 digital baseband chip

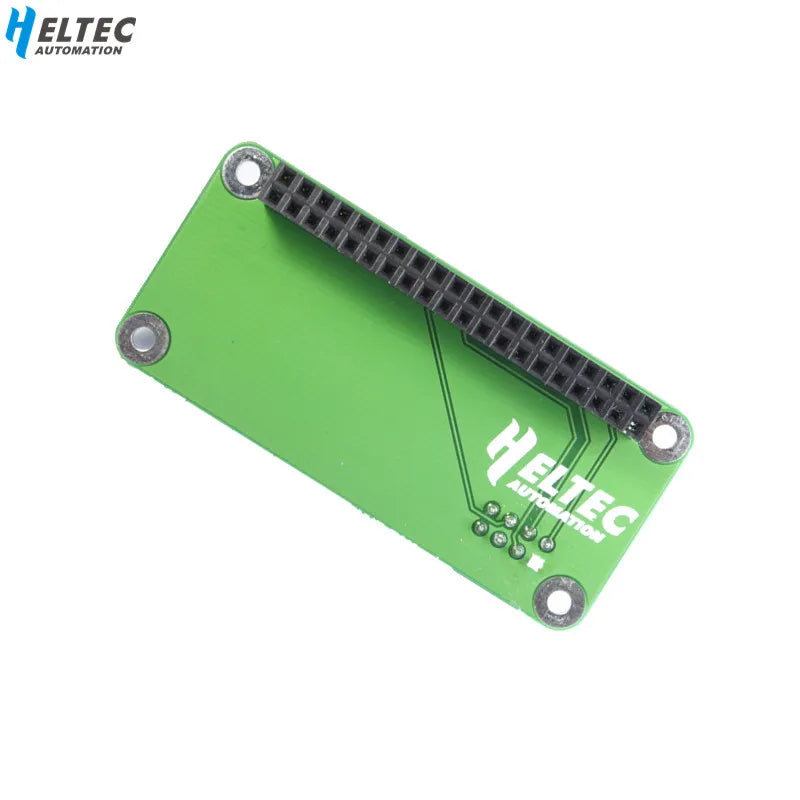

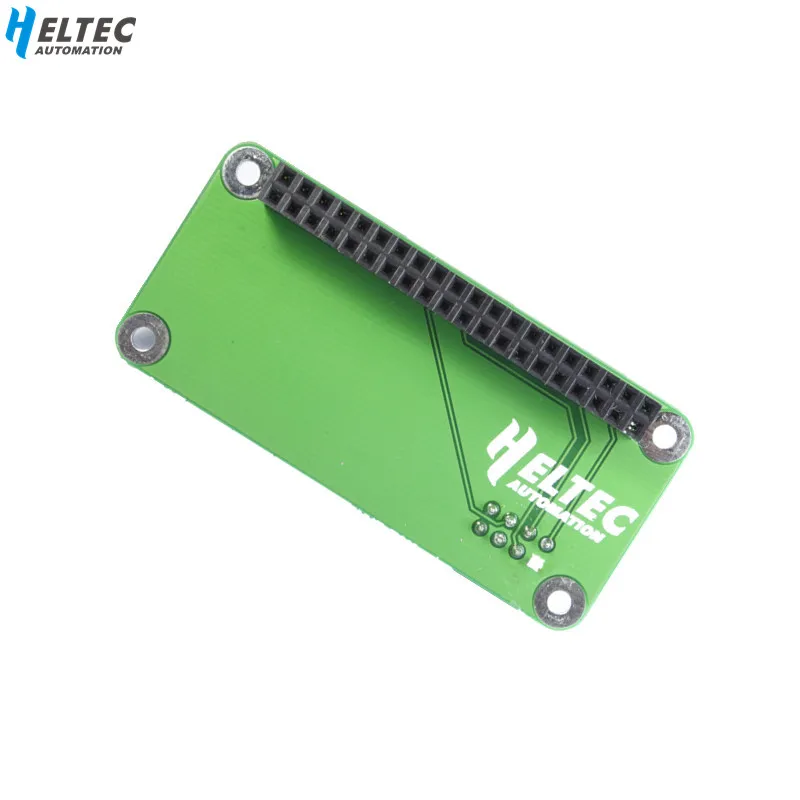

Size: 66(+10) x 30 x 15mm (can assemble with raspberry pi ZERO via a special converter board)

Emulates 49x LoRa demodulators and 1x (G)FSK demodulator

10 programmable parallel demodulation paths

Dynamic data-rate adaptation (ADR)

Automatic adaptive spread spectrum factor, SF7 to SF12 for each channel is optional

Maximum output: 20 ± 1dBm

Up to -139dBm sensitivity with SX1257 or SX1255 Tx/Rx front-end

Communication interface SPI or USB

The power supply voltage:5V

Support for LoRaWAN Class A, Class C protocols

Through the unique heat conduction device to transfer heat to the aluminum housing, strengthen heat dissipation, make the operation more stable -20°C to 70°C maximum operating temperature range

Frequency range:
Europe – 868MHz ISM band (863MHz to 870MHz range)
Europe – 433MHz ISM band
USA/Australia – 915MHz ISM band (902MHz to 928MHz range)
China – 470MHz ISM band (470MHz to 510MHz range)
