SPECIFICATIONS

Brand Name: GHXAMP

Cabinet Material: Metal

Audio Crossover: Three-Way

Waterproof: No

Communication: Audio Line

Speaker Type: Combination

Channels: 2 (2.0)

Support APP: No

Battery: No

Category: Speakers

Use: HOME

Origin: Mainland China

Sound Mode: other

Voice Control: No

Power Source: DC

Power Source: None

Power Source: AC

Number of Loudspeaker Enclosure: 1

Input Power(W): 25-49 W

Input/Output: other

Intelligent Personal Assistant: none

Support Apt-x: No

Feature: None

Playback Function: DVD

Playback Function: Radio

Playback Function: CD

Playback Function: mp3

Playback Function: None

Display Screen: No

Certification: CE

Wi-Fi Music: Other

PMPO: NO.

Output Power: Other

Remote Control: No

Support Memory Card: No

Material: Metal

Display Screen: No

Built-in Microphone: No

Frequency Range: Other

Power: 90W

Frequency response range: F0-7300Hz

Sensitivity: 89DB

Net Weight: 696g/pcs

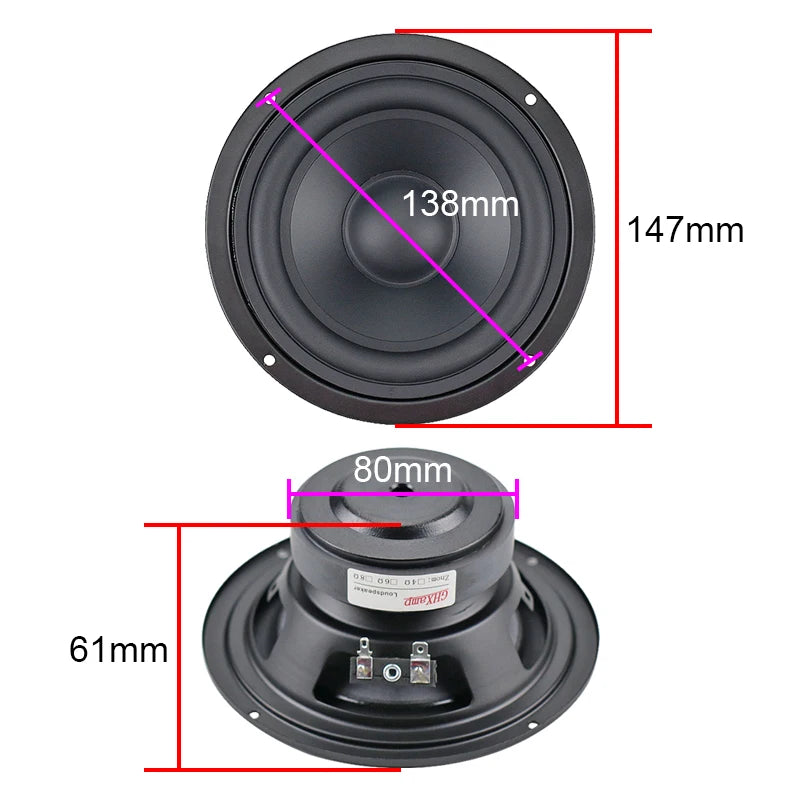

Outside diameter: 147MM

Diagonal screw hole: 138MM

Open Hole diameter: 113MM

Speaker Classification: Woofer

DJ speaker: yes

speaker unit: yes

Choice: yes

semi_Choice: yes



Tip: This Speaker DC Resistance about 5.5ohm, Impedance is 8OHM，Please be aware that。Thanks



Specification

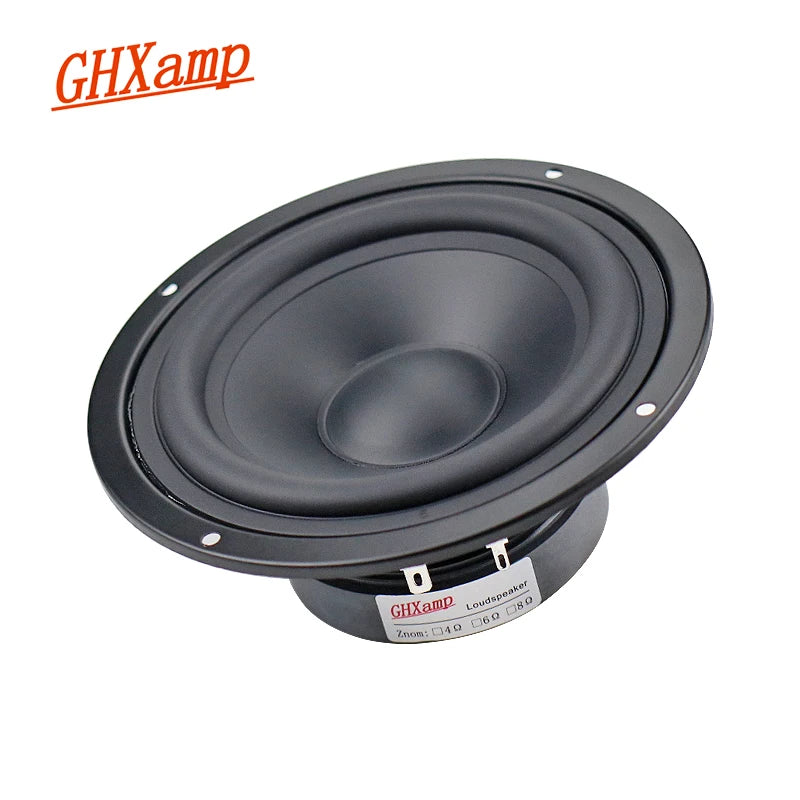

Brand:GHXAMP,Price for 1pc.

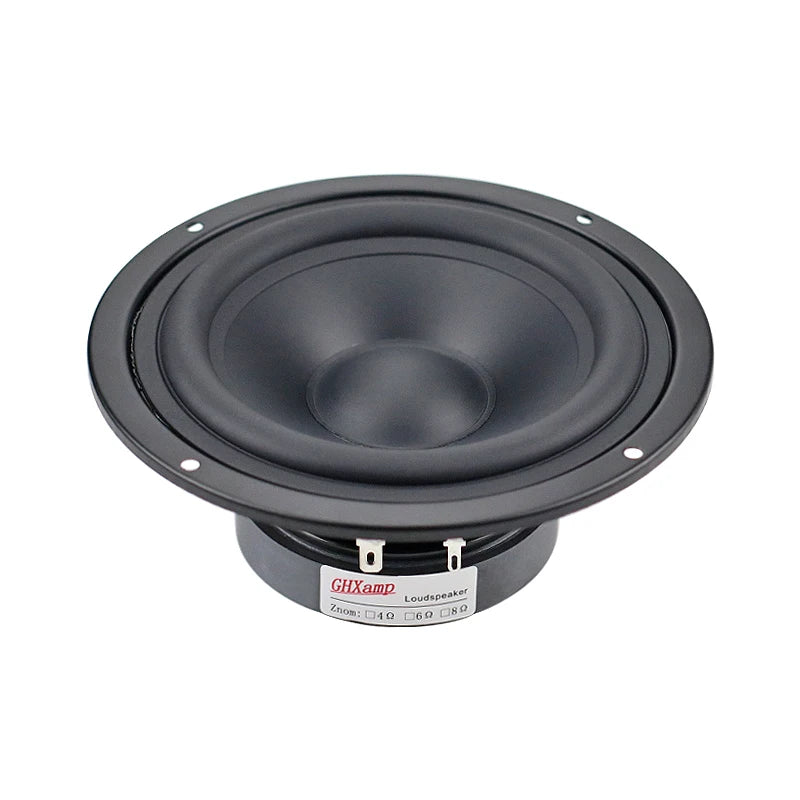

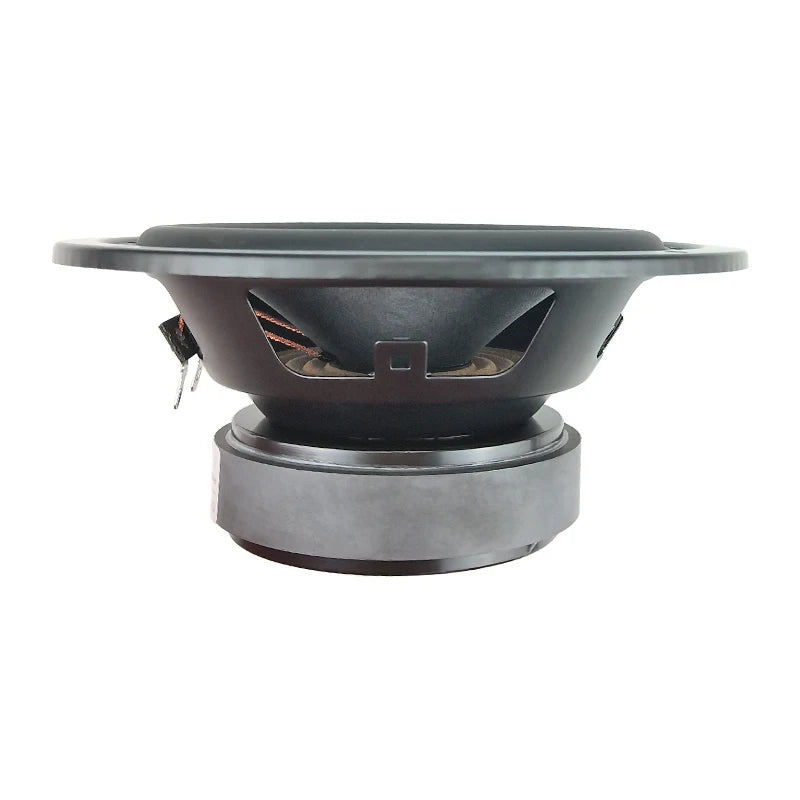

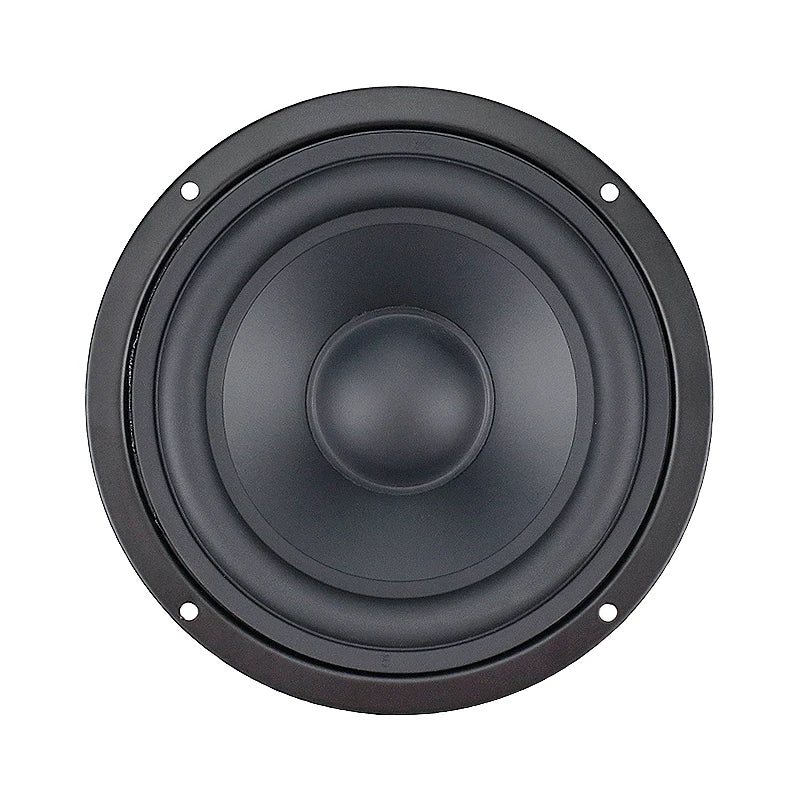

1. Speaker with all-metal cast iron frame, matte coated paper tray, rubber speaker side, soft voice, low frequency strong, is the enthusiast DIY bass selection.

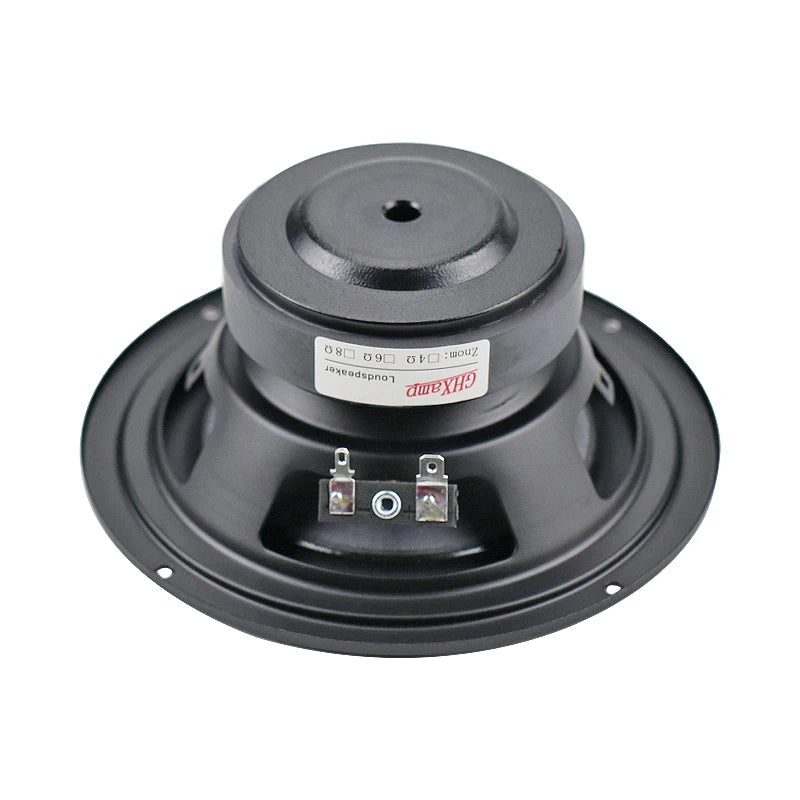

2. Magnetic tail hole cooling design to protect the voice coil good ventilation and heat dissipation.

3. Pure copper braided guide line, sound quality to a higher level

Max power: 90W

Rated Power :45W

DC resistance: about 5.5ohm

Impedance: 8OHM

Resonant frequency: 60Hz

Frequent frequency: F0-7300hz

Sensitivity: 89DB

Q value: 0.51Qts

Voice coil diameter: 25mm

Magnet diameter: 80mm

Speaker diameter: 147MM

Open Hole diameter: 113MM

NET Weight:0.696kg/pcs

Questions about DC impedance:

The impedance is dynamic and the DC resistance is static!
Impedance = resistance *1.2-1.4 times
The impedance rises with the high frequency, and it changes dynamically. If the DC has about 6 ohms, the dynamic impedance is about 8 ohms.

The conventional impedance is 5-6 ohms, and the DC resistance is 3-5 ohms.
The conventional impedance is 7-8 ohms, and the DC resistance is 5-6 ohms.



Package included:

1pcs
