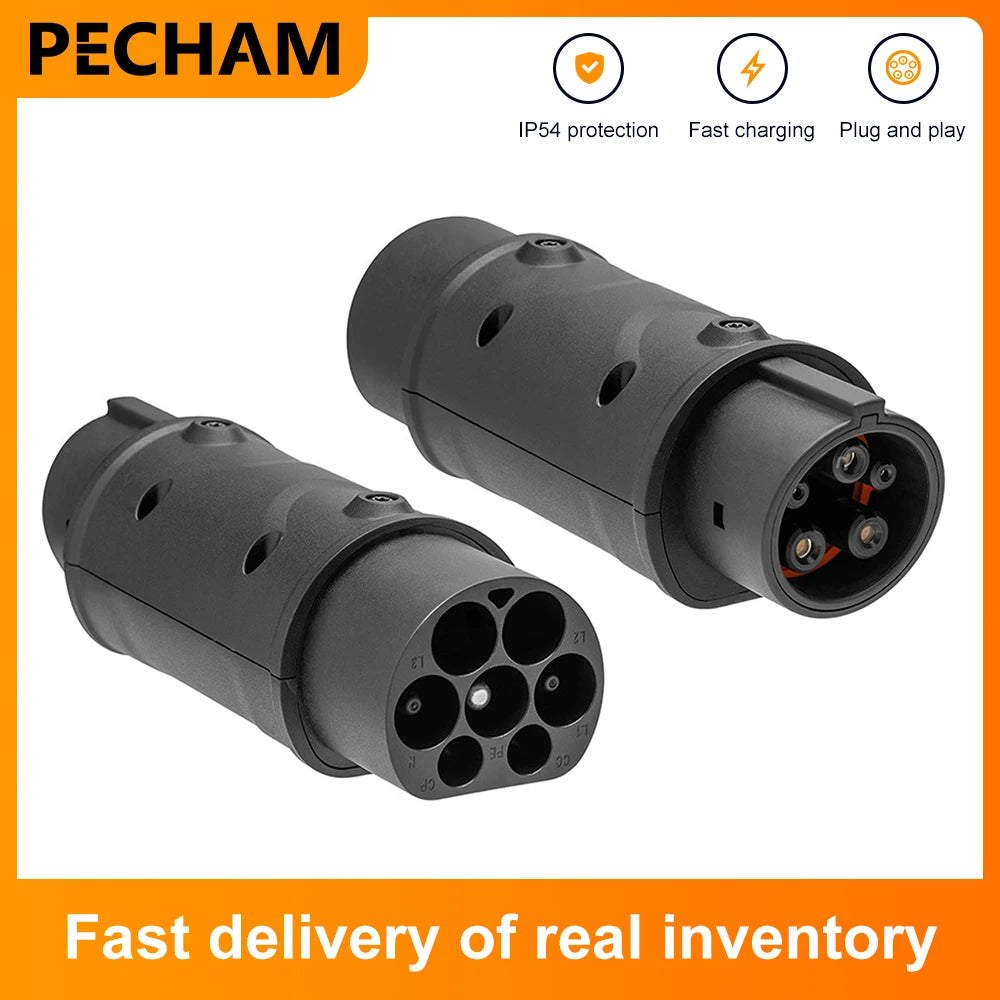

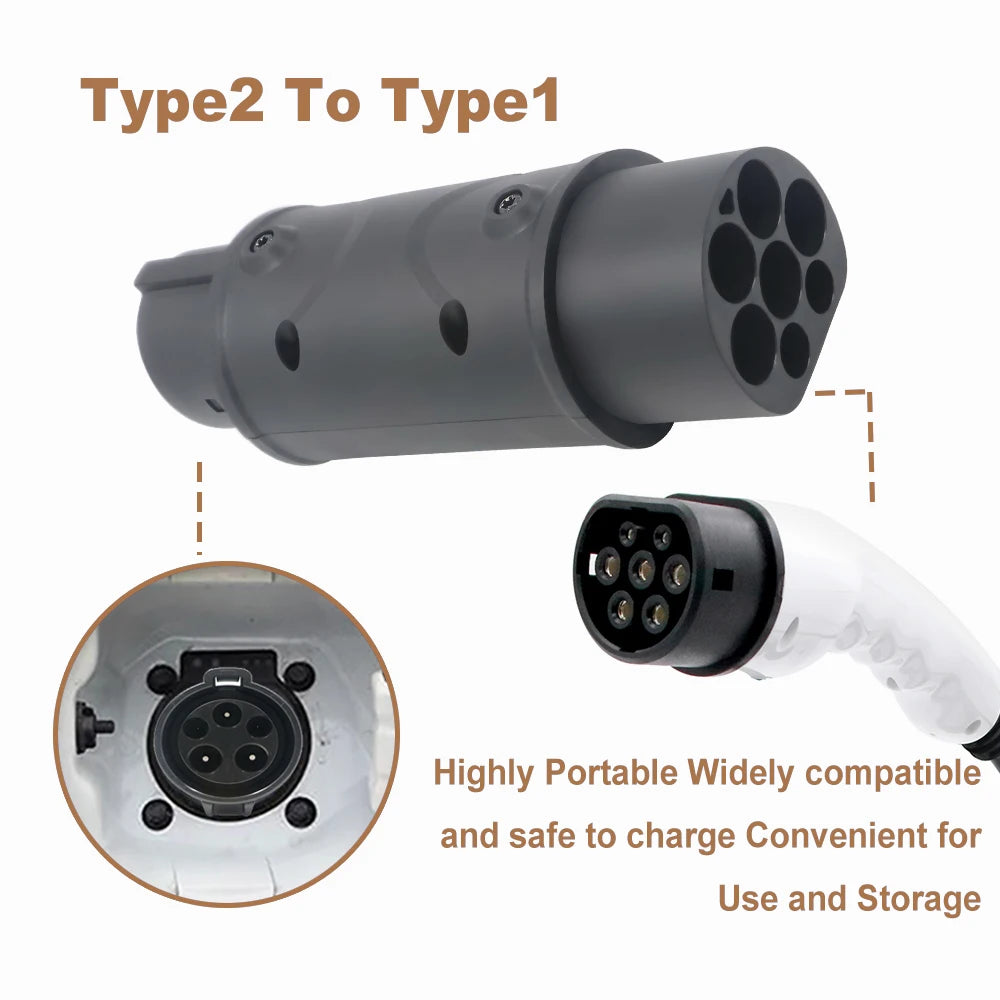

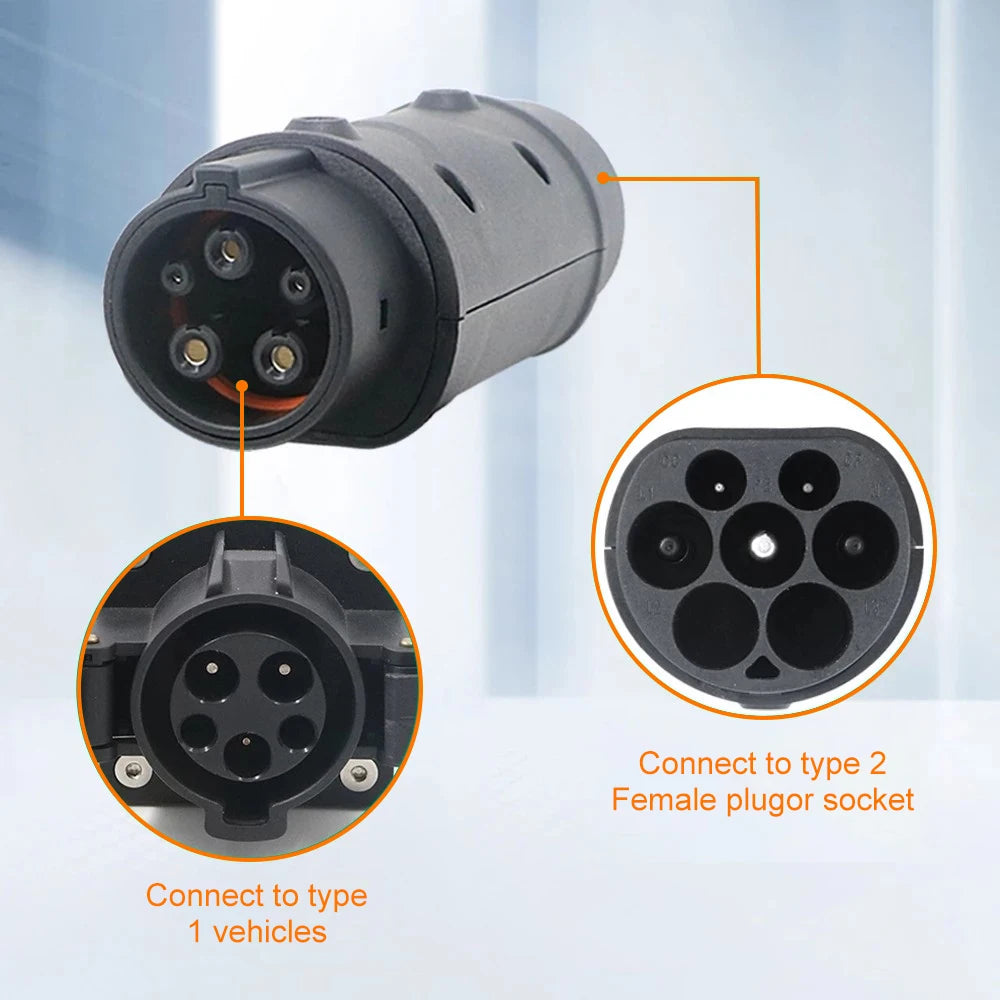

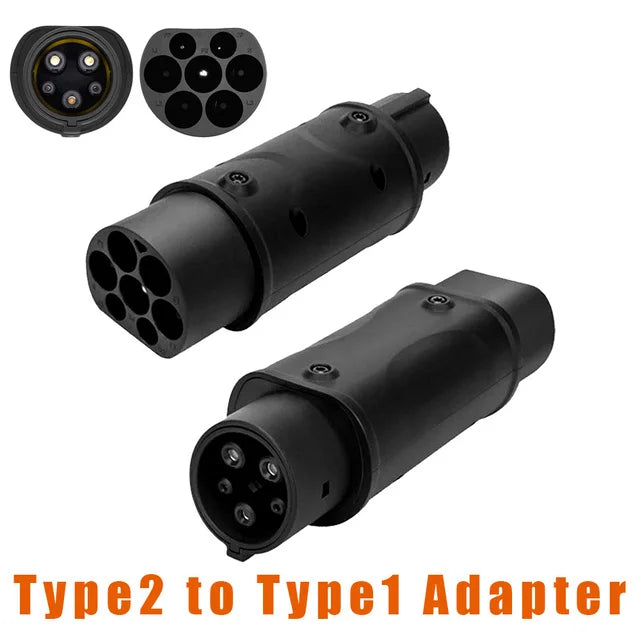

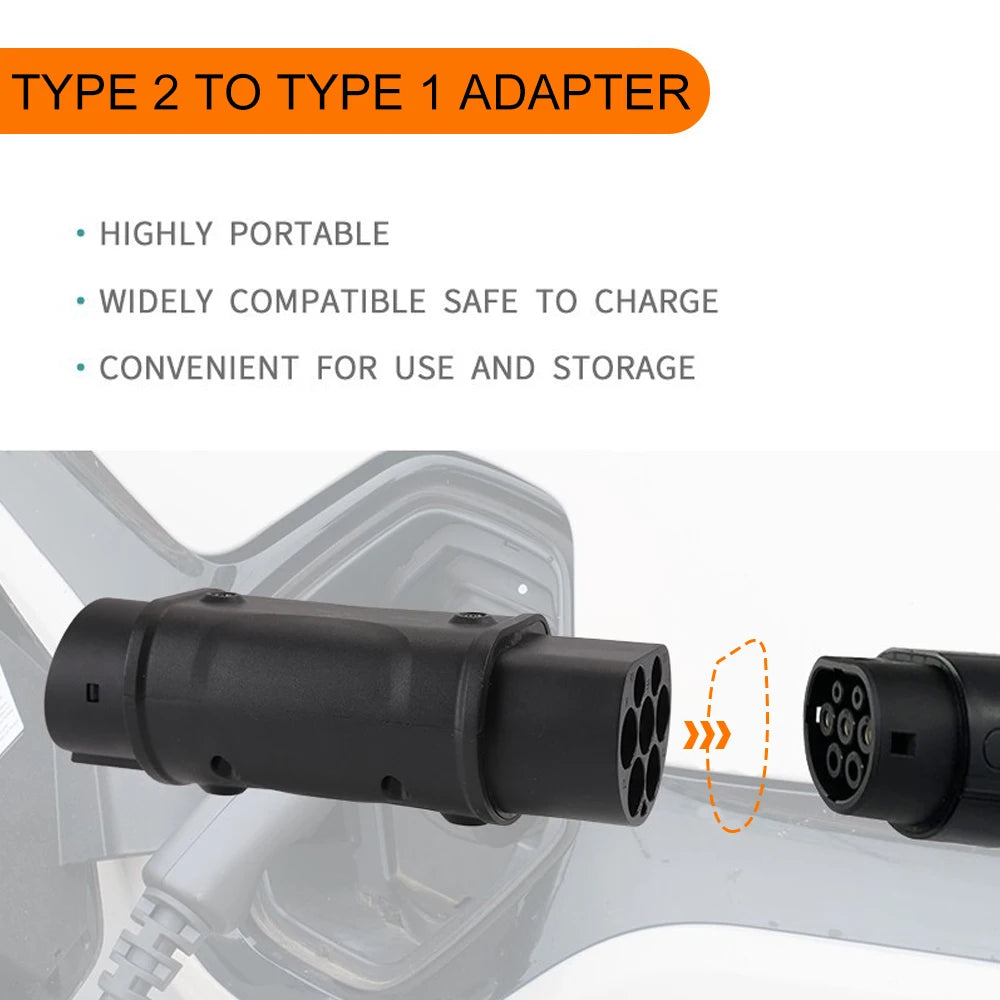

Electric Vehicle Charging Connector Type2 To Type1 16A/32A EV Car Charger Adapter Converter IEC 62196 SAE J1772 EVSE Accessories

Features

*Easy charging. With the AC EV charger adapter. Designed to maximize the charging potential and allows drivers to safely use J1772 or IEC 62196 charging stations, accessing many more charging points for a convenient on-the-road experience.

* High Quality. Copper alloy silver-plated contacts, current can pass better, superior quality external plastic, longer product life, the j1772 or IEC 62196 standard connection fits well, it is not easy to fall off, easy to use.

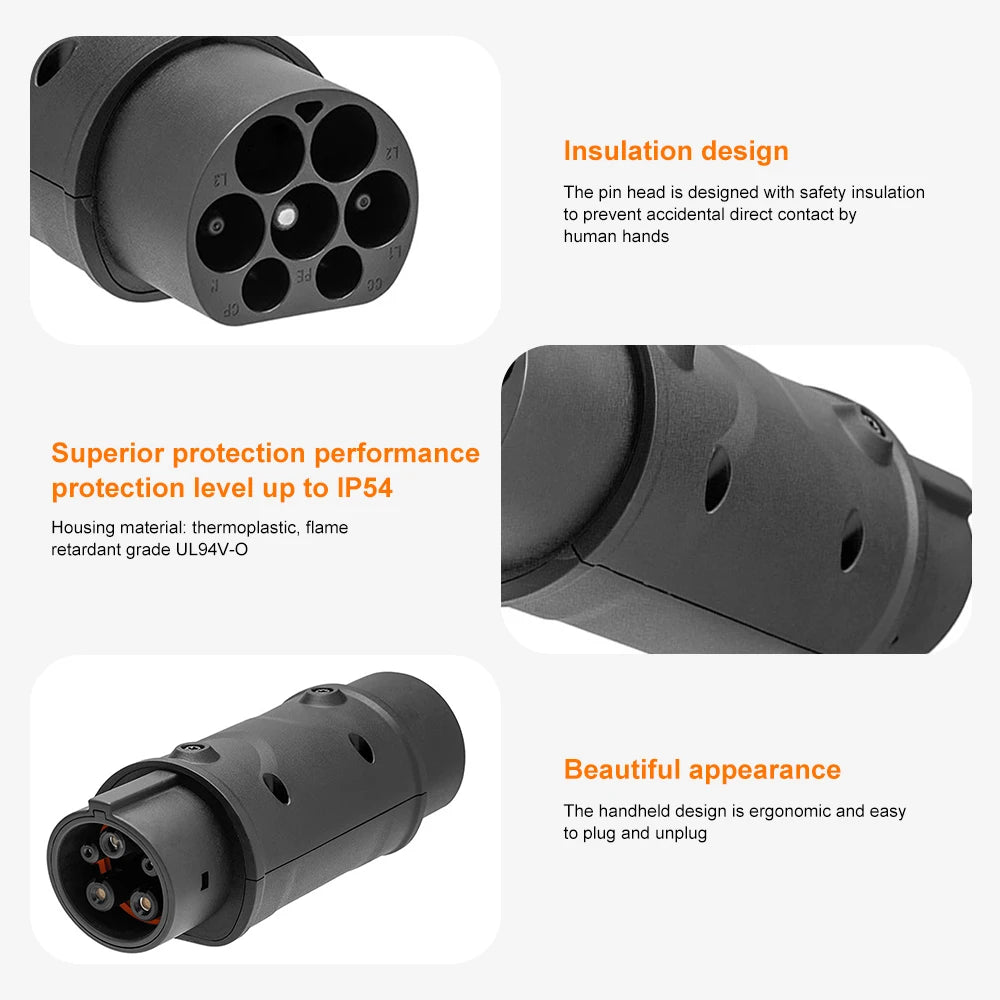

* The pin head adopts safety insulation design to prevent accidental direct contact with hands.

* Superior protection performance, protection level reaches IP54.

Specification

Name: Electric car charging adapter

Housing material: thermoplastic

Rated working current: 16A or 32A

Working voltage: 110V~250V

Insulation resistance: >1000MΩ (DC500V)

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact impedance:0.5mΩ Max

Flame retardant rating: UL94V-0

Mechanical life: no-load plugging and unplugging>10000 times

Insertion and extraction force when coupling: >45N＜80N

Pin: Copper alloy, silver plated on the surface + thermoplastic on the top

Working environment temperature:-30℃～+50℃

Packing included

1 X Charging Adapter
