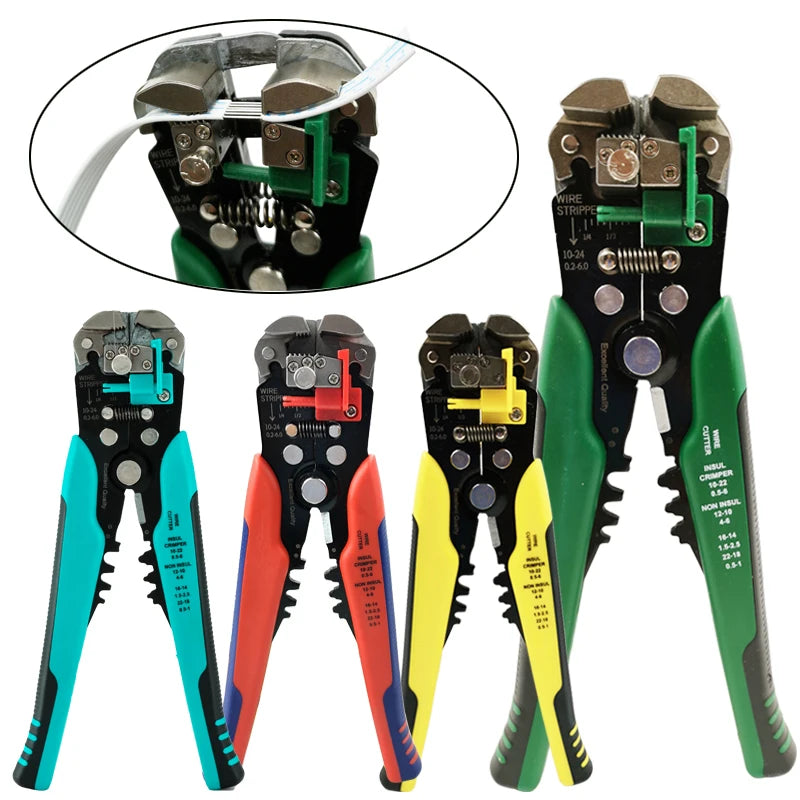

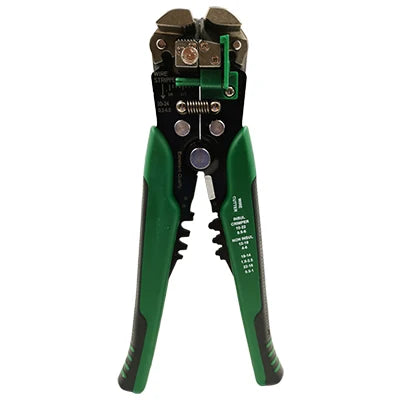

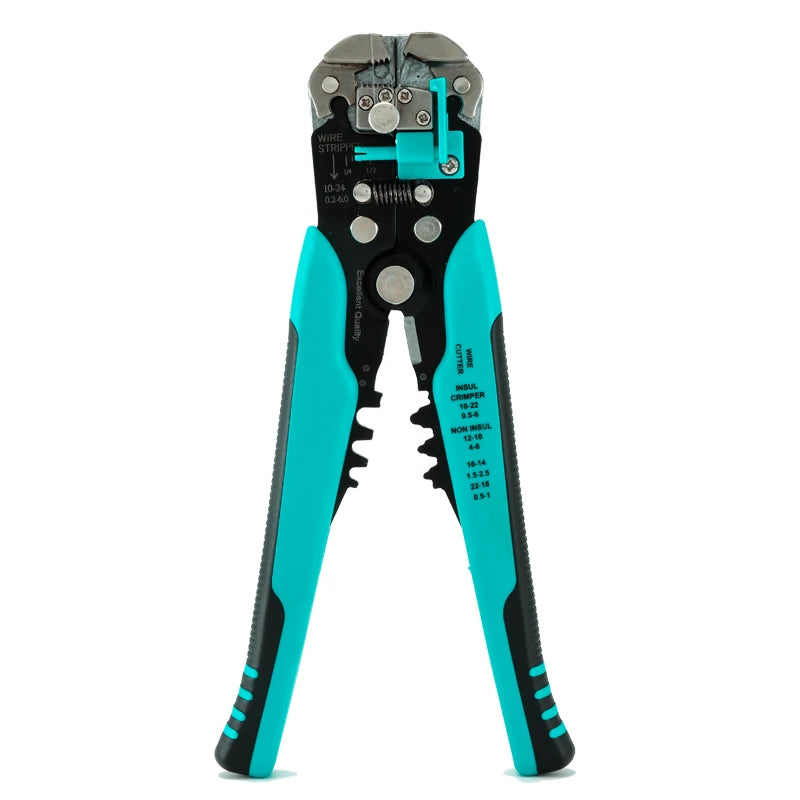

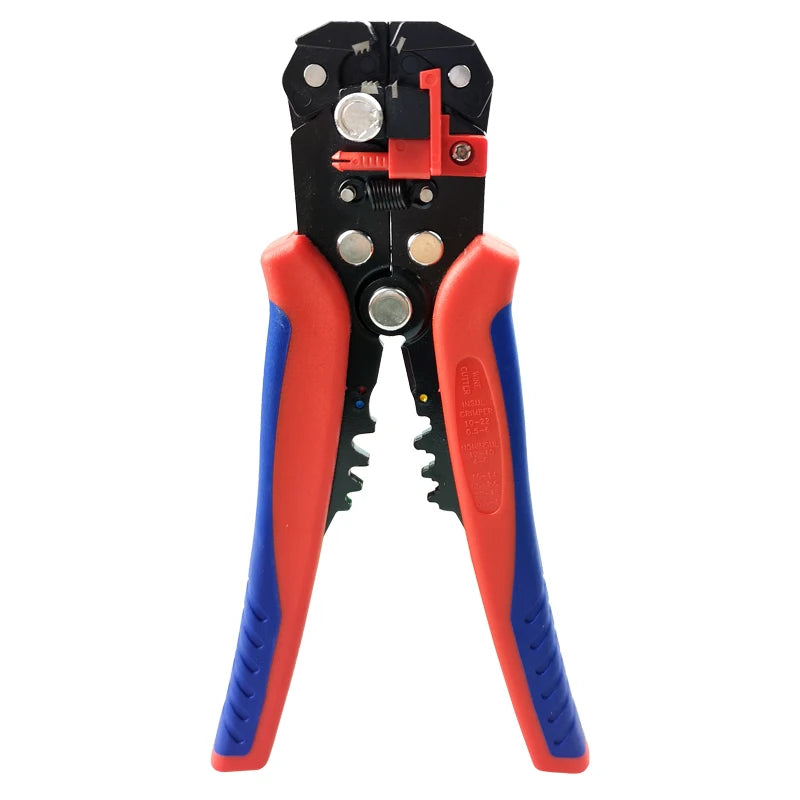

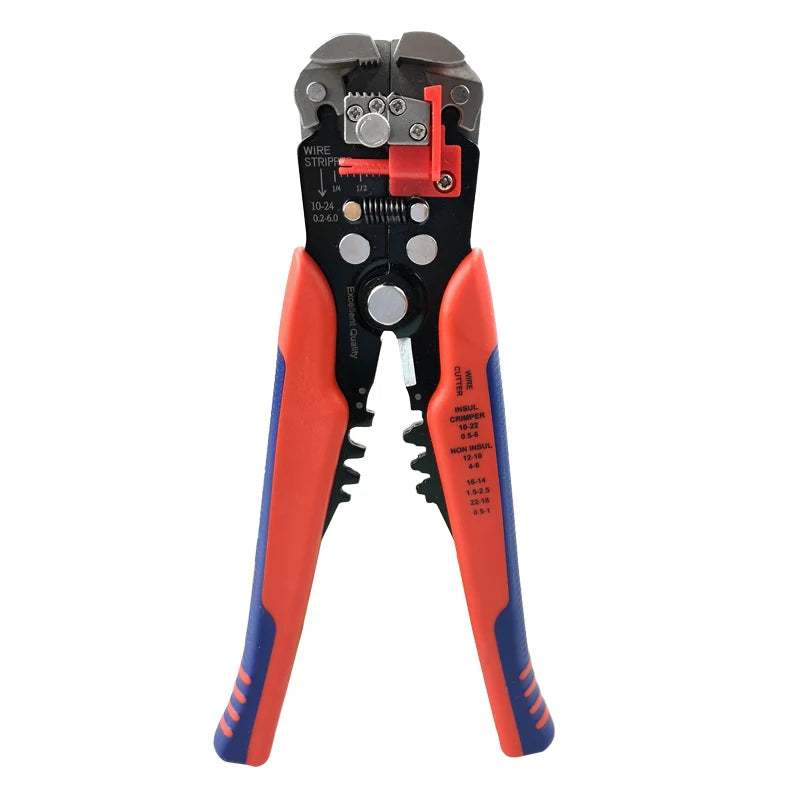

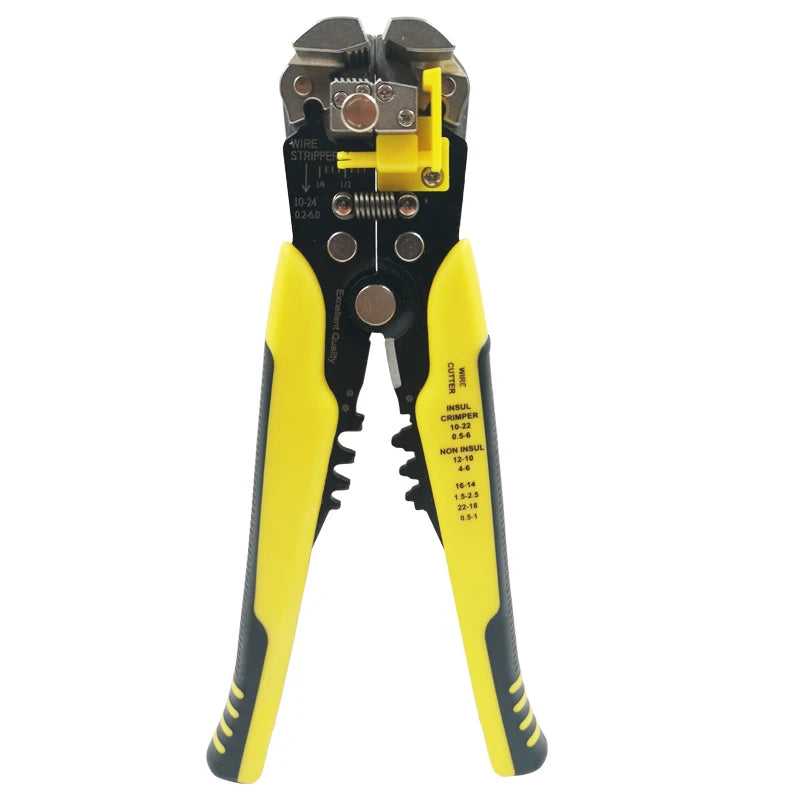

Product Name: 8 inch multi-function automatic wire stripper
Length: 205mm

material:
Head: zinc alloy
Cutter head: Cr12MoV, hardness HRC55-60, process wire cutting process.
Pliers: A3 heat treatment
Handle: PP+TPR

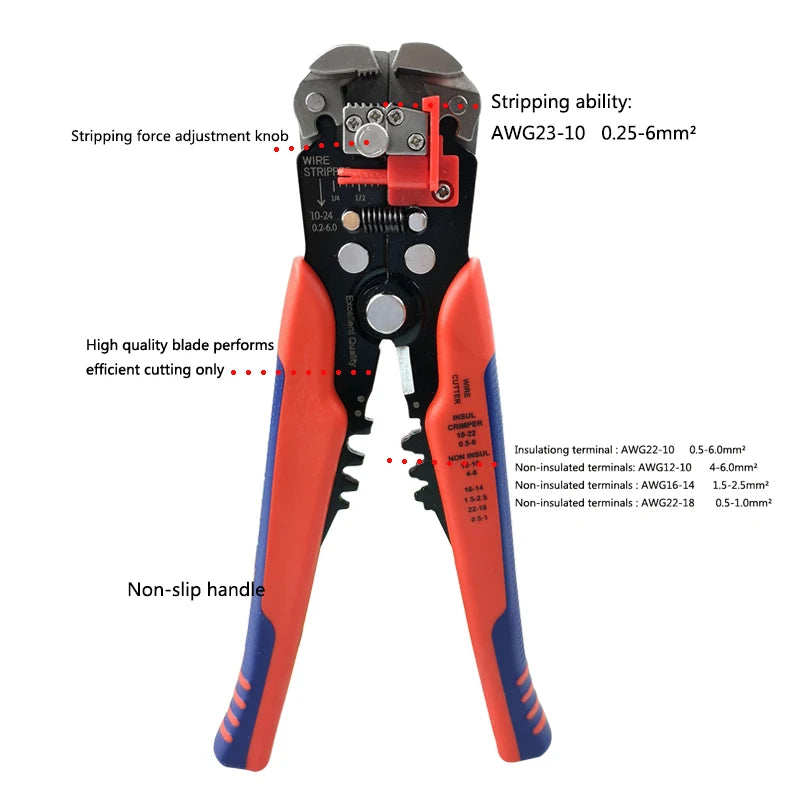

Features:

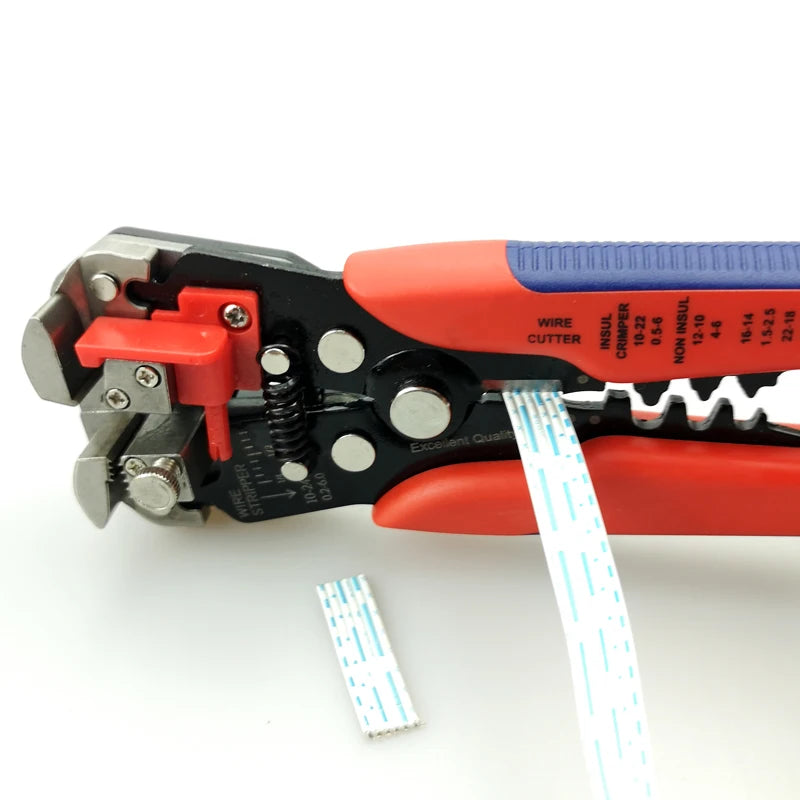

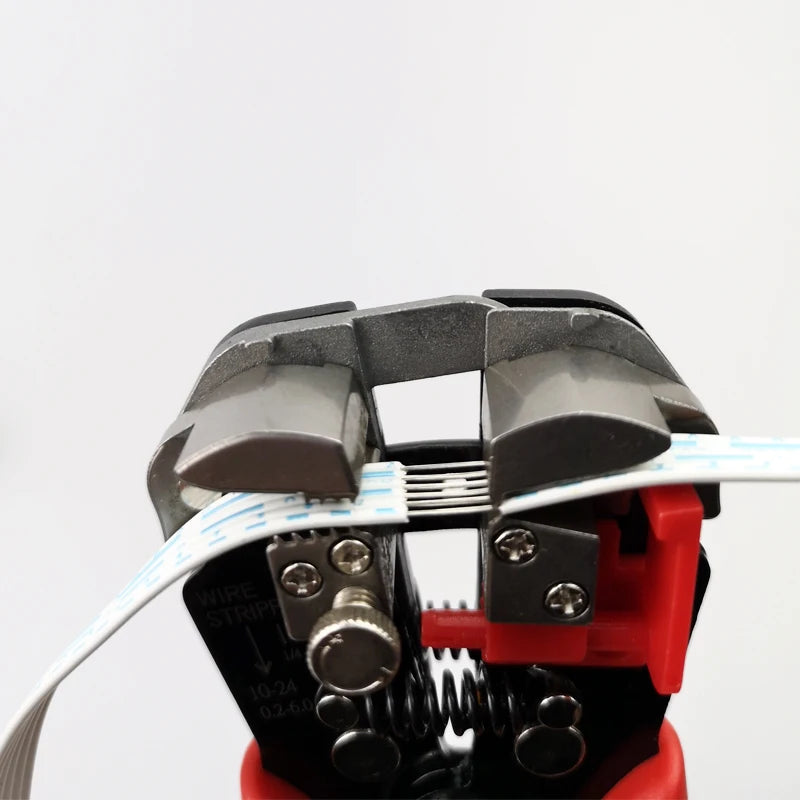

Stripping range: 24-10AWG/0.2-6mm2;
Cutting function

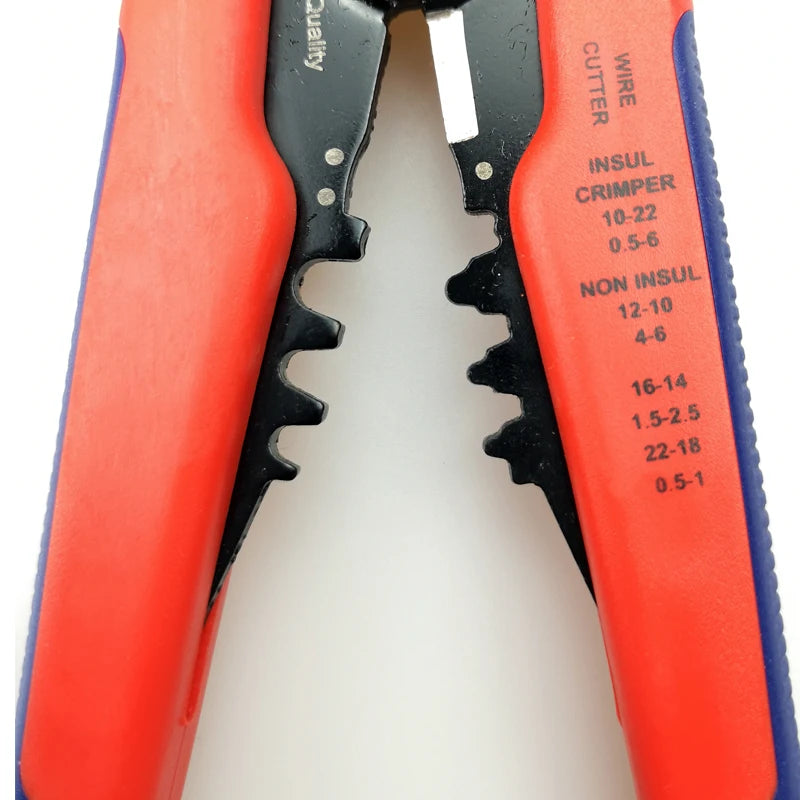

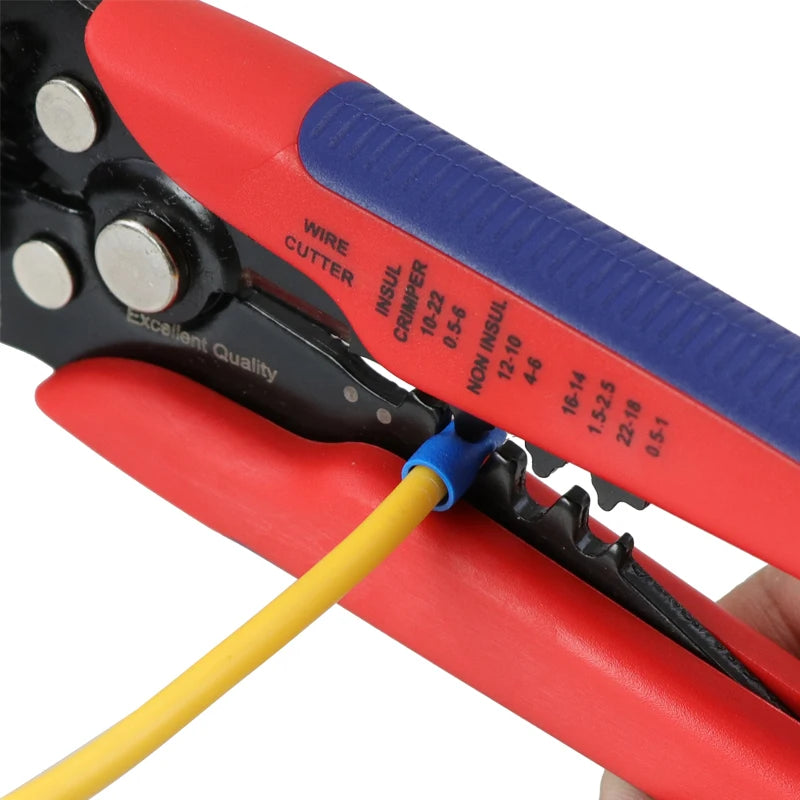

Terminal crimping: insulated terminal 22-10AWG/0.5-6mm2
Non-insulated terminal 12-10AWG/4-6mm2
Non-insulated terminal crimp: 16-14AWG/1.5-2.5mm2
Non-insulated terminal crimp: 22-18AWG/0.5-1mm2
How to use the adjustment screw:
1. Turn the adjusting screw to adjust the blade biting force, counterclockwise to reduce, clockwise increase
2. When peeling thin wires, please adjust the screws counterclockwise.
3. If the wire has a broken wire, please adjust the screw counterclockwise.
4. When it is difficult to strip or can not strip, adjust the screw clockwise.
