SPECIFICATIONS

Brand Name: Heltec Automation

Origin: Mainland China

Hign-concerned Chemical: none

Model Number: Wireless Tracker

Master Chip: ESP32-S3FN8

LoRa Chip: SX1262

GNSS Chipset: UC6580

Frequency: 433-510MHz, 863-923MHz

Max TX Power: 21±1dBm

Receiving Sensitivity: -134dBm

WiFi: 802.22b/g/n, up to 150Mbps

Bluetooth: Bluetooth LE: Bluetooth 5, Bluetooth mesh

Power Supply: 3.7V lithium battery power supply and charging

Operating Temperature: -20-70℃

Dimensions: 65.48*28.06*13.52mm

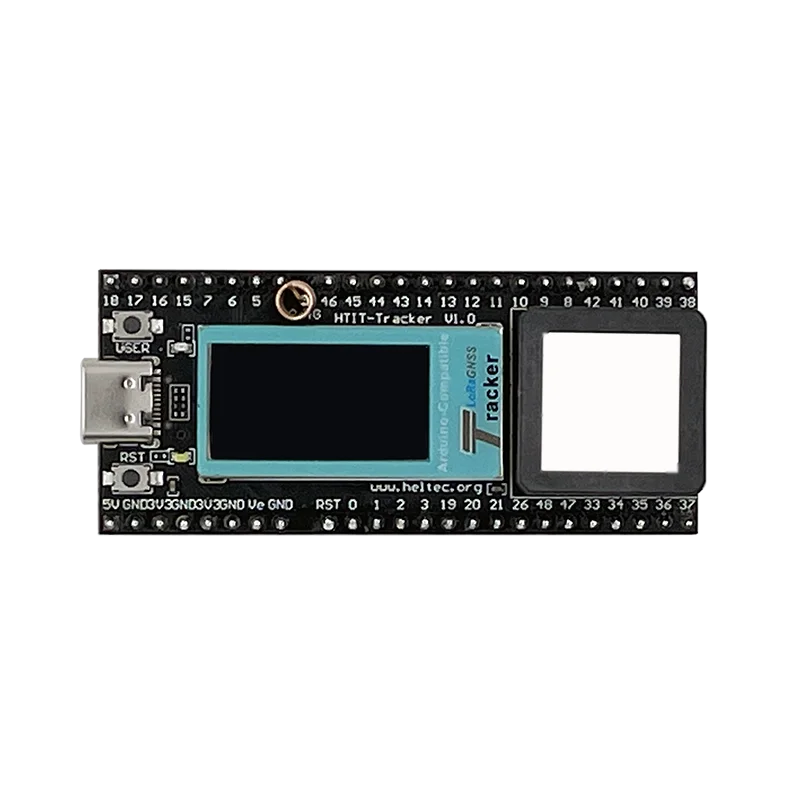

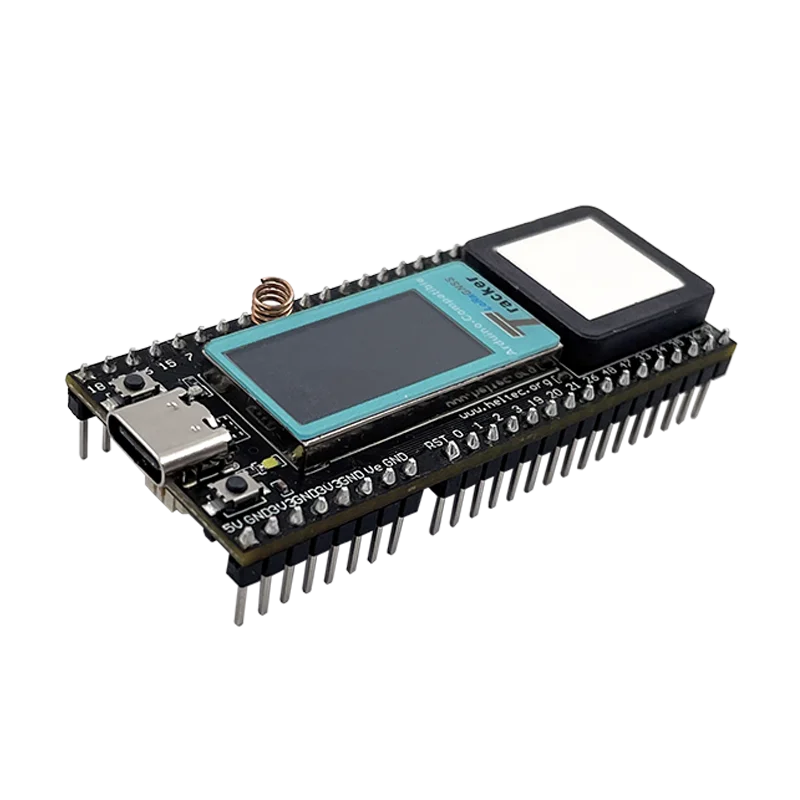

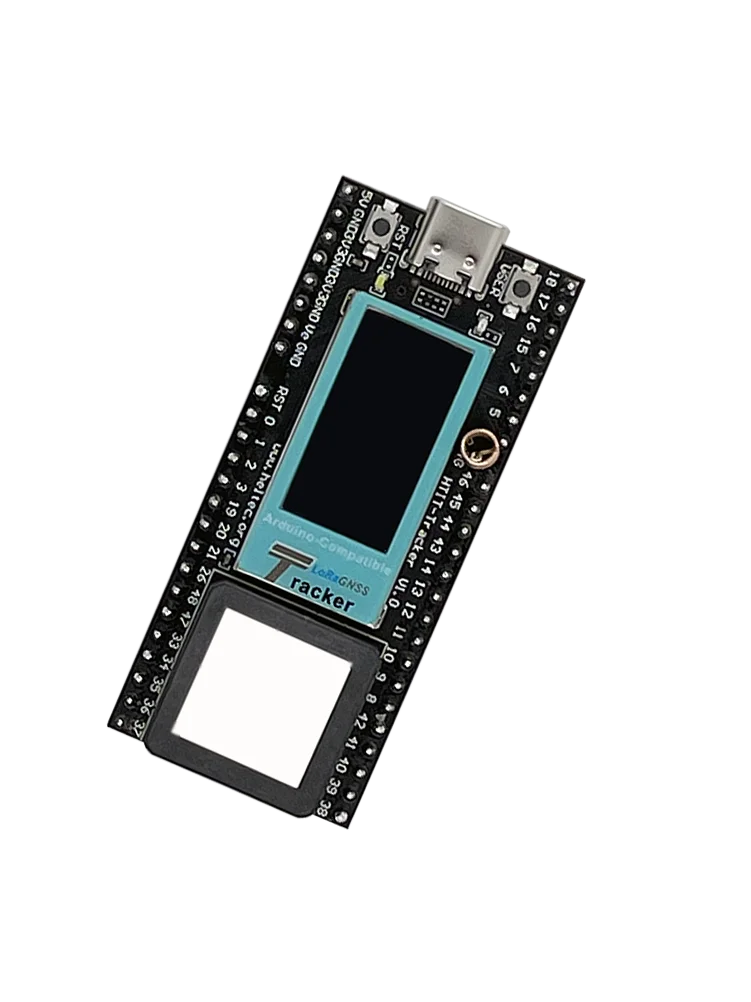

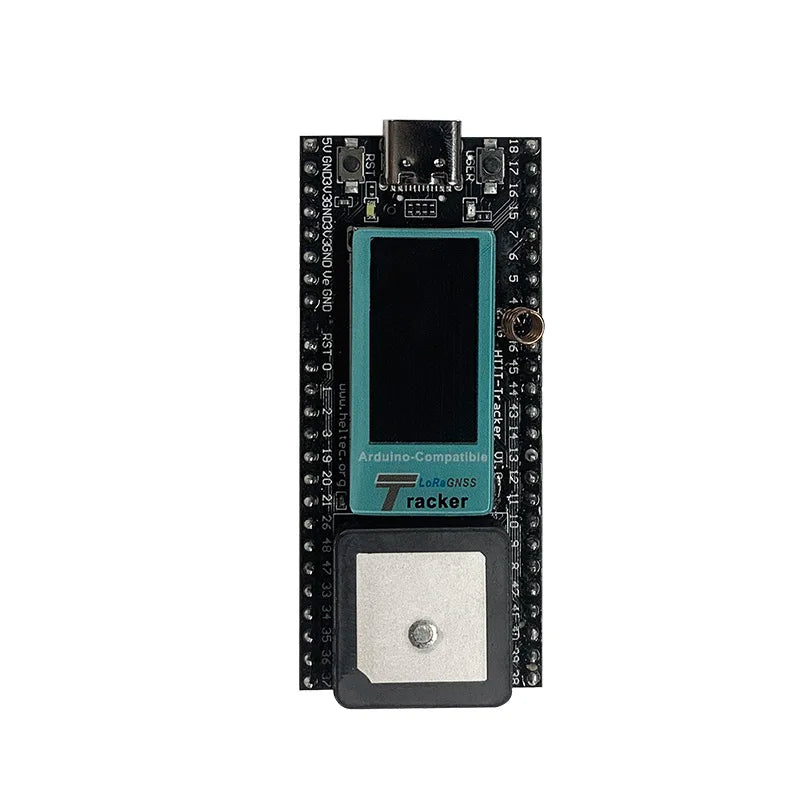

Heltec Dev-board: Wireless Tracker GNSS LoRa BLE

Support: Meshtastic

Why do we need Maker series products?

Summary

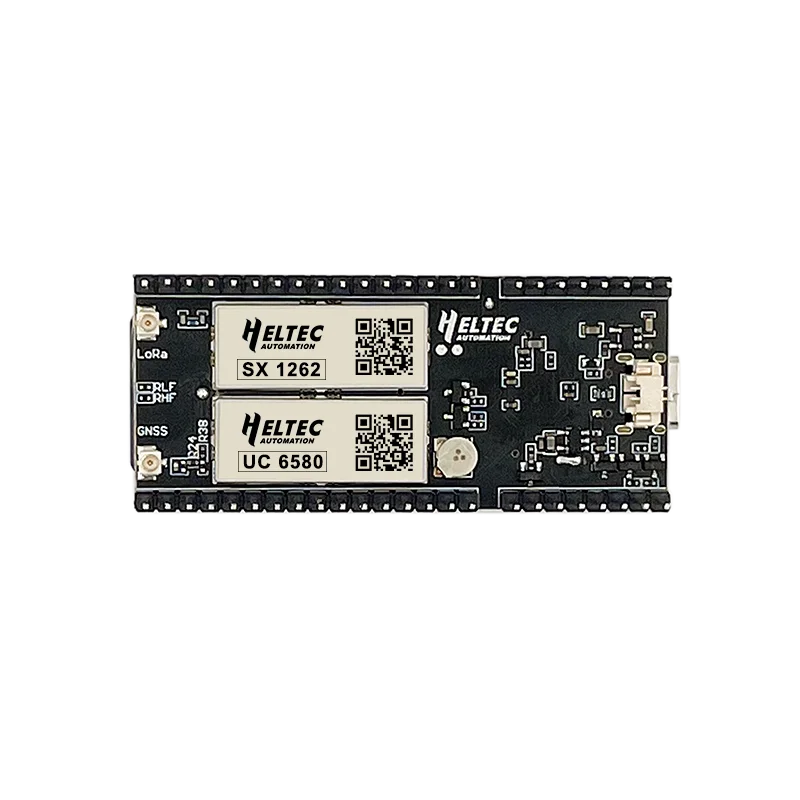

Wireless Tracker is a development kit based on ESP32-S3FN8. It integrates both SX1262 and UC6580 to provide fast GNSS solution for IoT. It can track any object and then upload that data wirelessly by Wi-Fi, Bluetooth, LoRa.

Wireless Tracker supports L1 + L5/L2, and supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning. It is perfectly compatible with Arduino, can be widely used in development such as bicycle sharing services, tracking pets or livestock, locating vehicles, tracking children, etc.

Wireless Tracker supports the following development methods:

Wireless Tracker is compatible with the following open-source projects:

• ESP32 Paxcounter

• Disaster Radio

• Meshtastic

• Tiny GS

• ...

We also provide a standard ESP32 Arduino LoRaWAN library:

• Heltec ESP32 LoRaWAN

This library is already included in the Heltec ESP32 Arduino Framework by default.

Resource

• Heltec ESP32 Arduino Framework(Include ESP32 Arduino LoRaWAN library)

• Heltec LoRaWAN test server based on TTS V3

• user manual document

• Hardware update logs
